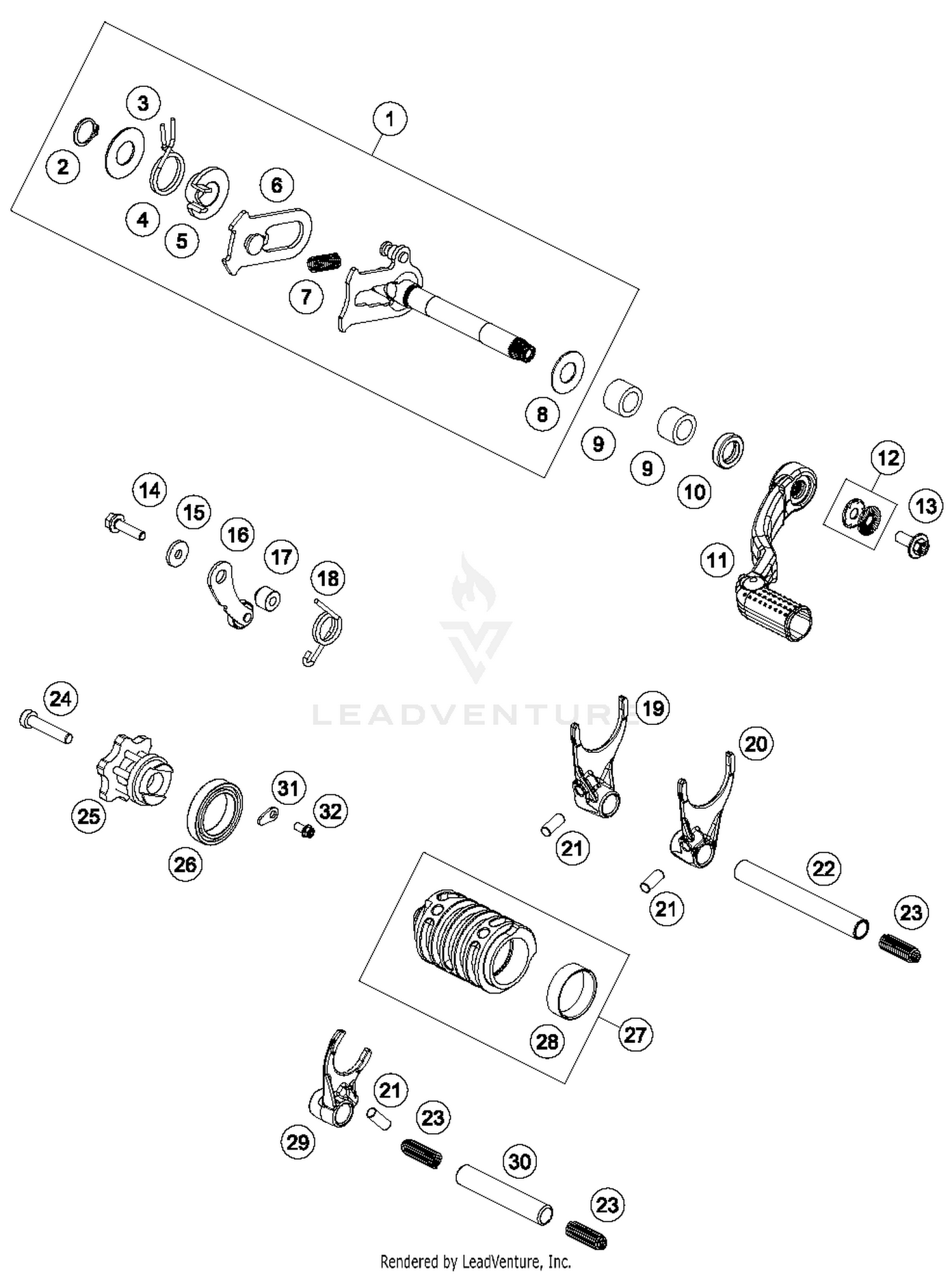

Shifting Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Shift shaft cpl.
47234005044
|
$75.56 | ||
|
Available to order. Add to View Price |
|||
|
#2
retaining ring DIN 471 14x1
0471140100
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOP DISK 14X30X1
54634050000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
RETURN SPRING 03
54834014000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING GUIDE
54634020000
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
SLIDING PLATE CPL.
79234008144
|
$41.79 | ||
|
Available to order. Add to View Price |
|||
|
#7
TENSIONING SPRING 0,8MM
56534013100
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
STOP DISK 12,1X25X1
49033013000
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
NEEDLE BEARING 12X18X12 2002
46034027000
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT SEAL RING 12X20X5 B
0760122050
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIFT LEVER CPL.
50434031000
|
$109.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
PAIR NORDLOCK WASHER M6
50233041500
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
HH collar screw M6x15 TX30
0024060156S
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
HH collar screw M5x20 TX30
0025050206
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER DIN7349-5X15X2
0349000050
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
LOCKING LEVER CPL.
55434024000
|
$47.84 | ||
|
Available to order. Add to View Price |
|||
|
#17
SLEEVE FOR LOCKING LEVER
54634052300
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
LOCATING LEVER SPRING 2,5MM'98
50334023000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Shift fork 1.-4. gear
47234002000
|
$32.22 | ||
|
Available to order. Add to View Price |
|||
|
#20
Shift fork 2.-3. gear
47234003000
|
$32.22 | ||
|
Available to order. Add to View Price |
|||
|
#21
NEEDLE ROLLER DIN5402 6X14,8
0402061480
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Shift rail 11.8x80x8mm
47234019000
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#23
PRESSURE SPRING 0,9MM
58038023200
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
AH SCREW DIN6912 M 6X30
0984060302
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Shift star cmpl
79234015000
Superseded by 79234015100
|
$30.35 | ||
|
Available to order. Add to View Price |
|||
|
#26
BALL BEARING 61805 C3
0625618050
|
$51.69 | ||
|
Available to order. Add to View Price |
|||
|
#27
Shift drum cpl.
47234012044
|
$64.89 | ||
|
Available to order. Add to View Price |
|||
|
#28
GLEITLAGER
47234012010
|
|||
|
Unavailable |
|||
|
#29
Shift fork 5.-6. gear
47234001000
|
$32.33 | ||
|
Available to order. Add to View Price |
|||
|
#30
SHIFTING RAIL MAIN SHAFT
46234020000
|
$16.60 | ||
|
Available to order. Add to View Price |
|||
|
#31
RETAINING PLATE
54634049000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
HH collar screw M6x12 TX30
0025060126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
