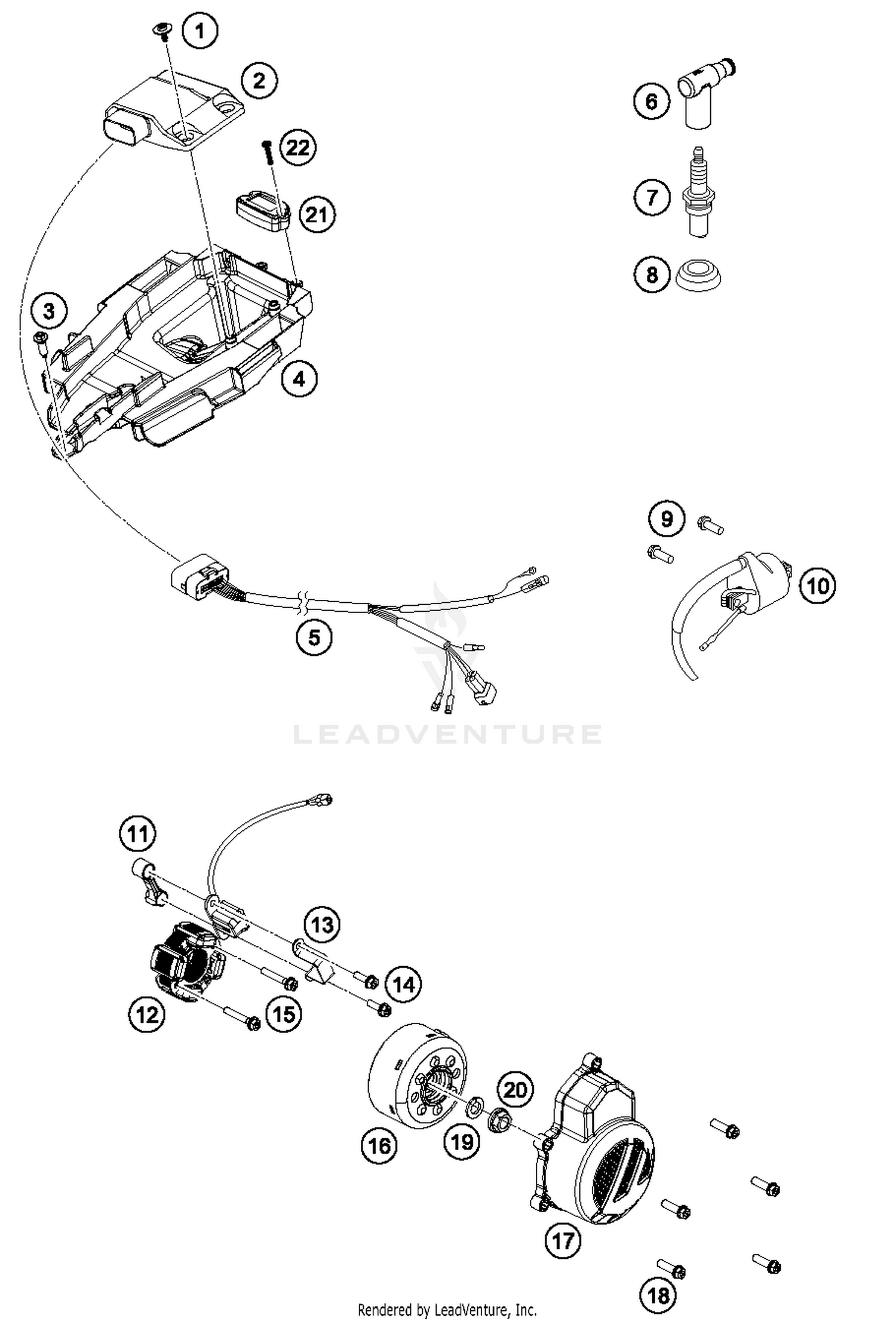

Ignition System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EJOT DELTA PT SCREW 45X12-Z
0081645121
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Dash board box 85 SX
47239031000
Superseded by 47239031100
|
$331.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW FOR PLASTIC K60X20 SW6
0017060205
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Electric compartment
47211094000
|
$17.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
WIRING HARNESS FOR CDI 2-ST.07
54839032200
|
$92.39 | ||
|
Available to order. Add to View Price |
|||
|
#6
Spark plug connector
47039090000
Superseded by 47039190000
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPARK PLUG
51539093000
|
$20.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
Sealing boot
50439091000
Superseded by 51739091000
|
$8.68 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR SCREW M6X18 ISA30
0026060186
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
IGNITIONCOIL ''IG5128''
59039006000
|
$77.87 | ||
|
Available to order. Add to View Price |
|||
|
#11
DISTANCE UNIT
50439013000
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#12
STATOR
50439004000
|
$265.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
PICKUP BRACKET
50439004010
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
HH COLLAR SCREW M 5X16 WS=6
0014050163
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
AH SCREW DIN0912-M 5X25
0912050253
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROTOR
50439005000
|
$238.36 | ||
|
Available to order. Add to View Price |
|||
|
#17
Ignitioncover
47230002000
|
$37.94 | ||
|
Available to order. Add to View Price |
|||
|
#18
HH collar screw M6x20 TX30
0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
LOCKING RING VSK 12
50230029012
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
Collar nut, M12x1, right
49030021000
Superseded by 49030021100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Hourmeter
78112020050
Superseded by 78112920100
|
$65.99 | ||
|
Unavailable |
|||
|
#22
Ejot delta PT screw 35X18
0081035183
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
