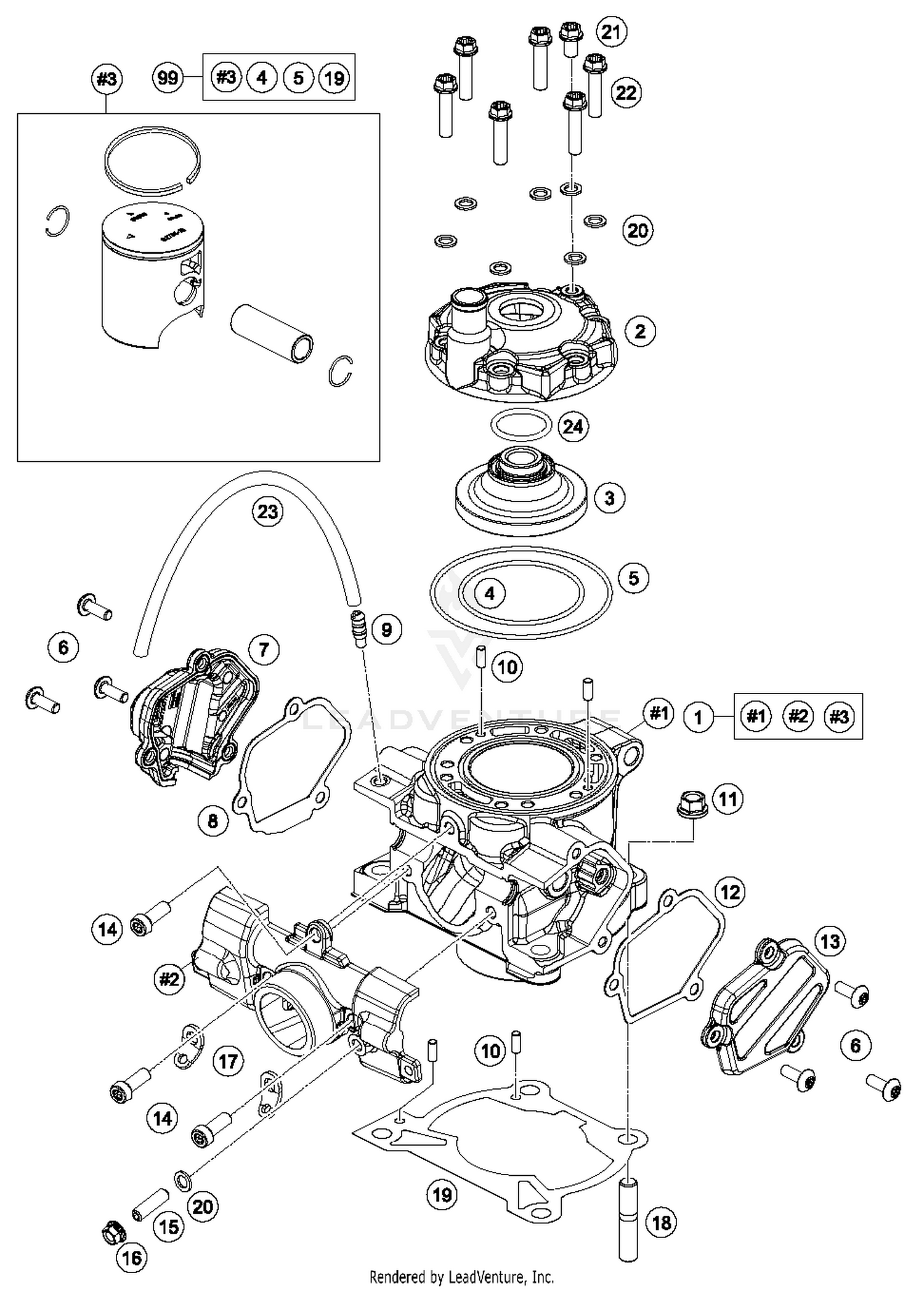

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Cylinder + piston 85SX/TC85
47230038000
|
$925.97 | ||
|
Available to order. Add to View Price |
|||
|
#2
Cylinder head
47230006000
|
$46.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
Combustion chamber inlay
47230060000
Superseded by 47230060100
|
$33.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING 54X2 VITON
0770540020
|
$12.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
O-RING 80,00X2,00 VITON
0770800021
|
$8.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SCREW M5X14 TORX 25 07
58605083014
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Exhaust regulation cover rh
4723700700033
|
$20.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
Exhaust ctrl cover gasket rhs
47237008000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
VACUUM CONNECTION M 6X1
58336020090
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
NEEDLE ROL.DIN5402 NRB 4X9,8
0402040980
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
flanged nut M8 WS10
46030045000
|
$9.23 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
Exhaust ctrl cover gasket lhs
47237006000
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
Exhaust regulation vover lh
4723700500033
|
$19.24 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHCS ISO 14580 M6x16
014580060166
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
THREAD PIN DIN0913-M 6X20
0913060203
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR NUT M6X1 SW8
77336088106
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#17
RETAINING PLATE
51005074000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
STUD DIN0835-M 8X25 10.9
0835080256
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Cylinder gasket
47230035020
|
$13.52 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
Cylinder gasket
47230035025
|
$14.51 | ||
|
Available to order. Add to View Price |
|||
|
#19
Cylinder gasket
47230035040
|
$16.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
Cylinder gasket
47230035050
|
$17.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
Cylinder gasket
47230035075
|
$11.43 | ||
|
Available to order. Add to View Price |
|||
|
#20
CU-SEAL RING DIN7603-6X10X1
0603061001
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
HH collar screw M6x10 TX30
0025060106
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
HH collar screw M6x25 TX30
0025060256
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
ENTLUFTUNGSSCHLAUCH 6X9X410MM
50307000410
|
|||
|
Unavailable |
|||
|
#24
O-RING 23,00X2,5 NBR 70 SH
07702300251
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#99
PISTON KIT GR.I 85 SX/TC/MC
00050000247
Superseded by 47230007110 I
|
$264.87 | ||
|
Available to order. Add to View Price |
|||
|
#99
PISTON KIT GR.II 85 SX/TC/MC
00050000248
Superseded by 47230007110 II
|
$264.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
