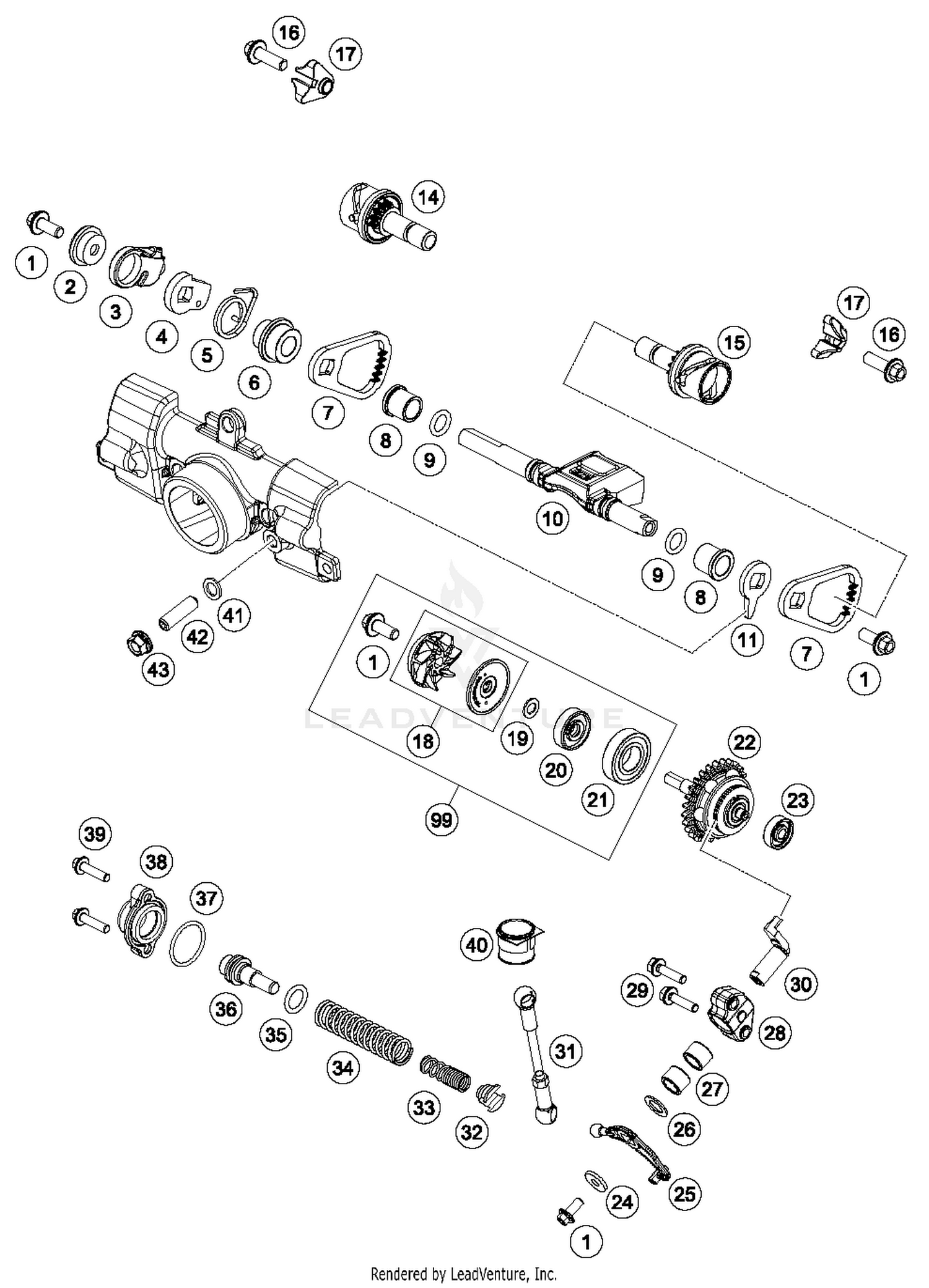

Exhaust Control Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HH COLLAR SCREW M 5X12 WS=6
0014050123
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
Bearing bush
47237068000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#3
adjusting lever
47237077000
|
$43.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
Attachment plate
47237036000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Overload spring
47237066000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Distance bush
47237076000
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
Gear segment
47237067000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
Eshaust flap bushing
47237023000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-Ring 8,00x2,0 viton
0770080201
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Exhaust valve
47237020000
|
$90.52 | ||
|
Available to order. Add to View Price |
|||
|
#11
Limit plate
47237085000
|
$18.36 | ||
|
Available to order. Add to View Price |
|||
|
#14
Control slide right cpl.
47237065033
Superseded by 47237165033
|
$68.39 | ||
|
Unavailable |
|||
|
#15
Control valve, left cmpl.
47237064033
|
$68.52 | ||
|
Available to order. Add to View Price |
|||
|
#16
HH COLLAR SCREW M 5X12 WS=6
0014050123
|
$2.99 | ||
|
Unavailable |
|||
|
#17
guide piece
47237079000
|
$23.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
WATER PUMP WHEEL CPL.
79235055044
|
$18.14 | ||
|
Available to order. Add to View Price |
|||
|
#19
PREFORMED WASHER
50435049000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHAFT SEAL RING 8X24X7 A DUO
0760082472
|
$9.01 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BALL BEARING 16002 C3
0625160020
|
$22.43 | ||
|
Available to order. Add to View Price |
|||
|
#22
Centrifugal force governor cmpl.
47237050044
Superseded by 47237050144
|
$184.90 | ||
|
Available to order. Add to View Price |
|||
|
#23
Ball bearing 696 DDM1 C3
0625006065
|
$10.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER DIN7349-5X15X2
0349000050
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Power valve control lever
47237056000
Superseded by 47237056100
|
$37.28 | ||
|
Available to order. Add to View Price |
|||
|
#26
SHIM WASHER DIN988 10x16x0,5
0988101605
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
needle sleeve HK 1010 10x14x10
0618101410
|
$7.03 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING SUPPORT
55437058000
|
$18.25 | ||
|
Available to order. Add to View Price |
|||
|
#29
HH COLLAR SCREW M5X25 ISA30
0025050256
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Adjusting lever 85/105
47237057000
|
$40.80 | ||
|
Available to order. Add to View Price |
|||
|
#31
Linkage cpl.
47237095044
|
$29.47 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPRING INSERT
54637071200
|
$10.66 | ||
|
Available to order. Add to View Price |
|||
|
#33
SUPPORT SPRING
50437069050
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Setting spring
47237072000
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#35
O-RING 12,37X2,62 NBR70
0770021120
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
Spring thrust bearing
54837075000
Superseded by 54837075100
|
$17.59 | ||
|
Unavailable |
|||
|
#37
O-RING 24,00X2,00 NBR70
0770240020
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
Closing cover
54637070100
Superseded by 55537035000
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
HH COLLAR SCREW M 5X20 WS=6
0014050203
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
Sealing element
47237091000
|
$8.57 | ||
|
Available to order. Add to View Price |
|||
|
#41
CU-SEAL RING DIN7603-6X10X1
0603061001
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
THREAD PIN DIN0913-M 6X20
0913060203
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
COLLAR NUT M6X1 SW8
77336088106
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#99
WATER PUMP REP. KIT
50435055015
|
$48.39 | ||
|
Available to order. Add to View Price |
|||
