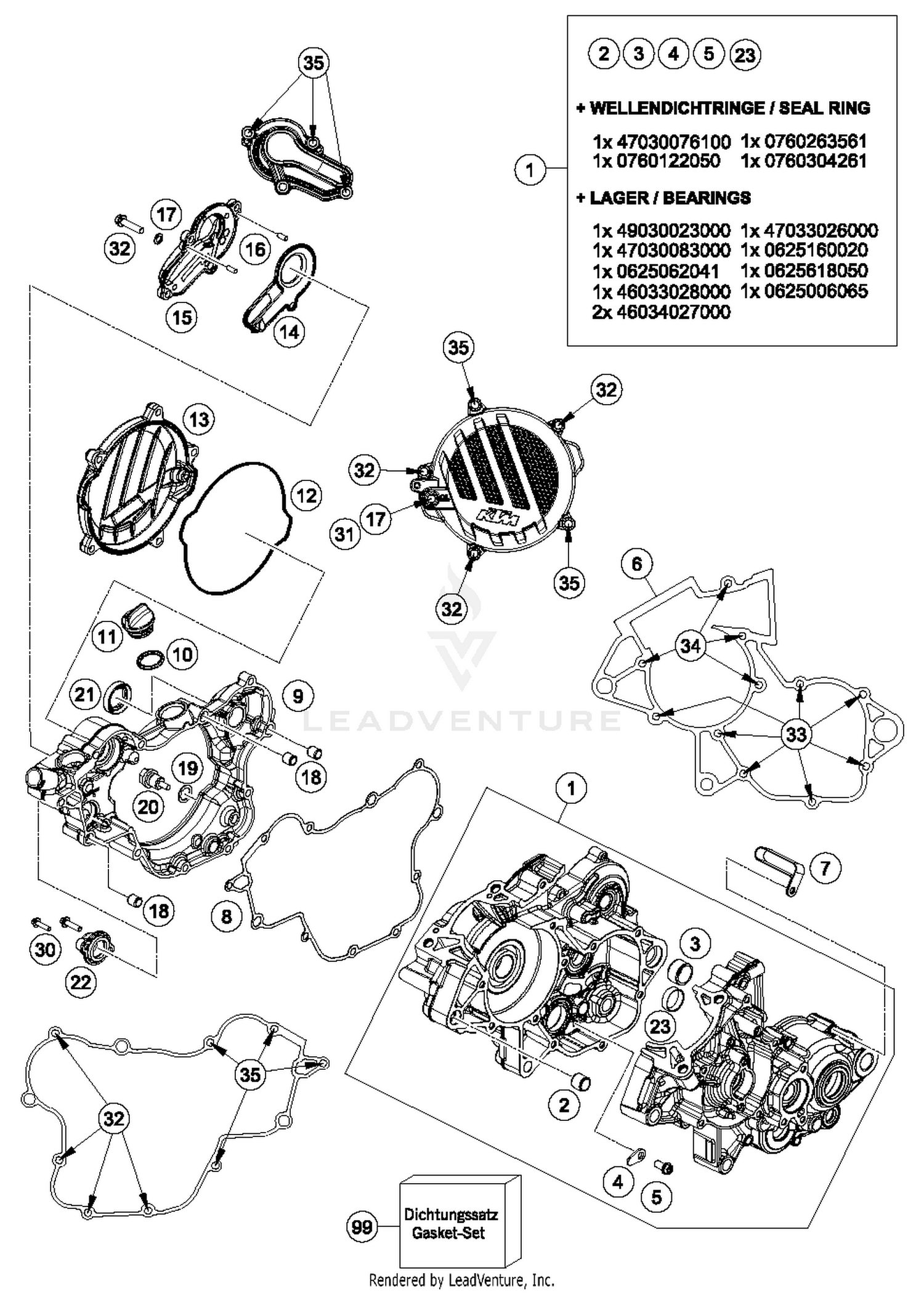

Engine Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Engine case cpl.
47230000044
Superseded by 47230100044
|
$1,178.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
DOWEL BUSHING 13,8X11X12
54630027000
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
Dowel, 21x12
54830027000
Superseded by 54830027100
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
RETAINING PLATE
54634049000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HH collar screw M6x12 TX30
0025060126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
Crankcase cover gasket
47230039000
|
$25.07 | ||
|
Available to order. Add to View Price |
|||
|
#7
Bracket for bleeding tube
55430090000
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#8
Gasket inner clutch cover
47230025000
|
$27.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
inner clutchcover
47230001000
Superseded by 47230001200
|
$171.26 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING 19,00X3,00 NBR
0770191015
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
OLEINFULLSCHRAUBE
79430020000
|
|||
|
Unavailable |
|||
|
#12
Clutchcover gasket
47230027000
|
$14.51 | ||
|
Available to order. Add to View Price |
|||
|
#13
Clutch cover cpl.
4723002600015
|
$71.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
Seal with support plate
47235053000
Superseded by 47235053100
|
$29.91 | ||
|
Available to order. Add to View Price |
|||
|
#15
Waterpump cover
47235052000
|
$19.68 | ||
|
Available to order. Add to View Price |
|||
|
#16
NEEDLE ROL.DIN5402 NRB 4X9,8
0402040980
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CU-SEAL RING DIN7603-6X10X1
0603061001
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
DOWEL 9,8 X7X10
49030090100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CU-SEAL RING DIN7603-12X18X1,5
58038022000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
oildrain plug with magnet
58030021100
|
$13.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SHAFT SEAL RING 19X30X7 B
0760193070
|
$6.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
Closing cover
54637070100
Superseded by 55537035000
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BUSHING IDLER GEAR
50433024050
|
$30.79 | ||
|
Available to order. Add to View Price |
|||
|
#30
HH COLLAR SCREW M 5X20 WS=6
0014050203
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
HH collar screw M6x10 TX30
0025060106
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
HH collar screw M6x25 TX30
0025060256
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
HH COLLAR SCREW M6X45 TX30
0025060456
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
HH collar screw M6x50 TX30
0025060506
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
HH collar screw M6x60 TX30
0025060606
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#99
Seal Kit Engine 85
47230099000
Superseded by 47230099001
|
$265.89 | ||
|
Available to order. Add to View Price |
|||
