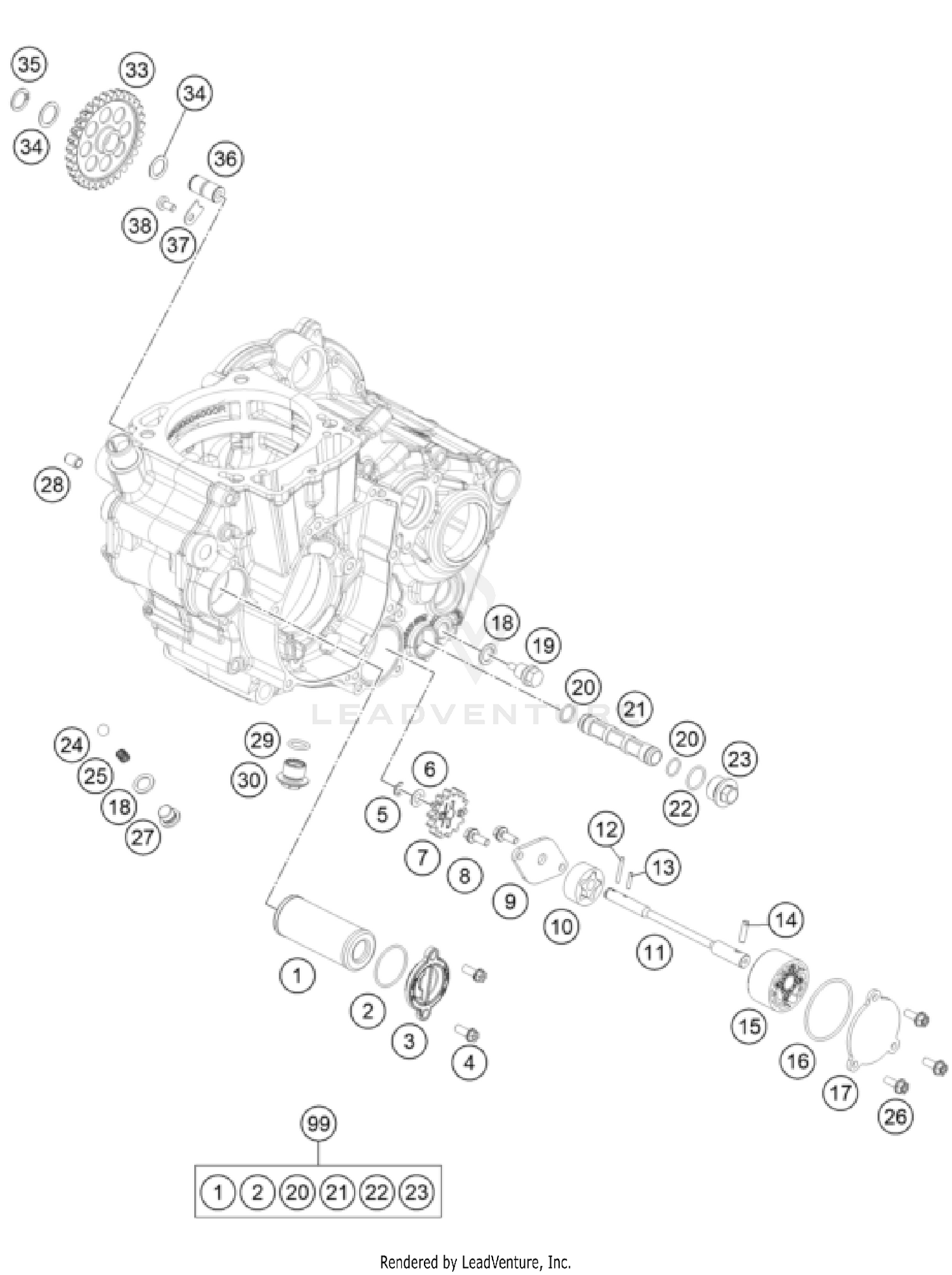

Lubricating System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL FILTER
77338005100
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
O-RING 33,05X1,78
07703305178
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
OIL FILTER COVER 08
77338041200
|
$13.74 | ||
|
Available to order. Add to View Price |
|||
|
#4
HH collar screw M6x16 TX30
0025060166
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
TAB WASHER DIN6799-RS 6,0
0799060000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
STOP DISK 8,1 X 15 X 0,5
58038007755
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Oil pump gear
77038001200
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
Hex coll. screw M5x14 ISA30 self-locking
0025050146S
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Oil pump cover
A48038003000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
OILPUMP ROTOR-SET 12MM CPL.
59038011112
|
$24.41 | ||
|
Available to order. Add to View Price |
|||
|
#11
Oil pump shaft
A48038002000
|
$38.16 | ||
|
Available to order. Add to View Price |
|||
|
#12
NEEDLEROL.DIN5402 NRA 2,5X19,8
0402251980
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NEEDLE ROLLER DIN5402 2,5X11,8
0402251180
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
needle roller NRB 4x15.8 G2
0402041580
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
ROTOR SET 22MM
61238011100
|
$20.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING 44,00X2,00 VITON
0770440020
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
OIL PUMP COVER LEFT
79238004000
|
$16.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
CU-SEAL RING DIN7603-12X18X1,5
58038022000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
oildrain plug with magnet
58030021100
|
$13.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
O-RING 12,5X1,5 VITON V75
07701250151
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
Oil screen
59038016200
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING 17,17X1,78 GLO
0770020170
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
PLUG M20X1,5 WS=13
59038017100
|
$9.23 | ||
|
Available to order. Add to View Price |
|||
|
#24
BALL DIN5401-9
0401090003
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Compression spring
A48038026000
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Hex coll. screw M5x14 ISA30 self-locking
0025050146S
|
$1.99 | ||
|
Unavailable |
|||
|
#27
PLUG SCREW SAS M12X1,5
78036024000
|
$11.43 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
Dowel, 6x8x11.5
59030023100
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING 12X2 VITON GREEN
0770012021
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Screw plug M16x1.5
0900001600200
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#33
Oil pump intermediate gear 31T
A48038006033
|
$39.26 | ||
|
Available to order. Add to View Price |
|||
|
#34
SHIM WASHER DIN0988-12X18X0,50
0988121805
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
retaining ring DIN 471 12x1
0471120010
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BUSHING PIN
77038013100
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#37
AXIAL-CIRCLIP
77238061050
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
Oval head screw DIN 7985-M5x10-8.8
0018050103S
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#99
OILFILTER SERVICEKIT SX-F
79438015010
|
$67.31 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
