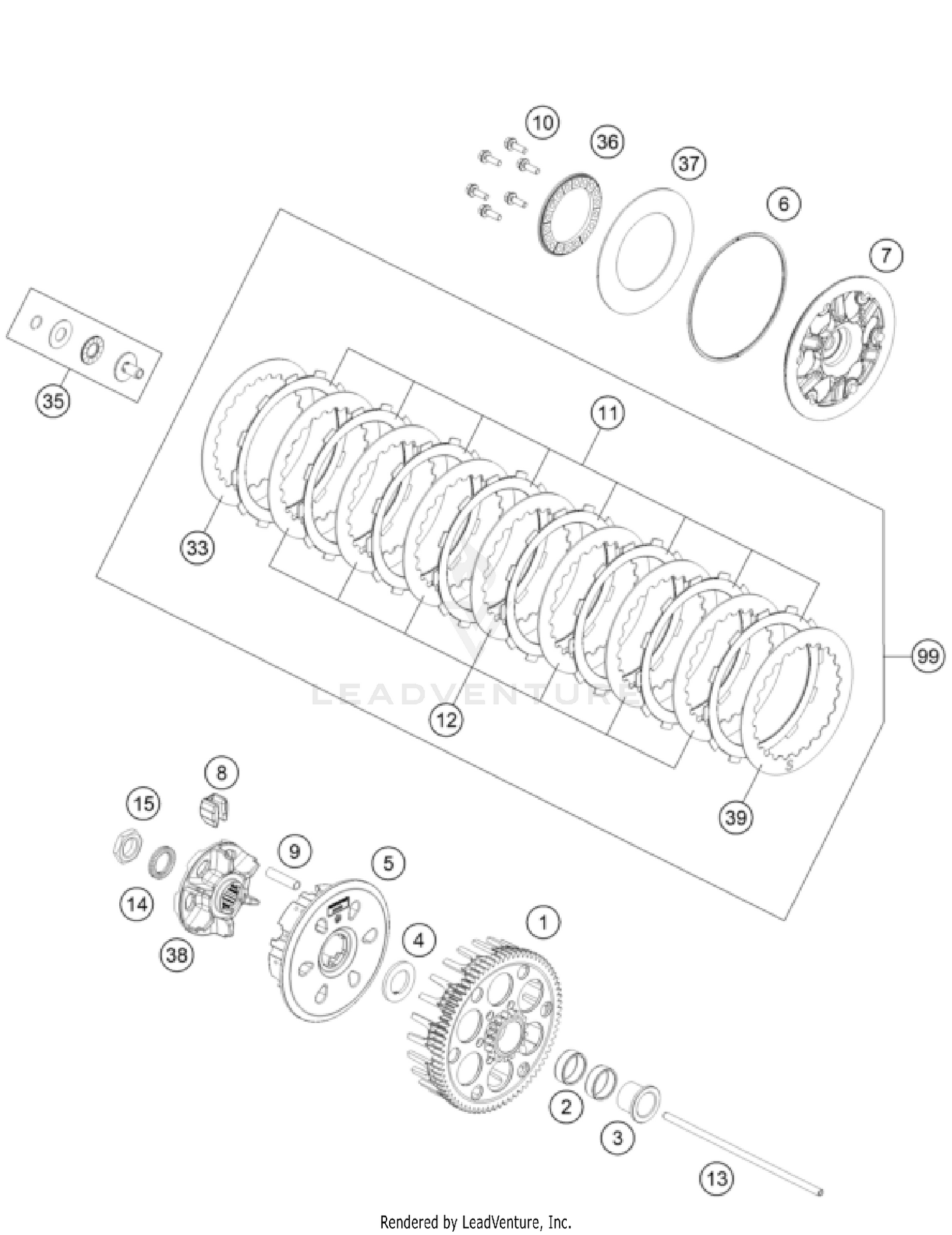

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Outer clutch hub
A46032001072
|
$224.72 | ||
|
Available to order. Add to View Price |
|||
|
#2
NEEDLE BEAR K 25X29X10
0405252910
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
Collar sleeve
A46032015000
|
$16.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER 22 X 36,5 X 3
78932009000
|
$9.12 | ||
|
Available to order. Add to View Price |
|||
|
#5
Inner clutch hub
78132002400
|
$120.66 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER 112X118X1.5
78132013000
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
Clutch pressure plate
79432003100
|
$27.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPING RUBBER
78132025100
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Sleeve, 7.95x38
77232004000
Superseded by 77232104000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HH collar screw M5x16 TX30
0025050166
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
Lining disc 1,95mm
79532011000
|
$26.39 | ||
|
Available to order. Add to View Price |
|||
|
#12
INTERMEDIATE DISC 1,4MM 2002
59032010200
|
$12.86 | ||
|
Available to order. Add to View Price |
|||
|
#13
Push rod
A48032054000
|
$8.90 | ||
|
Available to order. Add to View Price |
|||
|
#14
Wedge lock washer 19.5x29x3.4
0252012002900
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Hex nut DIN0936-M18x1.5 right
0936181506
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
INTERMEDIATE DISC 1MM 2002
59032010100
|
$11.54 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
PRESSURE PIECE CPL.
78132057144
|
$36.18 | ||
|
Available to order. Add to View Price |
|||
|
#36
Spring retainer
78132006200
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#37
BELLEV. SPR. 71X115X1,6IO=4.74
78932005000
|
$73.69 | ||
|
Available to order. Add to View Price |
|||
|
#38
Clutch center
78132002211
|
$78.97 | ||
|
Available to order. Add to View Price |
|||
|
#39
INTERMEDIATE DISC 1MM
78932010000
|
$14.18 | ||
|
Available to order. Add to View Price |
|||
|
#99
CLUTCH DISC PACKAGE
79532010033
|
$246.06 | ||
|
Available to order. Add to View Price |
|||
