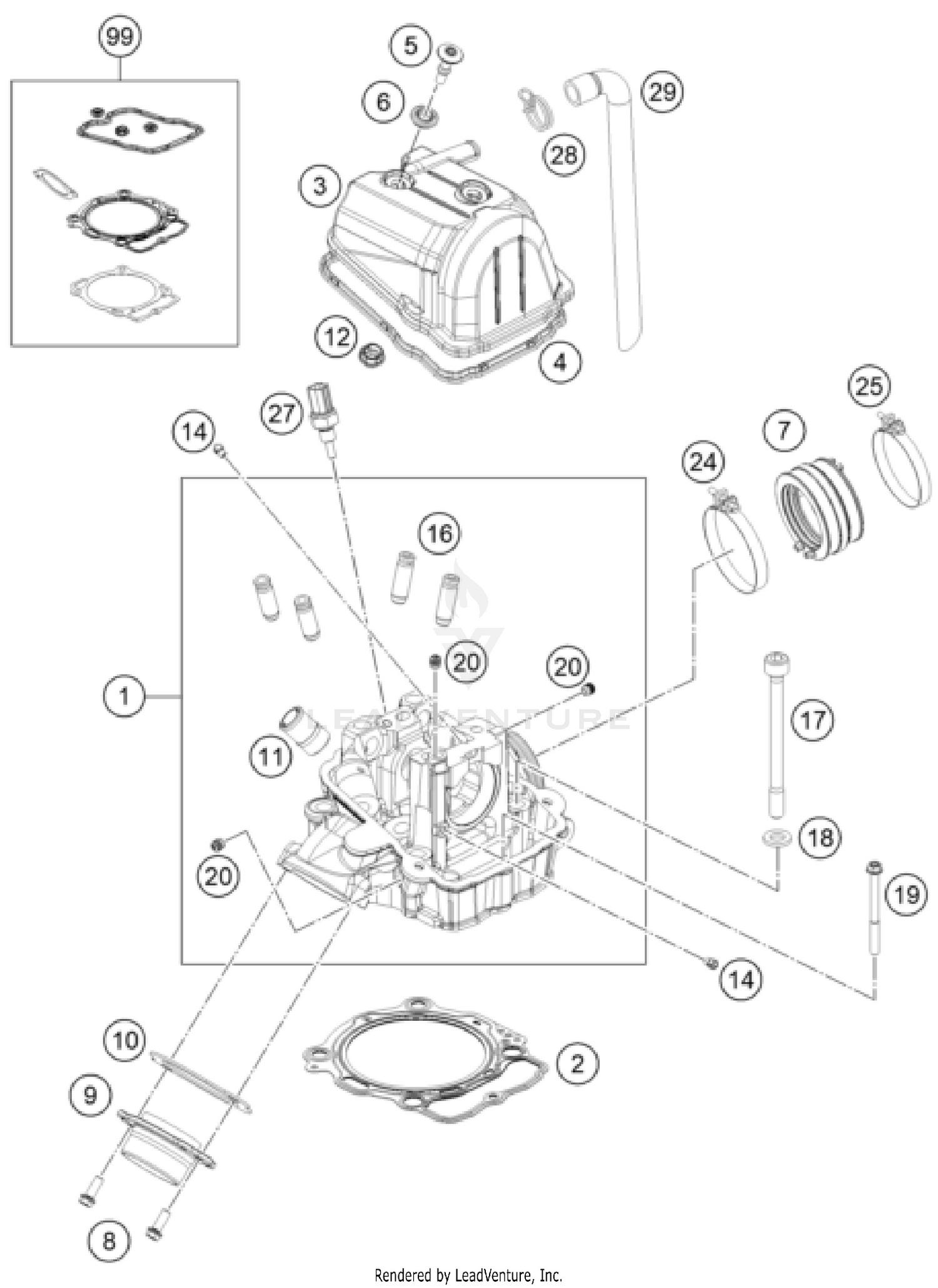

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
cylinder head cpl.
A48036020044
|
$566.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER HEAD GASKET (DN95)
79430036010
|
$89.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
Valve cover
A48036052000C1
|
$31.67 | ||
|
Available to order. Add to View Price |
|||
|
#4
Valve cover seal
A48036053000
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#5
Valve cover screw
79136054000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Rubber seal for collar screw
79136054050
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
rubber sleeve
79536044000
|
$33.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
HH collar screw M6x16 TX30 SL
0025060166S
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Exhaust system flange
78136139100
|
$43.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
Exhaust gasket
79536041000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW IN NOZZLE M20X1,5
58030010200
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#12
valve cover gasket
79536053150
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
oil jet 70 M5
60030063070
|
$10.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
valve guide intake
79536025001
Superseded by 79536125001
|
$28.92 | ||
|
Available to order. Add to View Price |
|||
|
#17
Cylinder head bolt
79530044000
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#18
washer 19x10.5x2.5
77336089010
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HH COLLAR SCREW M6X75 TX30
0025060756
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SCREW PLUG
59030296000
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE CLAMP GEMI 63MM 05
61036047000
|
$8.90 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOSE CLAMP GEMI 58MM
77236048000
|
$14.18 | ||
|
Available to order. Add to View Price |
|||
|
#27
water temperature sensor
79435047000
|
$27.93 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP YDNAC 10173 (18MM)
58431082300
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
ENGINE BREATHER TUBE
79030087000
|
$37.17 | ||
|
Available to order. Add to View Price |
|||
|
#99
gasket kit cylinder MX 450
A48030097000
|
$129.46 | ||
|
Available to order. Add to View Price |
|||
