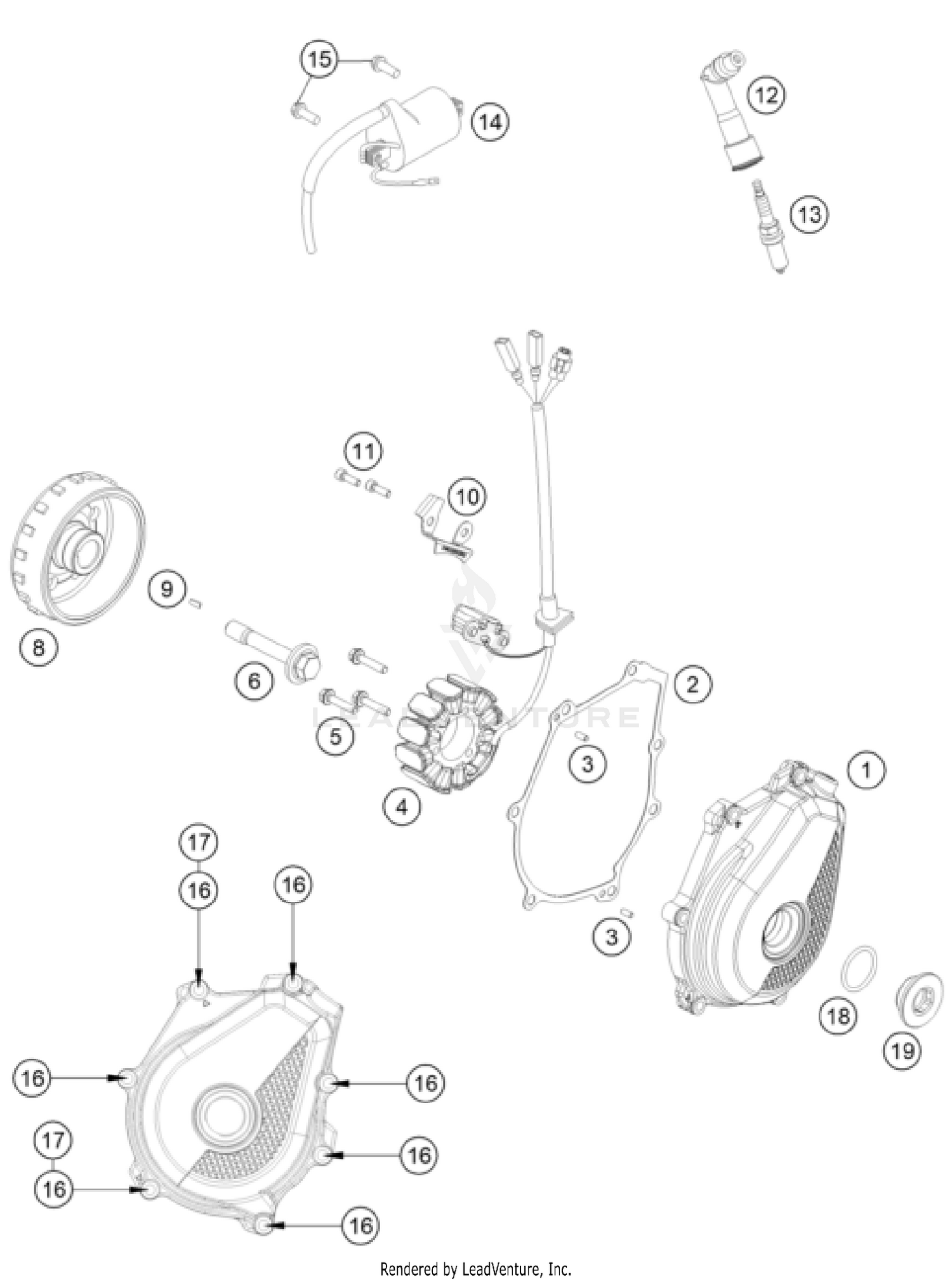

Ignition System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Ignition cover
A48030002000C1
|
$111.86 | ||
|
Available to order. Add to View Price |
|||
|
#2
Ignition cover gasket
A48030040000
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
NEEDLE ROL.DIN5402 NRB 4X9,8
0402040980
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Stator
79239004200
|
$240.23 | ||
|
Available to order. Add to View Price |
|||
|
#5
Bolt DIN 6912 - M5x25 SS
0012050253S
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
FLYWHEEL SCREW
77339010100
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#8
Rotor
79439005100
|
$501.59 | ||
|
Available to order. Add to View Price |
|||
|
#9
WOODRUFF KEY DIN6888-3X3,7
0888030037
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Cable retainer
A46030002050
|
$10.66 | ||
|
Available to order. Add to View Price |
|||
|
#11
Cap head screw DIN912 - M5x16 - 8.8
0912050163S
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Spark plug connector
79539090000
Superseded by 79539190000
|
$60.27 | ||
|
Unavailable |
|||
|
#13
spark plug NGK LMAR9AI-10
77839093000
|
$26.72 | ||
|
Unavailable |
|||
|
#14
IGNITIONCOIL IG3826 KOKUSAN'96
58439006000
|
$88.76 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR SCREW M6X18 ISA30
0026060186
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HH collar screw M6x25 TX30
0025060256
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CU-SEAL RING DIN7603-6X10X1
0603061001
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
o-ring 24.00x2.50 Viton
07700240251
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW PLUG M24X1,5
7723000216030
|
$43.11 | ||
|
Available to order. Add to View Price |
|||
