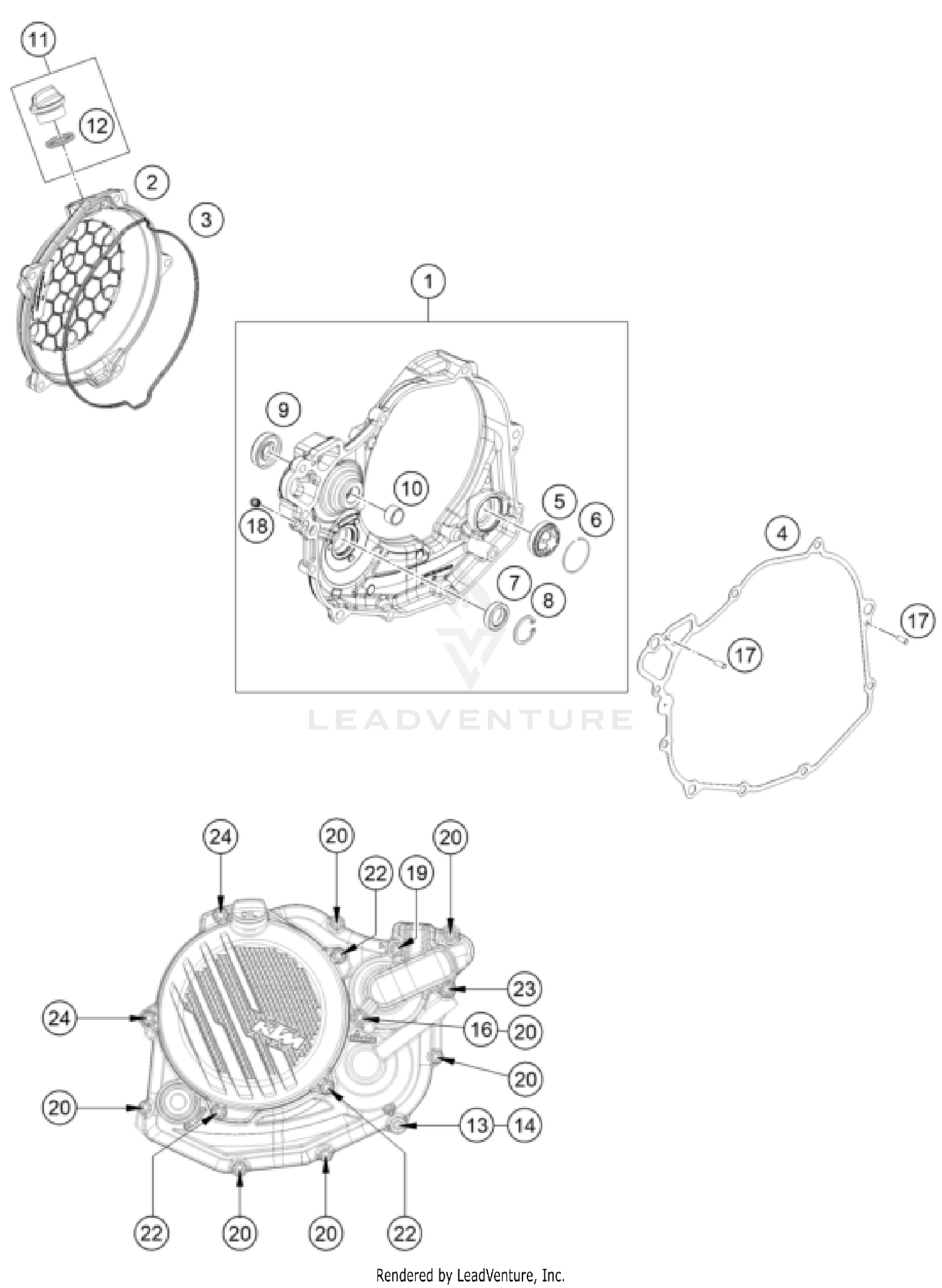

Clutch Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
clutch cover cpl.
A48030001044
|
$148.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
Clutch cover outside
A48030026000C1
|
$60.71 | ||
|
Available to order. Add to View Price |
|||
|
#3
Clutch cover gasket external
A48030027000
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#4
Inner clutch cover gasket
A48030025000
|
$17.26 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SIGHT GLASS
59030019200
|
$25.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CIRCLIP OIL LEVEL GLASS 03
61030019050
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
radial shaft seal 14x24x6 B
0760142460
|
$10.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CIRCLIP DIN0472-24X1.2
0472024120
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SHAFT SEAL RING 12X30X7 PTFE
0760123073
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
FRICTION BEAR. BUSH BALANC.SH.
79430057010
|
$33.87 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL FILLER CAP M24x3 WITH O-R
79430020033
|
$9.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
O-RING 19,00X3,00 NBR
0770191015
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
COPPER GASK.DIN7603- 8,2X13X1
0603082131
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
Screw, M8x20 SW=8 8.8
0000150802000
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CU-SEAL RING DIN7603-6X10X1
0603061001
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NEEDLE ROL.DIN5402 NRB 4X9,8
0402040980
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SCREW PLUG
59030296000
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#19
HH collar screw M6x20 TX30
0025060206S
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
HH collar screw M6x25 TX30
0025060256
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
HH collar screw M6x20 TX30
0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
HH COLLAR SCREW M6X45 TX30
0025060456
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
HH collar screw M6x55 TX30
0025060556
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
