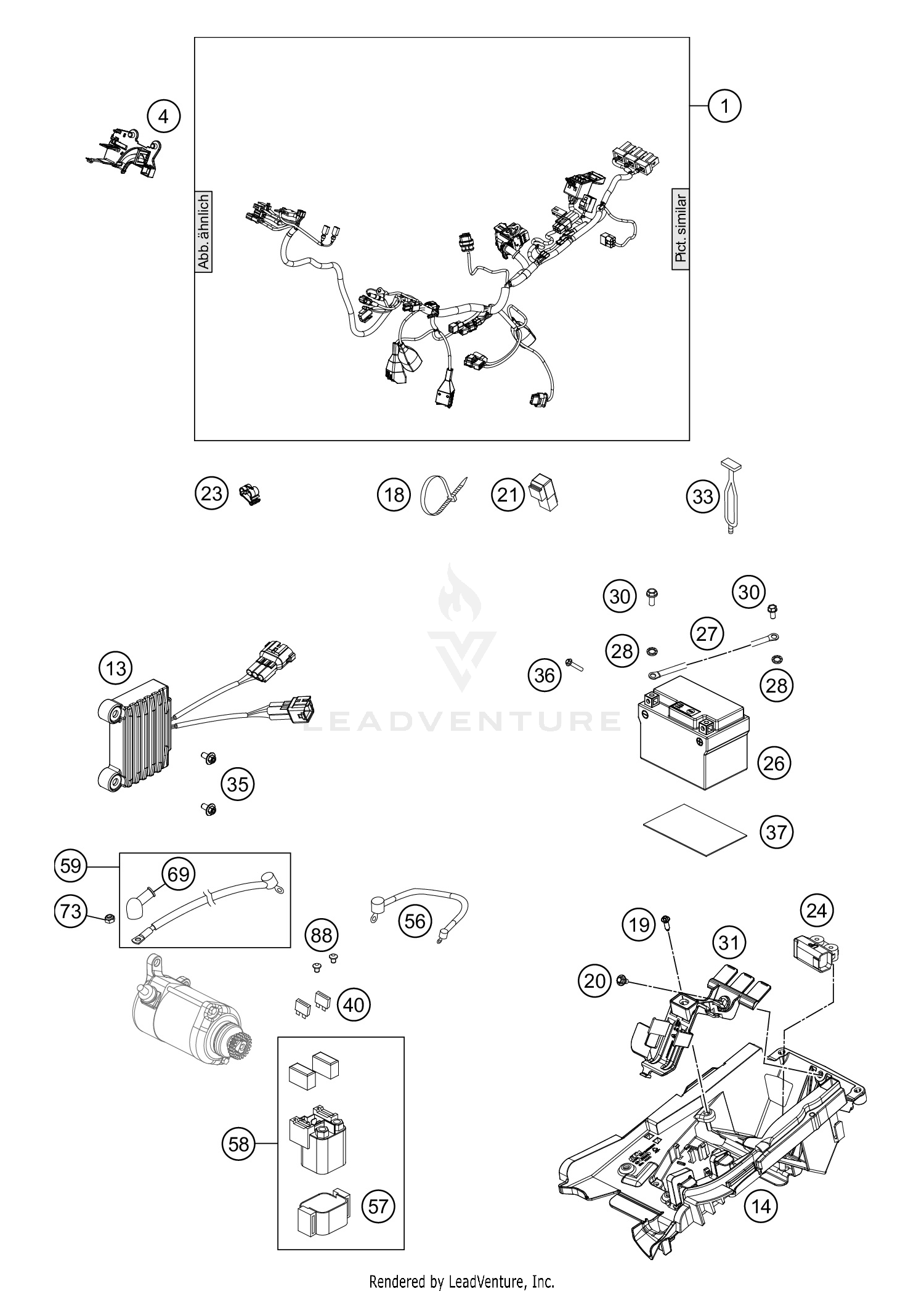

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Main wiring harness US
51711175000
|
$600.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
Connector support
79711083000
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
VOLTAGE REGULATOR
79611034000
|
$226.26 | ||
|
Available to order. Add to View Price |
|||
|
#14
Battery compartment
55711055000
Superseded by 55711155000
|
$34.31 | ||
|
Available to order. Add to View Price |
|||
|
#18
CABLE TIE 140/2,5MM BLACK
44011076140
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CABLE TIE 200/3,6MM BLACK
44011076200
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CABLE TIE 300/4,8MM BLACK
44011076305
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCREW F. PLASTIC K60X20AL SW6
0017060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SPECIAL SCREW M6X12,5 WS=8
59001092050
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
RELAY CM1A-R-12V-H80 07
61111057000
|
$19.79 | ||
|
Available to order. Add to View Price |
|||
|
#23
CABLE GUIDE
83013026000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
ROLLOVER SENSOR 05
61041088000
|
$79.63 | ||
|
Available to order. Add to View Price |
|||
|
#26
battery 12V/24Wh
79111053000
|
$195.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
GROUND CABLE D=6MM L=140MM '97
58411097100
|
$10.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
CONTACT WASHER M6 VSV-K6
58411098100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
HH collar screw M5x12 TX30
0025050126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
battery support
79711056000
|
$10.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
Holder control unit
55641030000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
COLLAR SCREW M6X12 TX
0023060123
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
SCREW FOR PLASTIC K60X20 SW6
0017060205
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
METAMOLL 90X45X3MM 03
59003001099
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
FUSE 20 A
58011109120
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
Batteriekabel
25111059050
|
$24.30 | ||
|
Available to order. Add to View Price |
|||
|
#57
BRACKET RUBBER F.STARTRELAY 07
58211058050
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#58
STARTER RELAY 12V '99
58211058000
|
$85.46 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#59
starter cable
51711059000
|
$38.71 | ||
|
Available to order. Add to View Price |
|||
|
#69
PROTECTION CAP F. STARTER ENG.
77240099000
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#73
SELF LOCK. NUT DIN0985-M 6
0985060003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#88
AH OVAL SCREW ISO 7380 M 6X8
0902060083
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
