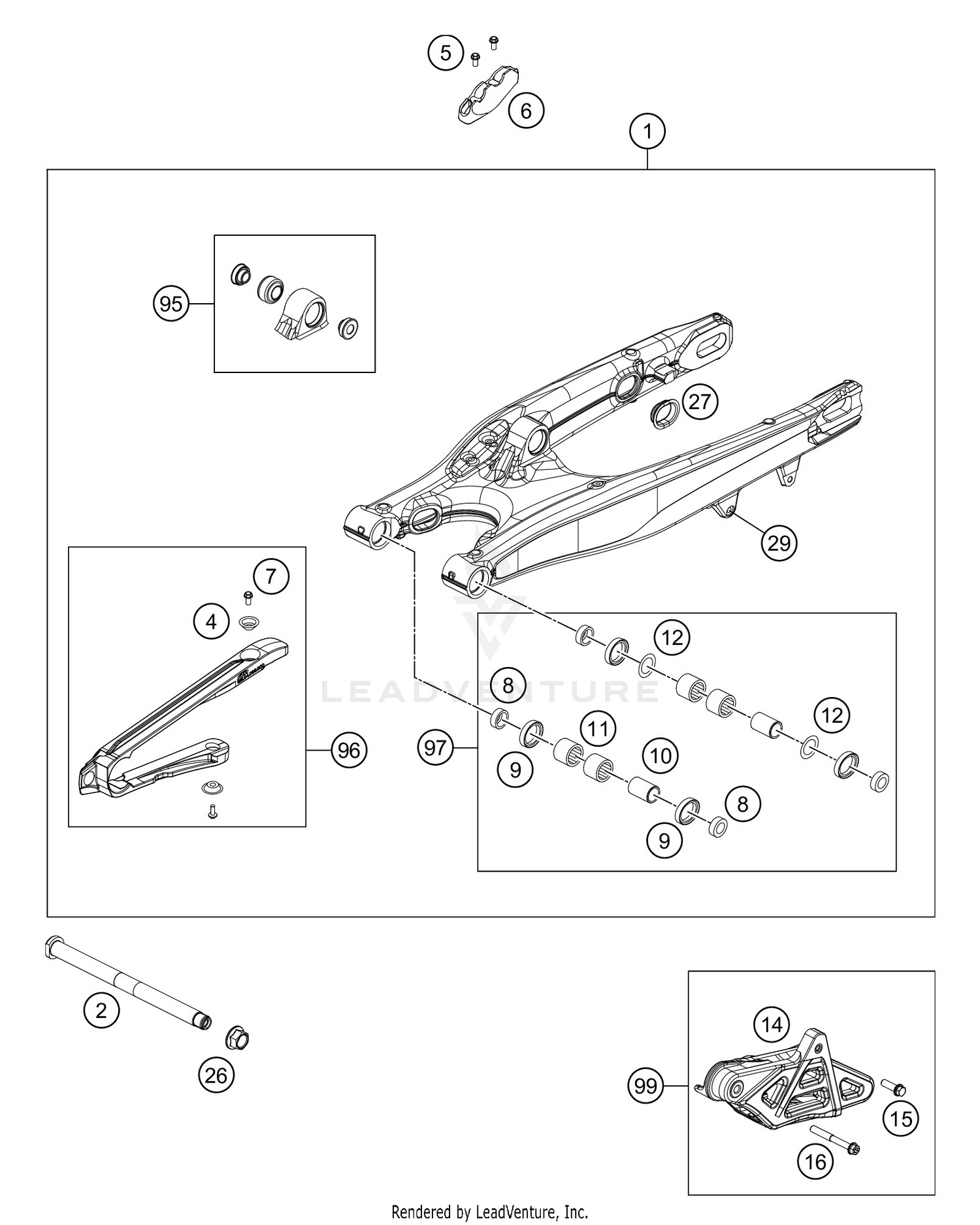

Swing Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWING ARM CPL. PDS 2017
79604030044
|
$1,026.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
Swingarm pivot
79004037000
Superseded by 79004037100
|
$92.83 | ||
|
Available to order. Add to View Price |
|||
|
#4
Chain slider bushing
77304066050
Superseded by 77304066150
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
EJOT SPIRAL SCREW SF M5X10-K
0009050106
|
$2.99 | ||
|
Unavailable |
|||
|
#6
BRAKE HOSE GUIDE LOWER 07
77313047000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPECIAL SCREW M6X13 WS=8 10.9
59009062013
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SUPPORT F. SHAFT SEAL RING 16
77704034000
|
$15.83 | ||
|
Available to order. Add to View Price |
|||
|
#9
radial shaft seal 25x32x7
0760253270
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING SLEEVE 17X22X38,7 03
59404032000
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
|
#11
NEEDLEBEAR HK2212V 22/28/12 MB
0618222812
|
$11.54 | ||
|
Available to order. Add to View Price |
|||
|
#12
stop disc 22.2/31.7/1
54603036000
Superseded by 63533032000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
CHAIN GUIDE EXC
78104070100
|
$64.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SPECIAL SCREW M6X19 WS=8 10.9
59009062019
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
HH COLLAR SCREW M6X45 TX30
0025060456
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
Nut with flange M16X1,5 WS=19 03
54804038000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLOSING COVER
77204041000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PRESS IN NUT M6 STEEL ZINC
54603055051
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#95
PIVOT BEARING+BUSH. PDS '17
79604090044
|
$79.41 | ||
|
Available to order. Add to View Price |
|||
|
#96
CHAIN SLIDING GUARD KIT 11-15
51504066044
|
$33.10 | ||
|
Available to order. Add to View Price |
|||
|
#97
Swing arm bearing repair kit
78904230010
Superseded by 79004030210
|
$153.00 | ||
|
Available to order. Add to View Price |
|||
|
#99
CHAIN GUIDE KIT EXC 14-15
78104070010
|
$54.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
