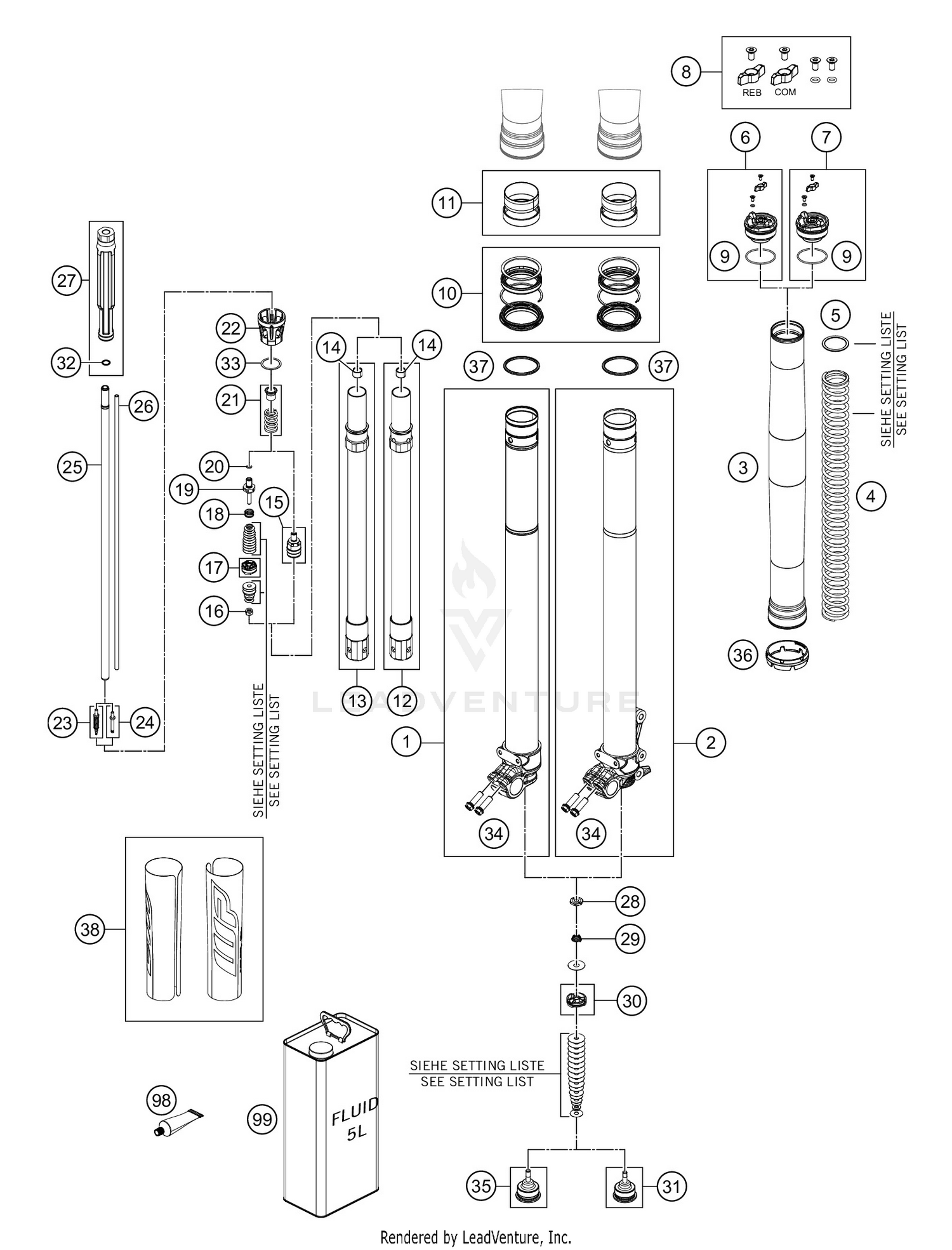

Front Fork Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Axleclamp OC right cpl. with tube
48601933S1
|
$465.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
Axleclamp OC left cpl. with tube
48601932S1
|
$465.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
fork outer tube 49.13x577 dt54 db60
48601671
Superseded by 48602096
|
$302.82 | ||
|
Available to order. Add to View Price |
|||
|
#4
main spring (43.8) 3.6-470 fork cpl
91410098S
Superseded by S809900029S0000
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
main spring (43.8) 3.8-470 fork cpl.
91410099S
Superseded by S809900030S0000
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
main spring (43.8) 4.0-470 fork cpl.
91410100S
Superseded by S809900031S0000
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
main spring (43.8) 4.2-470 fork cpl.
91410101S
Superseded by S809900032S0000
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
main spring (43.8) 4.4-470 fork cpl.
91410102S
Superseded by S809900033S0000
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
main spring (43.8) 4.6-470 fork cpl.
91410103S
Superseded by S809900034S0000
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
main spring (43.8) 4.8-470 fork cpl.
91410104S
Superseded by S809900035S0000
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
main spring (43.8) 5.0-470 fork cpl.
91410105S
Superseded by S809900036S0000
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
main spring (43.8) 5.2-470 fork cpl.
91410106S
Superseded by S809900037S0000
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Washer 35x43x2,5 plastic
48600456
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
Preload bush 35x43x3,5
48600457
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
Washer 35x43x1,5 plastic
48600458
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#6
screw cap M51x1,5 rebound cpl.
48602028S4
|
$199.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
screw cap M51x1.5 compression cpl.
48602028S3
|
$199.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
Adjuster Kit screw cap
RP10021
Superseded by RP10021T
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-ring 46x2 NBR70 siliconized yellow
48600048
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
Seal kit 48mm SKF black
RP10012
Superseded by RP10048T
|
$78.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
Guide bushing set fork 48mm
R14047
Superseded by R14047T
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Tube, including screw sleeve with hole
48600763S5
|
$191.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
Tube with screwsleeve
48600763S6
|
$185.34 | ||
|
Available to order. Add to View Price |
|||
|
#14
Guide bushing 12x14x10
48600430
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
Tap compression cpl.
48601843S3
|
$64.78 | ||
|
Available to order. Add to View Price |
|||
|
#16
Nut M6x0,5 h6,5 WAF10 rebound
40540486
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#17
Midvalve piston assembly d23
48602002S
|
$21.66 | ||
|
Available to order. Add to View Price |
|||
|
#18
Spring (11,4) 0,4-8 valve
48600382
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
Tap 6x46 rebound
48600576
|
$14.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
O-ring 6x1,2 NBR70
48600299
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
Spring (13,9) 37-32 rebound cpl.
48600578S
|
$22.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
Spring retainer 27,08x43x45
48601298
|
$6.92 | ||
|
Available to order. Add to View Price |
|||
|
#23
Needle 4,5x43,6 cpl.
48600277S
|
$10.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
Needle 4,5x38,2 cpl.
48601558S
|
$13.63 | ||
|
Available to order. Add to View Price |
|||
|
#25
Piston rod 12x554
48600568
|
$116.70 | ||
|
Available to order. Add to View Price |
|||
|
#26
Adjustment tube 6x521,5
48602036
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#27
Stop 12,4x31,9x200,3 kpl.
48601556S
Superseded by S228700003S0100
|
$14.95 | ||
|
Available to order. Add to View Price |
|||
|
#28
Nut valve M6x0,5 h6,5 WAF17
48600163
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#29
Spring (8,5) l6,5 valve
48600202
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#30
Piston 6x27,3x9 compression cpl.
48601934S
|
$15.83 | ||
|
Available to order. Add to View Price |
|||
|
#31
Screw cap M29,3x1 OC split cpl.
48601553S
|
$30.24 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-ring 11x2,5 NBR70 PTFE yellow
04500003
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#33
Shim 27,5x33x0,3
48601702
|
$12.64 | ||
|
Available to order. Add to View Price |
|||
|
#34
HH collar screw M8x25
0025080256
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
Screw cap M29,3x1
48601980S
|
$25.84 | ||
|
Available to order. Add to View Price |
|||
|
#36
Fork protection ring 59,8mm
48601948
Superseded by S639200001000FA
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#37
Stroke indicator 48mm red
48602007
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#38
Sticker set Xplor OC 238x182.5
52000238SET
|
$43.44 | ||
|
Available to order. Add to View Price |
|||
|
#98
Fuchs grease IPR (250g)
T14034
|
$40.69 | ||
|
Available to order. Add to View Price |
|||
|
#99
Fork Fluid Viscosity 4.0 5L
48601166S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
