2021 KTM 150 XC-W TPI Rear Brake Control OEM Parts

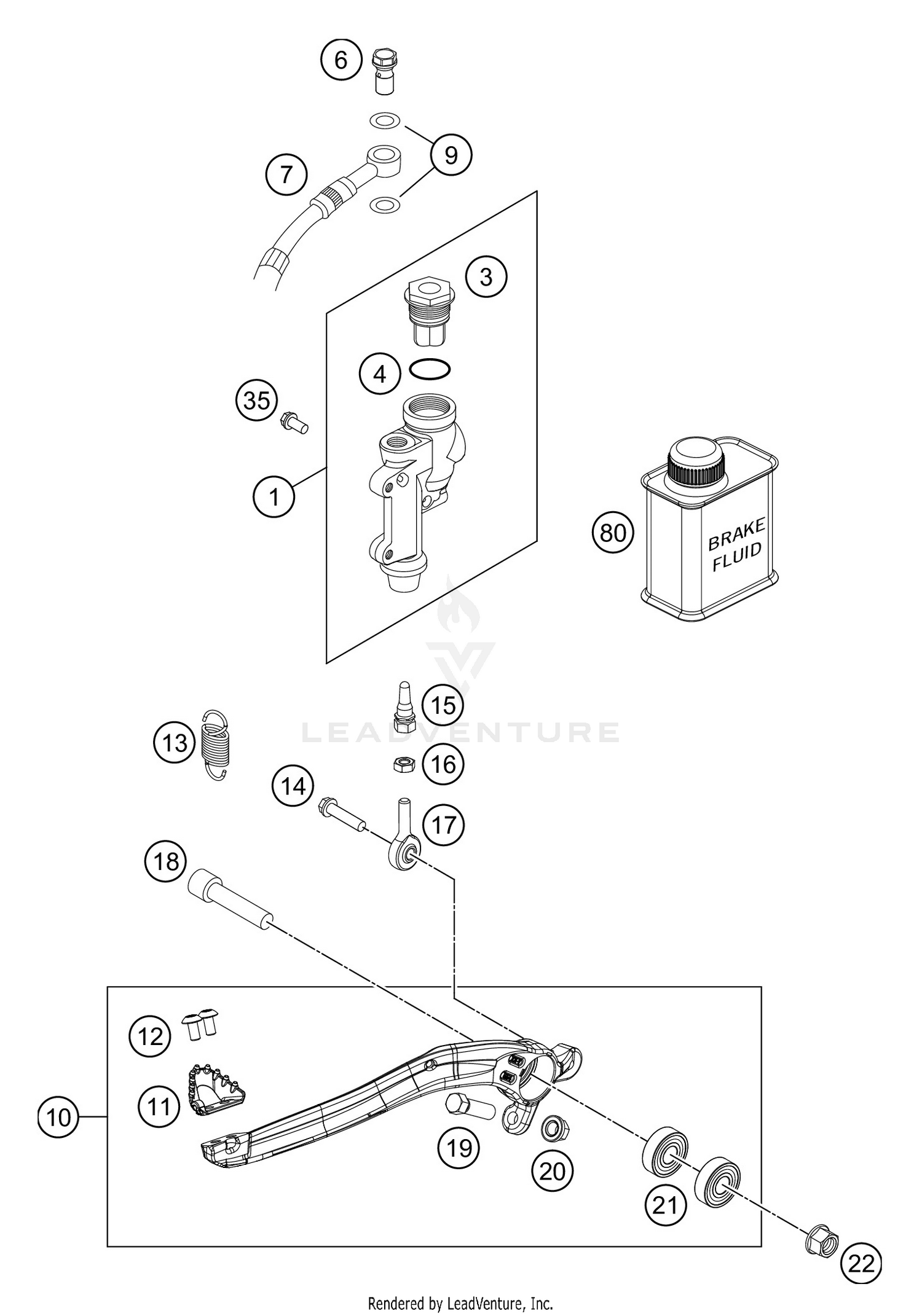

Rear Brake Control Diagram

Item MSRP Qty
#1 REAR BRAKE CYLINDER CPL.SX 09
77013060044
$360.13
Available to order.
Add to View Price
#3 REAR BRAKE CYL. COVER CPL. 04
54813062100
$53.01
In Stock: Ready to ship.
Add to View Price
#4 FOOT-BRAKE CYL. GASKET SX 03
54813063000
$11.21
Available to order.
Add to View Price
#6 banjo bolt M10x1x19 black
54813020100
$11.65
Available to order.
Add to View Price
#7 Brake hose rear 655 mm
54813070200
$128.25
Available to order.
Add to View Price
#9 sealing ring DIN 7603 10x14x1
0603100141
$2.99
In Stock: Ready to ship.
Add to View Price
#10 FOOT BRAKE LEVER CPL.
55413050044
$159.82
Available to order.
Add to View Price
#11 STEP PLATE FOOT BRAKE LEVER
55413051000
$32.55
Available to order.
Add to View Price
#12 SCREW TORX M5X10
78105081010
$2.99
In Stock: Ready to ship.
Add to View Price
#13 RETURN SPRING F. BRAKE LEVER
79003062000
$6.15
In Stock: Ready to ship.
Add to View Price
#14 HH collar screw M6x20 TX30
0025060206S
$2.99
In Stock: Ready to ship.
Add to View Price
#15 PUSH ROD L=28MM 03
54813056000
$18.69
Available to order.
Add to View Price
#16 hex nut DIN 934 M6
0934060003
$1.99
Available to order.
Add to View Price
#17 Joint head CMP6
54813055000
Superseded by 54813055100
$23.42
Available to order.
Add to View Price
#18 AH-COLLAR SCREW M10X40 ISA45
0032100406S
$4.99
Available to order.
Add to View Price
#19 SPECIAL SCREW M8X26 WS=10
59001037000
$3.99
In Stock: Ready to ship.
Add to View Price
#20 flanged nut M8 WS10
46030045000
$9.23
In Stock: Ready to ship.
Add to View Price
#21 deep groove ball bearing SKF 6000-2RS1
0625060002
$14.51
Available to order.
Add to View Price
#22 Collar nut M10-SW13 ZnNi
54630044000
Superseded by 55530044000
$1.99
In Stock: Ready to ship.
Add to View Price
#35 HH collar screw M6x12 TX30
0025060126
$3.99
In Stock: Ready to ship.
Add to View Price
#80 BRAKE FLUID DOT5.1 0,25L
00062030000
$13.99
Available to order.
Add to View Price
