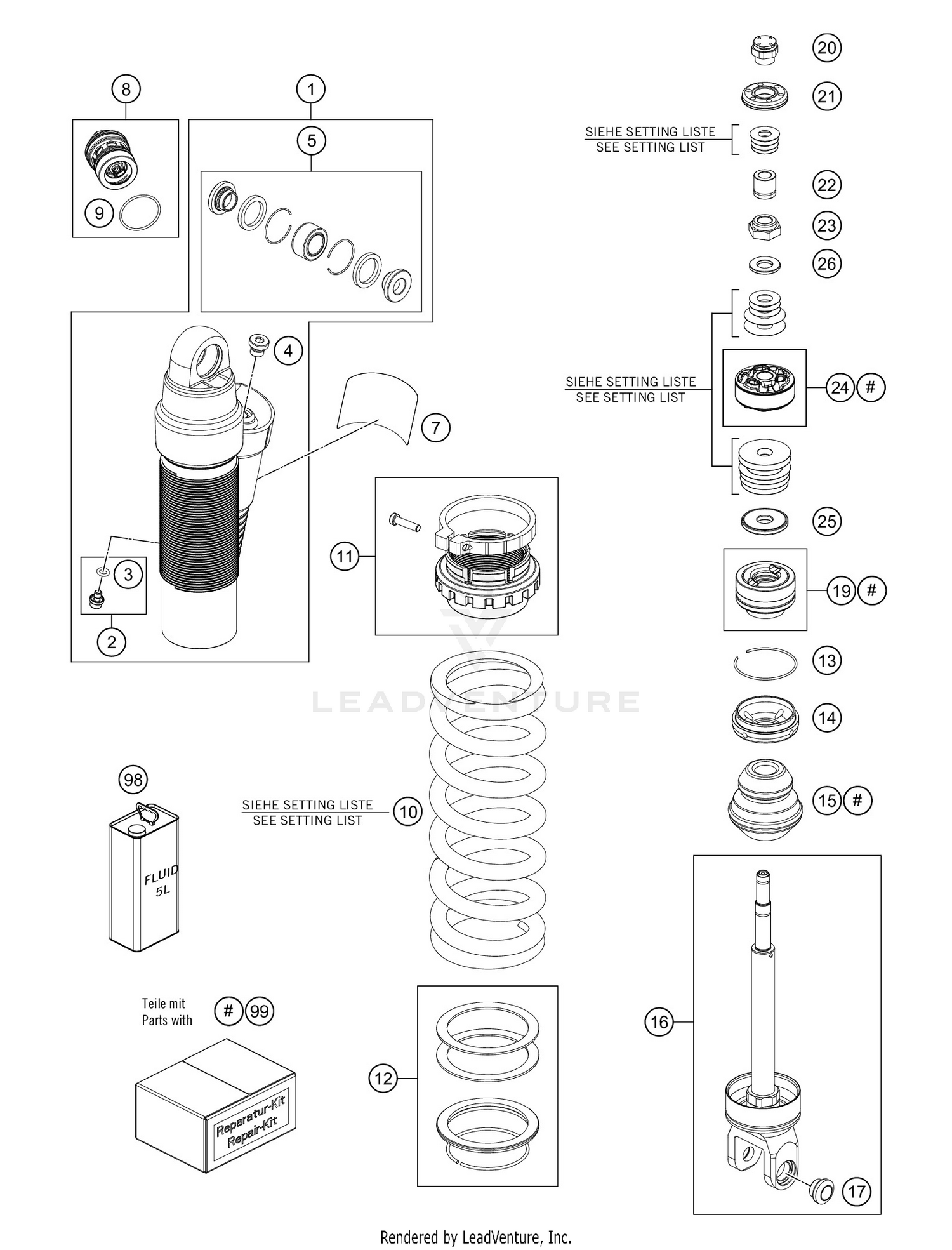

Shock Absorber Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
shock housing M53x1 h56 cpl.
46181242S4
|
$469.36 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLUG SCREW M5X6 CPL.
36120151S
Superseded by 36120151ST
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-ring 5,28x1,78 HNBR70 red
46810893
Superseded by S208600003000FB
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
HS cylinder-head screw R1/8 l8
50180095
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Ball joint bearing kit 12mm
RP10011
|
$44.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
Sticker XPLOR PDS 90x40
52000233
|
$37.94 | ||
|
Available to order. Add to View Price |
|||
|
#8
Compressionadjuster PDS cpl. 2020
50181101S35
|
$119.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-ring 27x1,5 Viton70 green ISO 3601-3S
50180217
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#10
Mainspring (59/61) 54-57-60-225 damp. w.
91010353
|
$177.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
Mainspring (59/61) 57-60-63-225 damp. w.
91010348
|
$177.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
Mainspring (59/61) 60-63-66-225 damp. w.
91010349
|
$177.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
Mainspring (59/61) 63-66-69-225 damp. w.
91010350
|
$177.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
Mainspring (59/61) 66-69-72-225 damp. w.
91010351
|
$177.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
Mainspring (59/61) 69-72-76-225 damp. w.
91010352
|
$177.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
Plastic Spring Retainer D46 cpl.
46181382S
|
$38.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING CUP SET PDS 17
RP10005
|
$38.27 | ||
|
Available to order. Add to View Price |
|||
|
#13
Round-wire snap ring 49x1,8
46810010
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
Cover 46,12x15 h5,5 red
46181351
|
$32.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
Rubber pad 17x48x55
46181237
|
$22.76 | ||
|
Available to order. Add to View Price |
|||
|
#16
MONOSHOCK LOWER PART CPL.
46181236S1
|
$406.88 | ||
|
Available to order. Add to View Price |
|||
|
#17
Threaded bush M12 d20
50180105
|
$18.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
Sealholder 46x28 cpl.
46180669S
Superseded by S614620000S0100
|
$83.81 | ||
|
Available to order. Add to View Price |
|||
|
#20
Nut PDS M10x1 h17,2 WAF19 cpl.
46181365S
Superseded by 46181659S
|
$67.53 | ||
|
Available to order. Add to View Price |
|||
|
#21
Piston 15,4x35,4x6
46181416
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
Bush 10x17x19
46181025
Superseded by S26100000000000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#23
Piston rod nut M12x1
46810474
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
Piston 12x46x20 cpl.
46181328S
|
$80.29 | ||
|
Available to order. Add to View Price |
|||
|
#25
Rebound disc 12x36x4 h0
46181194
|
$15.17 | ||
|
Available to order. Add to View Price |
|||
|
#26
Washer 12x24x2,5
46811258
|
$29.14 | ||
|
Available to order. Add to View Price |
|||
|
#98
SHOCK ABSORBER FLUID 5 LT
50180751S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#99
Repairing kit shock absorber PDS 19
RP10020
Superseded by RP10020T
|
$142.99 | ||
|
Unavailable |
|||
