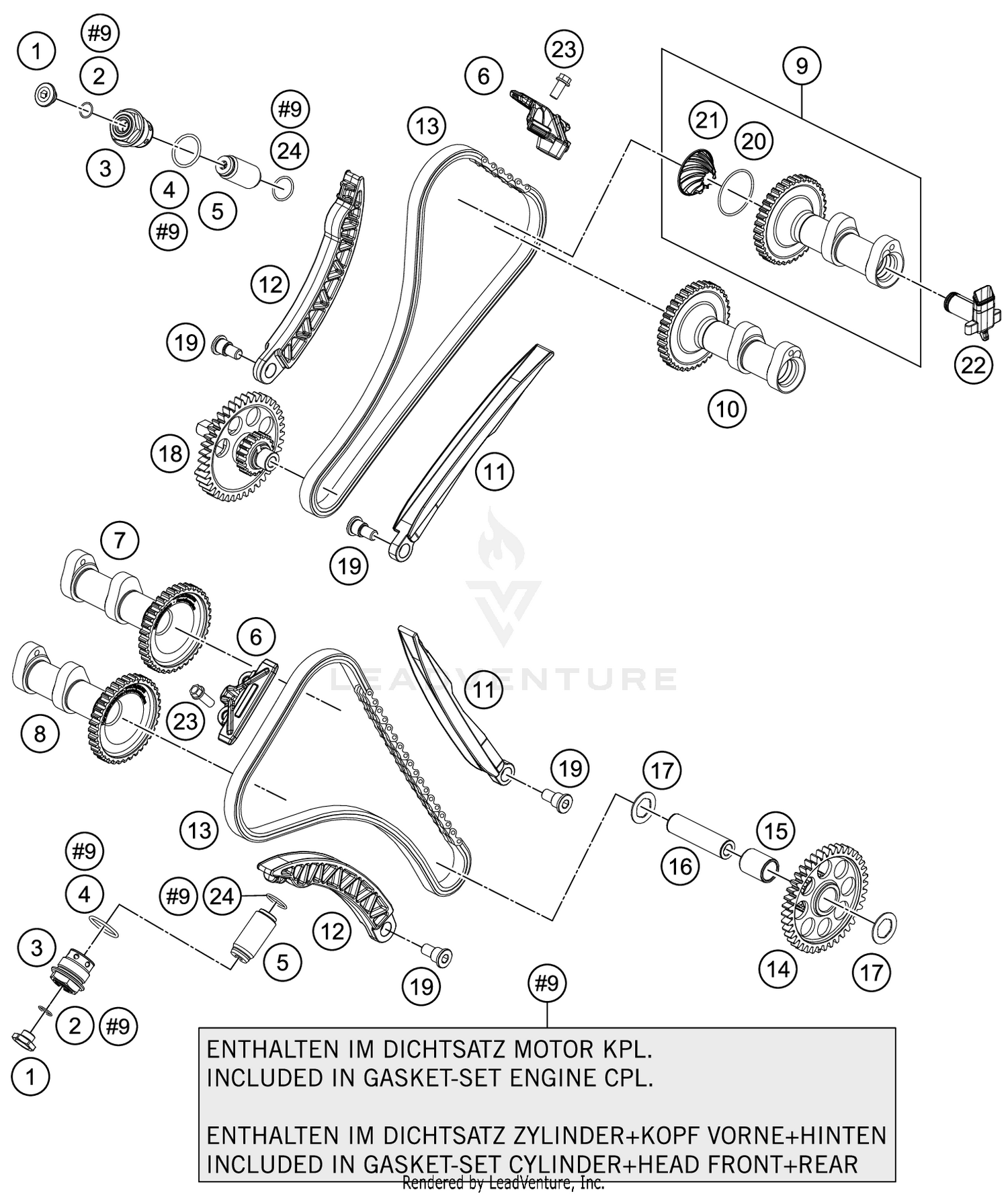

Timing Drive Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCREW PLUG
77236080100
Superseded by 77236080000
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#2
o-ring 10.00x1.00 NBR70
0770010010
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
chain tension adjuster plug cpl.
61236008200
|
$35.74 | ||
|
Available to order. Add to View Price |
|||
|
#4
o-ring 22.00x2.00 NBR70
0770220020
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAIN ADJUSTER HYD. 05
77036003000
|
$86.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUIDE RAIL TOP 08
61236005000
|
$20.56 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAMSHAFT INTAKE - FRONT
60336009000
|
$173.79 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAMSHAFT EXHAUST - FRONT
60336010000
|
$173.79 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAMSHAFT INRE CPL.
60336109044
|
$185.78 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAMSHAFT EXHAUST - REAR
60336110000
|
$158.06 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUIDE RAIL 08
61236001000
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#12
TENSIONER RAIL 08
61236002000
|
$6.81 | ||
|
Available to order. Add to View Price |
|||
|
#13
TIMING CHAIN 118 ROLLS
61236113000
|
$49.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
TIMING DRIVE IDLER GEAR L/S
61230057100
|
$125.17 | ||
|
Available to order. Add to View Price |
|||
|
#15
NEEDLE BEARING K 15X19X24ZW
0405151924
|
$20.89 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING BOLT 15X57,5 08
61230057050
|
$18.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
STOP DISK 15,2X25X1
61230057060
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
IDLER GEAR R/S
61330157000
|
$185.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
hex socket head shoulder screw
61236002050
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING 34X1,5 VITON
0770034015
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CENTRIFUGE CONE
61236080100
|
$6.92 | ||
|
Available to order. Add to View Price |
|||
|
#22
ANGLE PIECE F. BREATHER SYSTEM
61236081000
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#23
HH collar screw M6x20 TX30
0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
o-ring 18.00x2.00 NBR70
0770180020
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
