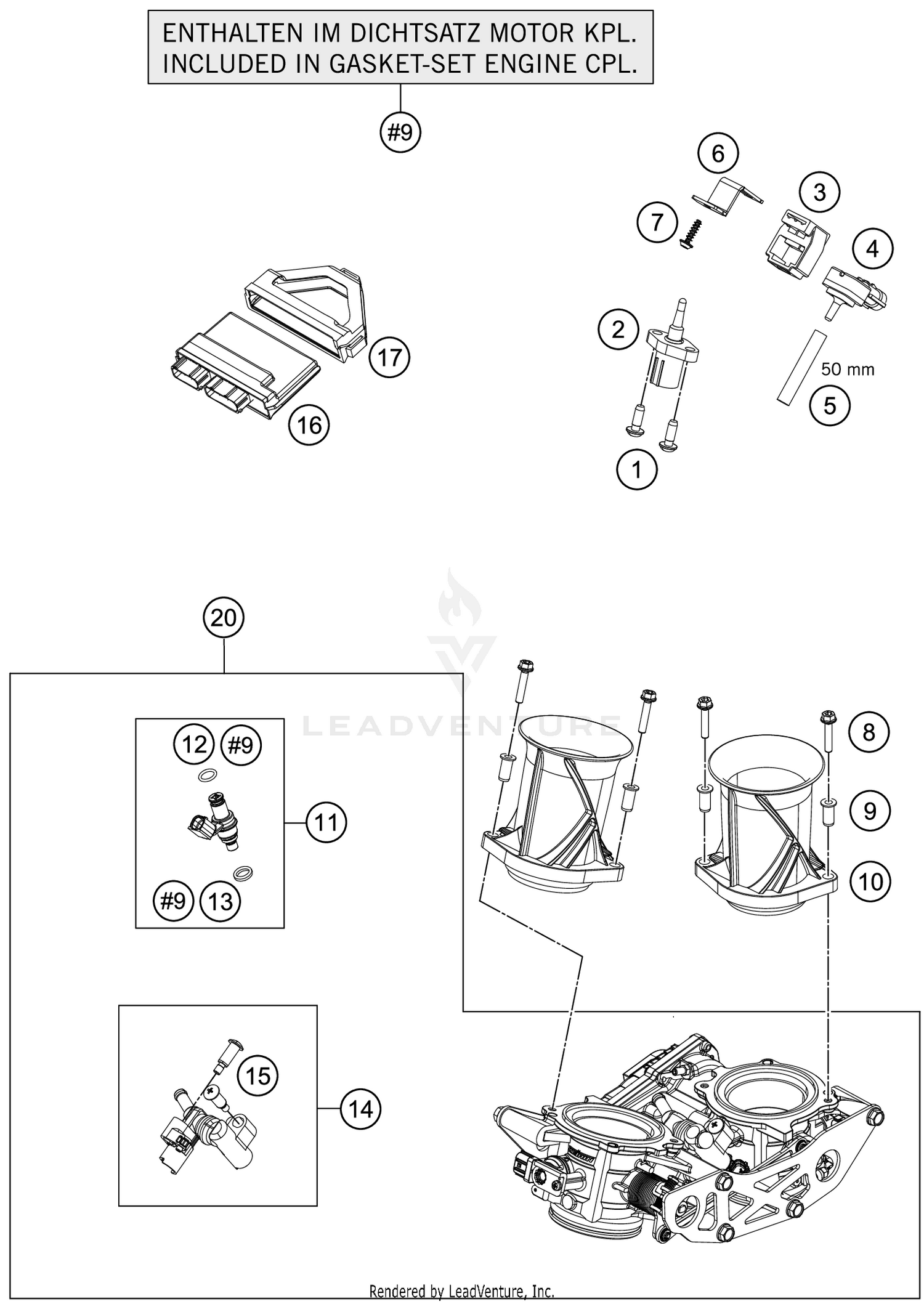

Throttle Body Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EJOT PT SCREW K50X16 1451
0081050161
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
AMBIENT-AIR TEMPERATURE SENSOR
61041080000
|
$27.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER SUPP. PRESSURE SENS. 06
61041085150
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
PRESSURE SENSOR 06
61041085100
|
$169.83 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE 3,2X8,5 PER METER
60031098001
|
$16.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET PRESSURE SENSOR
60311040100
|
$13.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW FOR PLASTIC K50X18 T20
0081050181
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
HH collar screw M5x25 TX30
0025050256S
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSHING INTAKE TRUMPET
60306042010
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
INTAKE TRUMPET LENGTH 100
60341040100
|
$19.46 | ||
|
Available to order. Add to View Price |
|||
|
#11
FUEL INJECTOR CPL.
60341023044
|
$220.54 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
60341023020
|
$9.34 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL RING
75041023010
|
$13.52 | ||
|
Available to order. Add to View Price |
|||
|
#14
FUEL PIPE CPL.
60341013044
|
$99.32 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW SHOULDER
75041013060
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#16
Control unit EFI
61341031300
|
$735.56 | ||
|
Available to order. Add to View Price |
|||
|
#17
ECU RUBBER BRACKET
60341031050
|
$20.89 | ||
|
Available to order. Add to View Price |
|||
|
#20
THROTTLE BODY
60341001000
|
$1,393.69 | ||
|
Available to order. Add to View Price |
|||
