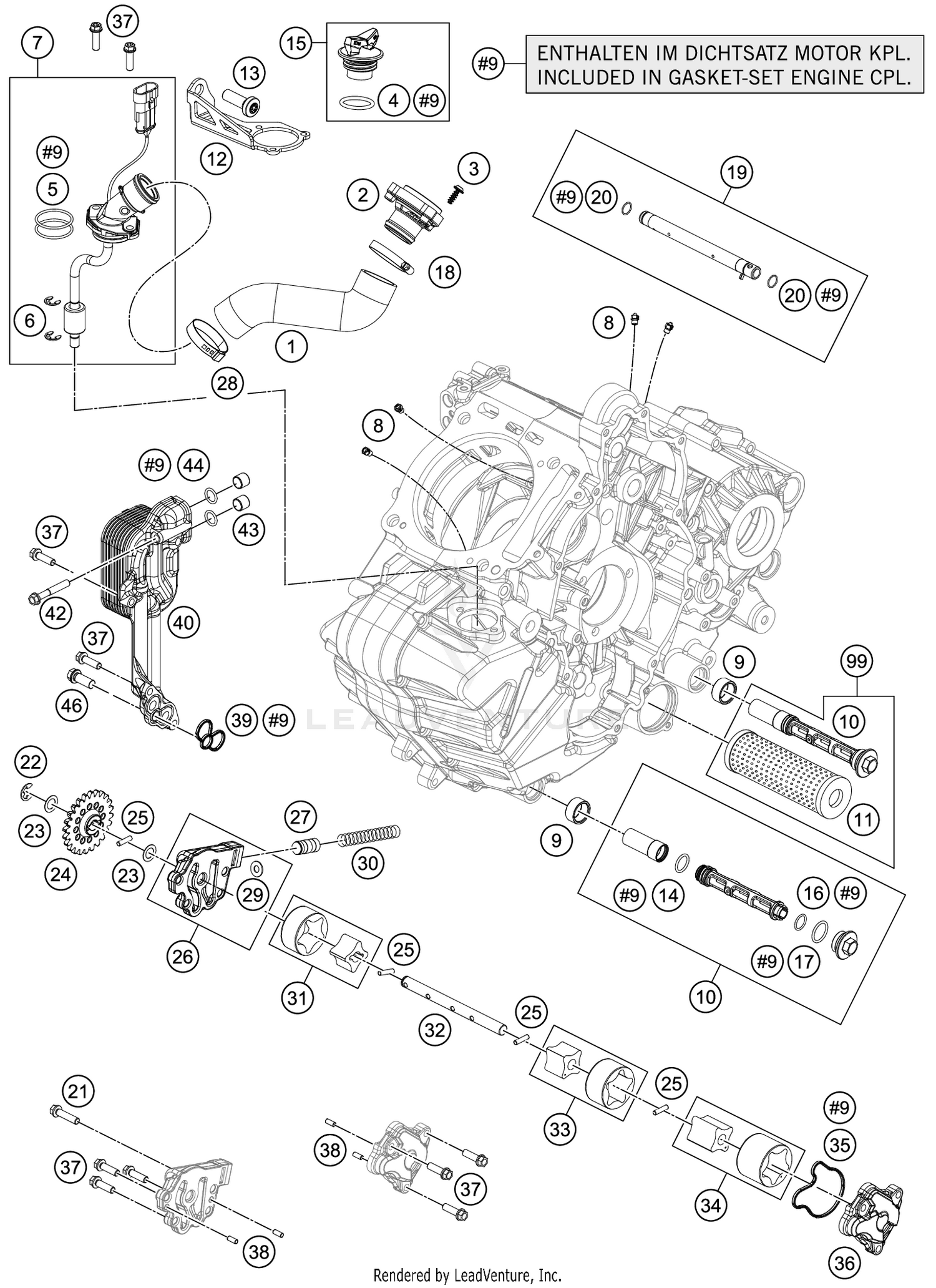

Lubricating System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL INFILLING HOSE
60307026100
|
$33.87 | ||
|
Available to order. Add to View Price |
|||
|
#2
THREADED ADAPTER
60307129000
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
EJOT PT screw K50x14
0081050141
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING 25,00X3,20 NBR 70
0770250032
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING 30X2,0 FPM
0770300020
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
TAB WASHER DIN6799-RS 7,0
0799070000
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Oil level and temperature sensor
61338085000
Superseded by 61338085200
|
$219.44 | ||
|
Unavailable |
|||
|
#8
oil jet 70 M5
60030063070
|
$10.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
OIL SCREEN BUSHING 08
61238017000
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#10
oil screen cpl.
61238021100
Superseded by 61238021400
|
$30.79 | ||
|
Unavailable |
|||
|
#11
OIL FILTER
61338015100
Superseded by 61338015200
|
$16.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
OIL INFILLING ADAPTER BRACKET
60312967040
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHCS M10x30 TX45
0035100309S
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
O-RING 14,00X2,00
0770140200
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL PLUG CPL.
60338085100
|
$16.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING 12,5X1,5 NBR
0770125015
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING 17,00X2,00
0770170200
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CLAMP 25-40 SGT 4
10001120000
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL INJECTION TUBE CPL. 08
61230065000
|
$31.12 | ||
|
Available to order. Add to View Price |
|||
|
#20
o-ring 10.00x1.00 NBR70
0770010010
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SK-BUNDSCHRAUBE M6X25 ISA30
0025060256S
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
retaining washer DIN 6799 - 8
0799080000
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
washer 10x16x0.5
60038007010
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL PUMP GEAR 24Z
60038001324
|
$51.91 | ||
|
Available to order. Add to View Price |
|||
|
#25
needle roller NRB 4x15.8 G2
0402041580
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PRESSURE PUMP COVER CPL.
61238009144
|
$35.41 | ||
|
Available to order. Add to View Price |
|||
|
#27
control piston
60038028000
Superseded by 60038128000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#28
VARIABLE ONE-EAR CLAMP 37,6MM
00050376706
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
shim
50337073000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Oil pressure spring
61438026000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
ROTOR-SET 19MM 03
60038009000
|
$62.25 | ||
|
Available to order. Add to View Price |
|||
|
#32
OIL PUMP SHAFT 08
61238002000
|
$23.42 | ||
|
Available to order. Add to View Price |
|||
|
#33
ROTOR SET 22MM
61238011100
|
$20.55 | ||
|
Available to order. Add to View Price |
|||
|
#34
eaton pump set 30mm
61238010100
|
$28.29 | ||
|
Available to order. Add to View Price |
|||
|
#35
MOLDED RING SUCTION PUMP COVER
61238008150
|
$23.64 | ||
|
Available to order. Add to View Price |
|||
|
#36
SUCTION PUMP COVER
61238008200
|
$27.82 | ||
|
Available to order. Add to View Price |
|||
|
#37
HH collar screw M6x20 TX30
0025060206S
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
needle roller DIN 5402 5x9.8
0402050980
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
MOLDED RING
61238051000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#40
Oil/water heat exchanger
6923805000033
Superseded by 69238250000
|
$196.12 | ||
|
Unavailable |
|||
|
#42
HH collar screw M6x13 TX30 SL
0025060506S
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BUSHING
61238052000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#44
O-RING 12X2 VITON GREEN
0770012021
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
HH collar screw M8x20
0025080206
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#99
OILFILTER SERVICE KIT
00050000068
|
$91.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
