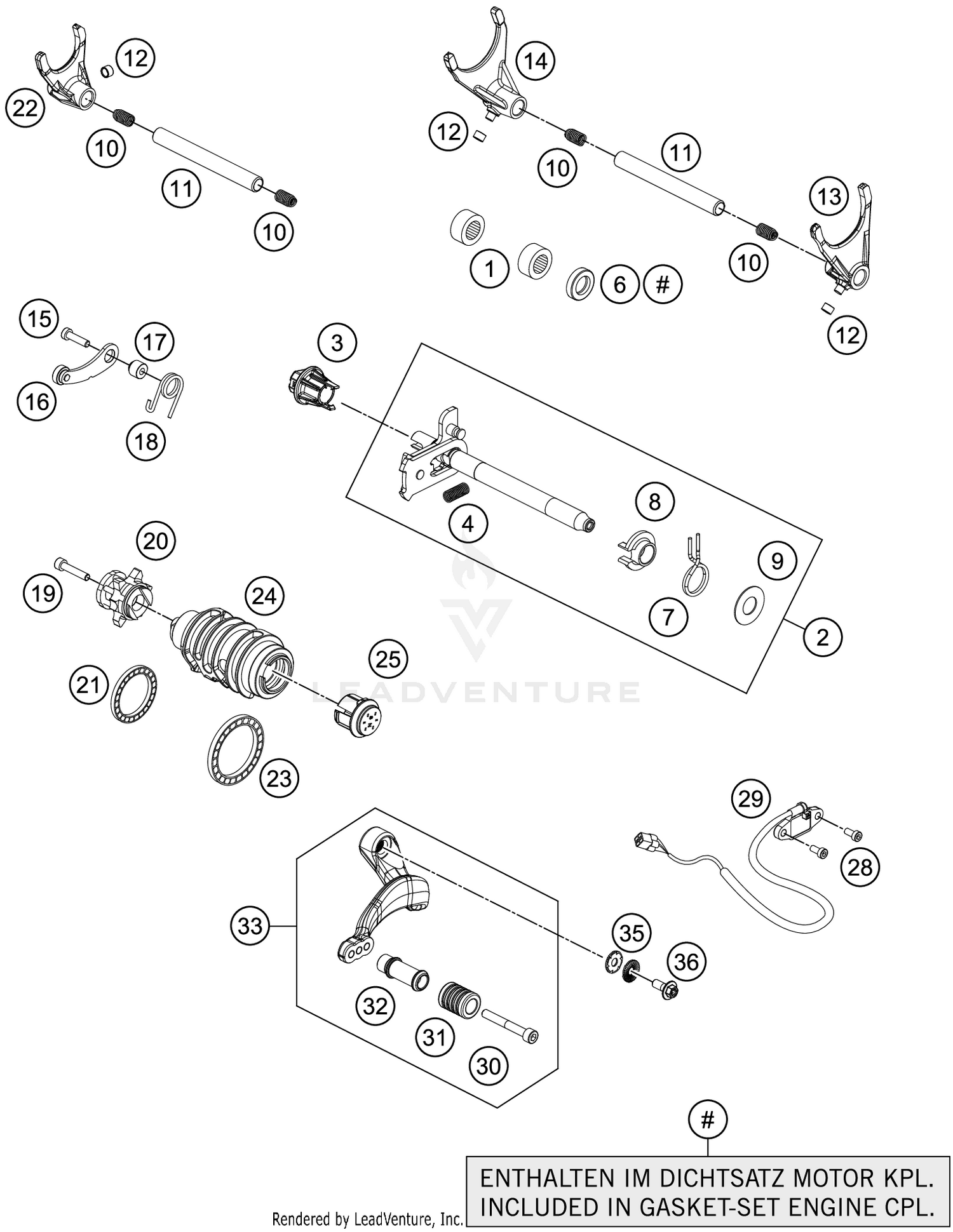

Shifting Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
needle sleeve HK 1412 14x20x12
54632095000
|
$8.24 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
SHIFT SHAFT CPL.
61434005044
|
$86.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
MAGNET HOLDER
61434050000
|
$62.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
TENSIONING SPRING 0,8MM
56534013100
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
radial shaft seal 14x24x6 B
0760142460
|
$10.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
RETURN SPRING 2.3 MM
61434014000
|
$17.48 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING GUIDE
54634020000
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
STOP DISK 14X30X1
54634050000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PRESSURE SPRING 0,9MM
58038023200
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIFT RAIL 11,8X105MM
59034020000
|
$15.72 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIFTING ROLLER 6X8X5,2
50334018100
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHIFT FORK 2-3 GEAR
61234002100
|
$60.71 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIFTING FORK 08
61234001000
|
$57.52 | ||
|
Available to order. Add to View Price |
|||
|
#15
HH collar screw M6x20 TX30
0024060206S
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
LOCKING LEVER CPL.
61434024000
|
$48.94 | ||
|
Available to order. Add to View Price |
|||
|
#17
SLEEVE FOR LOCKING LEVER 07
75034052000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING - LOCKING LEVER
61234023000
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#19
Hexagon socket screw, DIN0912-M 6X30 12.
0912060309S
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIFT LOCATING DRUM CPL.
61434015000
|
$35.85 | ||
|
Available to order. Add to View Price |
|||
|
#21
BALL BEARING 61805 C3
0625618050
|
$51.69 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIFT FORK 5-6 GEAR
61234003200
|
$62.03 | ||
|
Available to order. Add to View Price |
|||
|
#23
GROOVED BALL BEARING 6808 JRC3
0625068080
|
$37.83 | ||
|
Available to order. Add to View Price |
|||
|
#24
SHIFTING DRUM 6G
60434012001
|
$123.74 | ||
|
Available to order. Add to View Price |
|||
|
#25
magnet holder cpl.
79234012020
|
$69.07 | ||
|
Available to order. Add to View Price |
|||
|
#28
CYL. SCREW DIN6912 M5X14 8.8
0984050143S
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
GEAR POSITION SENSOR
60411023000
|
$204.26 | ||
|
Available to order. Add to View Price |
|||
|
#30
AH SCREW DIN0912-M 6X45
0912060453
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
RUBBER FOR SHIFT LEVER 05
61034035000
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#32
GEAR LEVER
69034032100
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#33
Gear shift lever cmpl.
60734031044
Superseded by 60734031044C1
|
$131.66 | ||
|
Available to order. Add to View Price |
|||
|
#35
PAIR NORDLOCK WASHER M6
50233041500
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
HH collar screw M6x20 TX30
0024060206S
|
$1.99 | ||
|
Unavailable |
|||
