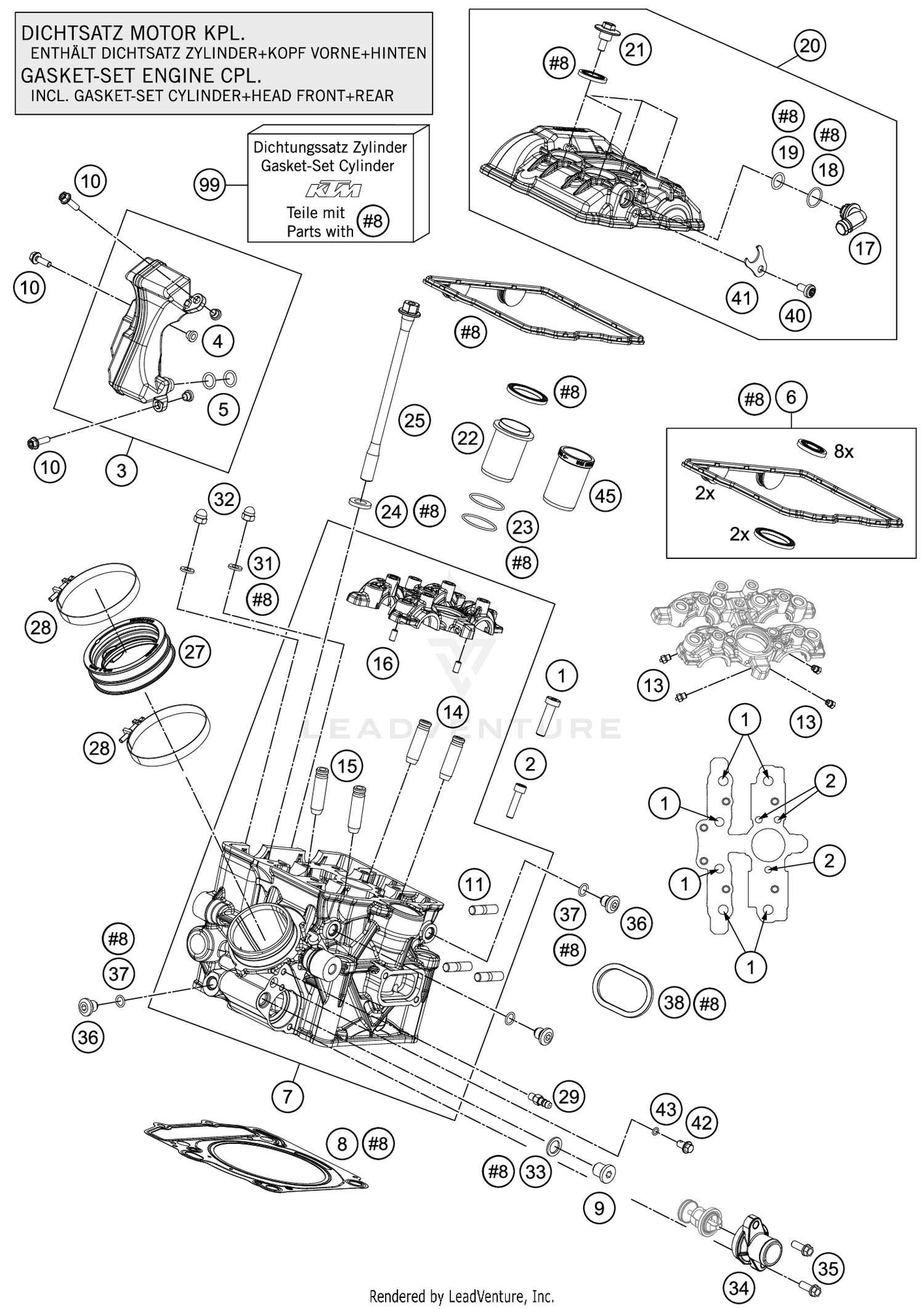

Cylinder Head Rear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AH SCREW DIN7984-M 8X30 10.9
0984080305
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
AH SCREW DIN0912-M 6X25 10.9
0912060255
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RESONATOR KPL.
60736065000
|
$66.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
Spacing tube spring retaining bracket
78003023070
Superseded by 78003123070
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
O-RING 11X2 VITON
0770110021
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
VALVE COVER GASKET SET
61236099100
|
$65.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
cylinder head rear
6073612000024
Superseded by 6073612014424
|
$1,099.22 | ||
|
Available to order. Add to View Price |
|||
|
#8
CYLINDER HEAD GASKET 0,85
61330036085
|
$78.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
threaded plug DIN 908 M12x1.5
0908120153
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HH collar screw M5x16 TX30
0025050166
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
STUD M 8X16 10.9
0835080165
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
oil jet 50 M5
60030063050
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
VALVE GUIDE EXHAUST 08
61236026001
|
$30.24 | ||
|
Available to order. Add to View Price |
|||
|
#15
VALVE GIUDE INTAKE 6MM
61236025001
|
$26.39 | ||
|
Available to order. Add to View Price |
|||
|
#16
needle roller DIN 5402 5x9.8
0402050980
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Elbow fitting
61236082100
Superseded by 61236082200
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING 15,00X1,50 VITON
0770150151
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
O-RING 12,00X2,00 NBR 70
0770120020
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
VALVE COVER REAR
6123615214433
|
$80.73 | ||
|
Available to order. Add to View Price |
|||
|
#21
collar screw M 6 WS=10 03
60036052020
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPARK PLUG SHAFT
61336075100
|
$22.32 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING 29,87X1,78 VITON
0770298178
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER 11,1X20X3 08
61236079050
|
$6.48 | ||
|
Available to order. Add to View Price |
|||
|
#25
CYLINDER HEAD SCREW 08
61236079000
|
$18.58 | ||
|
Available to order. Add to View Price |
|||
|
#27
INTAKE BOOT
61336044000
|
$46.63 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOSE CLAMP GEMI 75
61336048000
|
$16.82 | ||
|
Available to order. Add to View Price |
|||
|
#29
VACUUM CONNECTION M6/0.75MM
60036023200
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#32
CAP NUT M6 STAINLESS STEEL
61230045000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
CU-SEAL RING DIN7603-12X18X1,5
58038022000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
WATER CONNECTION CPL.
61235019100
|
$26.39 | ||
|
Available to order. Add to View Price |
|||
|
#35
HH collar screw M6x20 TX30
0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
SCREW PLUG
77336056095
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING 9x1,5 V80 SH
07700900151
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
EXHAUST PIPE FLANGE GASKET
69005005100
|
$21.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
EJOT ALtracs 60x12 TX30
0080060123
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
connecting angle retaining plate
61236082150
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#42
VENT SCREW M6X10 CPL.
59036006090
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
O-RING 5,0X1,2 NBR 70
0770050012
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
INSERT SPARK-PLUG SHAFT
61336074100
|
$26.72 | ||
|
Available to order. Add to View Price |
|||
|
#99
GASKET SET CYLINDER+HEAD F+R
61330097000
|
$388.07 | ||
|
Available to order. Add to View Price |
|||
