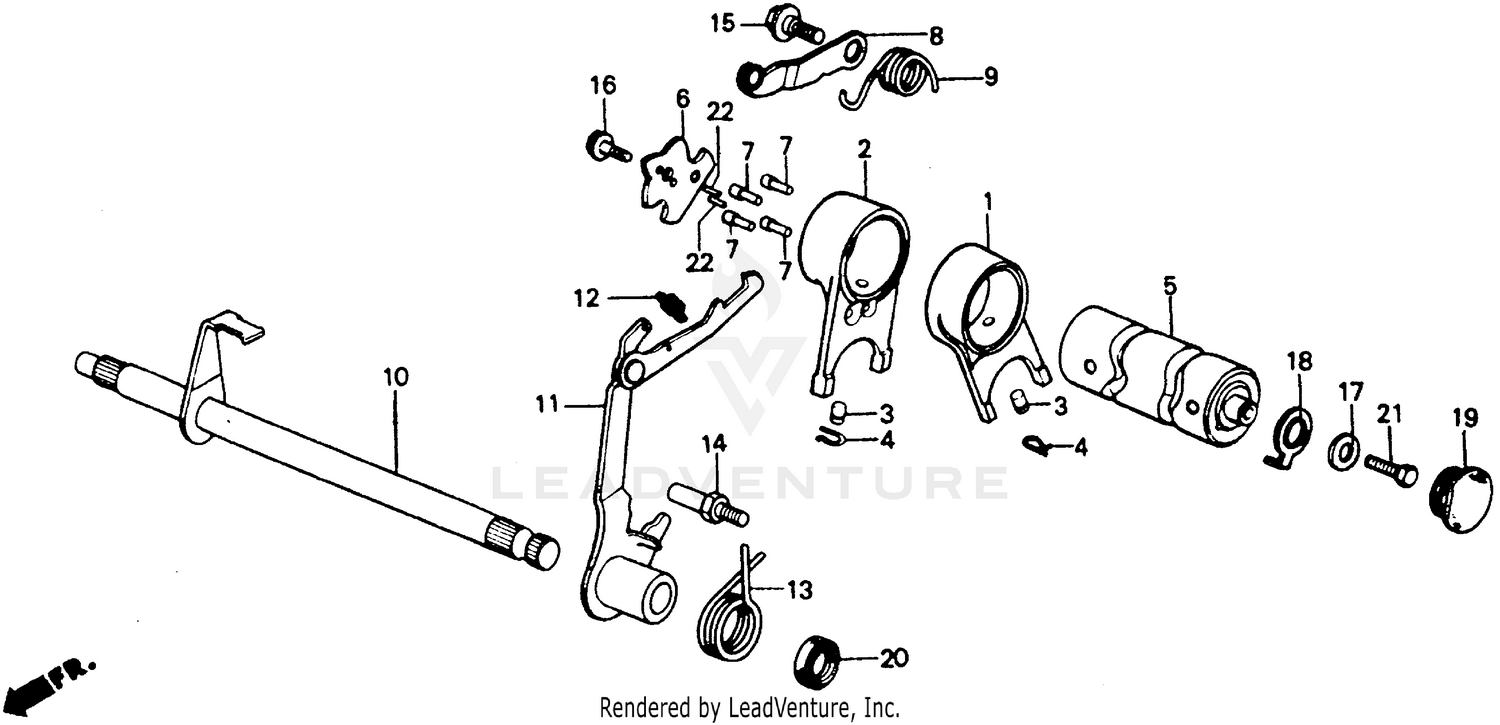

Gearshift Drum Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, L. GEARSHIFT
24211-087-010
|
$78.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK, R. GEARSHIFT
24221-041-010
|
$93.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, GEARSHIFT FORK GUIDE
24261-121-740
Superseded by 24261-121-742
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, GEARSHIFT FORK GUIDE
24261-121-741
Superseded by 24261-121-742
|
$2.65 | ||
|
Unavailable |
|||
|
#3
PIN, GEARSHIFT FORK GUIDE
24261-121-742
|
$2.65 | ||
|
Unavailable |
|||
|
#4
CLIP, GEARSHIFT FORK GUIDE PIN
24263-028-000
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#5
DRUM, GEARSHIFT (NOT AVAILABLE)
24301-045-673
|
$57.68 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, GEARSHIFT DRUM STOPPER
24411-041-050
Superseded by 24411-041-060
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, GEARSHIFT DRUM STOPPER
24411-041-060
|
$5.49 | ||
|
Unavailable |
|||
|
#7
PIN, GEARSHIFT DRUM
24421-041-000
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#8
ARM, SHIFT DRUM STOPPER
24430-GB5-670
Superseded by 24430-GW8-710
|
$21.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
ARM, SHIFT DRUM STOPPER
24430-GW8-710
|
$21.62 | ||
|
Unavailable |
|||
|
#8
ARM, SHIFT DRUM STOPPER
24430-HB2-000
Superseded by 24430-GW8-710
|
$21.62 | ||
|
Unavailable |
|||
|
#9
SPRING, SHIFT DRUM STOPPER
24435-GB5-670
Superseded by 24435-GB5-671
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, SHIFT DRUM STOPPER
24435-GB5-671
|
$3.71 | ||
|
Unavailable |
|||
|
#10
SPINDLE, GEARSHIFT
24610-098-730
|
$67.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
ARM, GEARSHIFT
24630-086-010
Superseded by 24630-086-030
|
$19.31 | ||
|
Unavailable |
|||
|
#11
ARM, GEARSHIFT
24630-086-020
Superseded by 24630-086-030
|
$19.31 | ||
|
Unavailable |
|||
|
#11
ARM, GEARSHIFT (SOURCE: VINTAGE PARTS INC.)
24630-086-030
|
$19.31 | ||
|
Unavailable |
|||
|
#12
SPRING, GEARSHIFT ARM
24641-041-000
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, GEARSHIFT RETURN
24651-041-000
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, SHIFT RETURN SPRING
24652-035-000
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT
90023-041-000
Superseded by 90023-041-010
|
$2.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT
90023-041-010
|
$2.56 | ||
|
Unavailable |
|||
|
#16
BOLT, KNOCK (6MM)
90071-171-010
|
$2.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER, GEARSHIFT DRUM SIDE
90417-041-000
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER (13.2MM)
90484-045-010
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLUG, RUBBER (19MM)
90801-035-000
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL (11.6X24X10) (ARAI)
91208-KB4-671
|
$5.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, HEX. (6X16)
92000-06016-0A
Superseded by 92101-06016-0A
|
$1.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, HEX. (6X16)
92100-06016-0A
Superseded by 92101-06016-0A
|
$1.53 | ||
|
Unavailable |
|||
|
#21
BOLT, HEX. (6X16)
92101-06016-0A
|
$1.53 | ||
|
Unavailable |
|||
|
#22
ROLLER (3X8.5)
96220-30085
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
