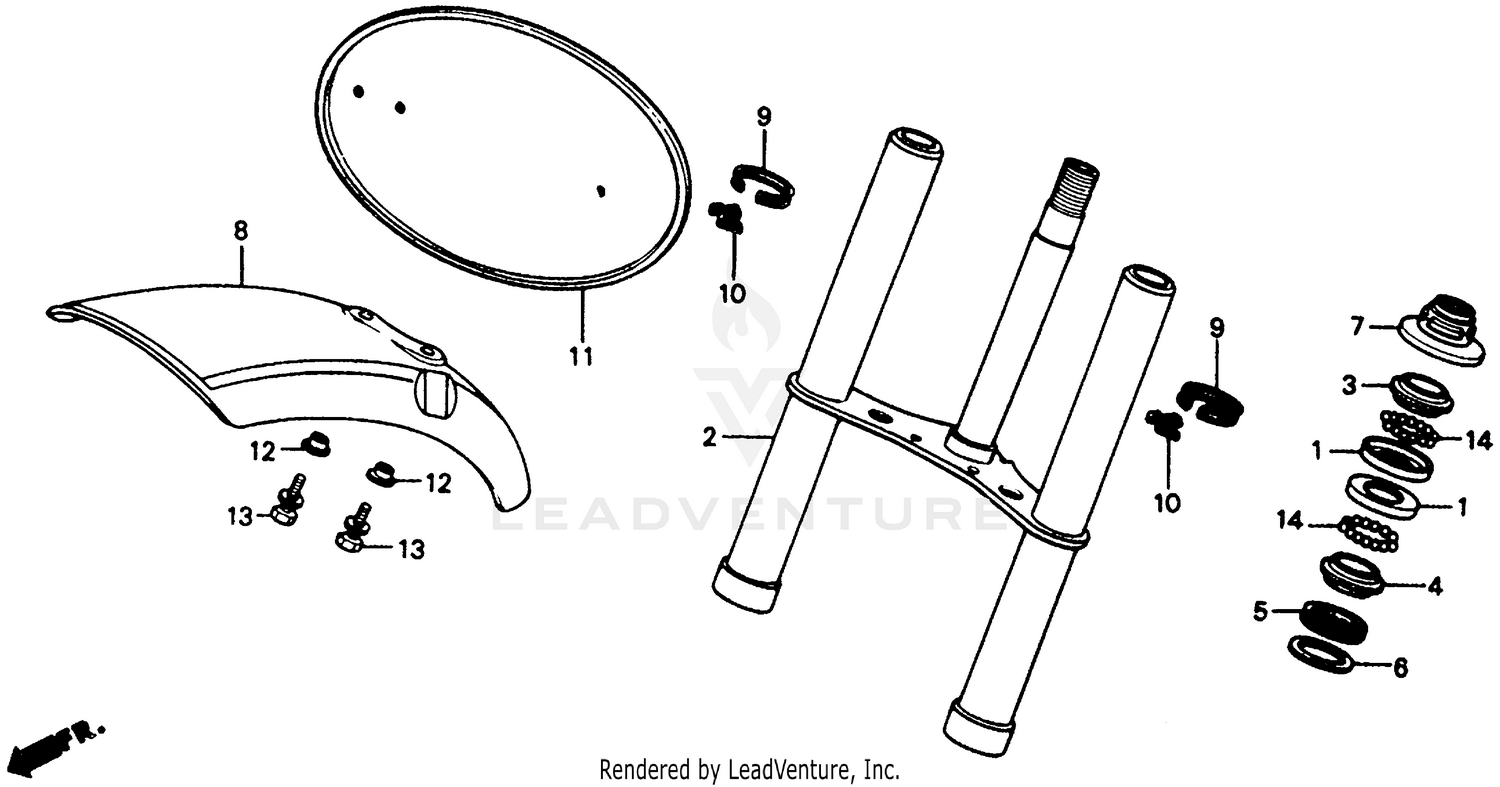

Front Fork 86-87 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RACE, STEERING BALL
50301-041-010
|
$15.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK, FR. *R120* (BLAZE RED) (NOT AVAILABLE)
51510-181-000ZB
|
$108.81 | ||
|
Unavailable |
|||
|
#3
RACE, STEERING TOP CONE
53211-028-010
|
$13.44 | ||
|
Available to order. Add to View Price |
|||
|
#4
RACE, STEERING CONE (LOWER)
53212-030-010
|
$13.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
DUST SEAL, STEERING HEAD
53214-001-010
Superseded by 53214-GJG-C20
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, DUST SEAL
53215-120-000
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
THREAD, STEERING HEAD TOP
53220-098-670
|
$20.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
FENDER, FR. *R120* (BLAZE RED) (NOT AVAILABLE)
61100-165-000ZH
|
$35.61 | ||
|
Unavailable |
|||
|
#9
BAND, FR. NUMBER PLATE
64111-181-000
|
$10.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP, FR. NUMBER PLATE
64112-181-010
|
$5.56 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, FR. NUMBER *NH138* (SHASTA WHITE) (NOT AVAILABLE)
64113-116-690ZD
|
$22.74 | ||
|
Unavailable |
|||
|
#12
WASHER, FR. FENDER SETTING
90556-044-000
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT-WASHER (6X16)
93401-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT-WASHER (6X16)
93411-06016-00
Superseded by 93401-06016-00
|
$1.70 | ||
|
Unavailable |
|||
|
#13
BOLT-WASHER (6X16)
93481-06016-00
Superseded by 93401-06016-00
|
$1.70 | ||
|
Unavailable |
|||
|
#14
BALL, STEEL (#6) (3/16)
96211-06000
|
$0.53 | ||
|
Available to order. Add to View Price |
|||
