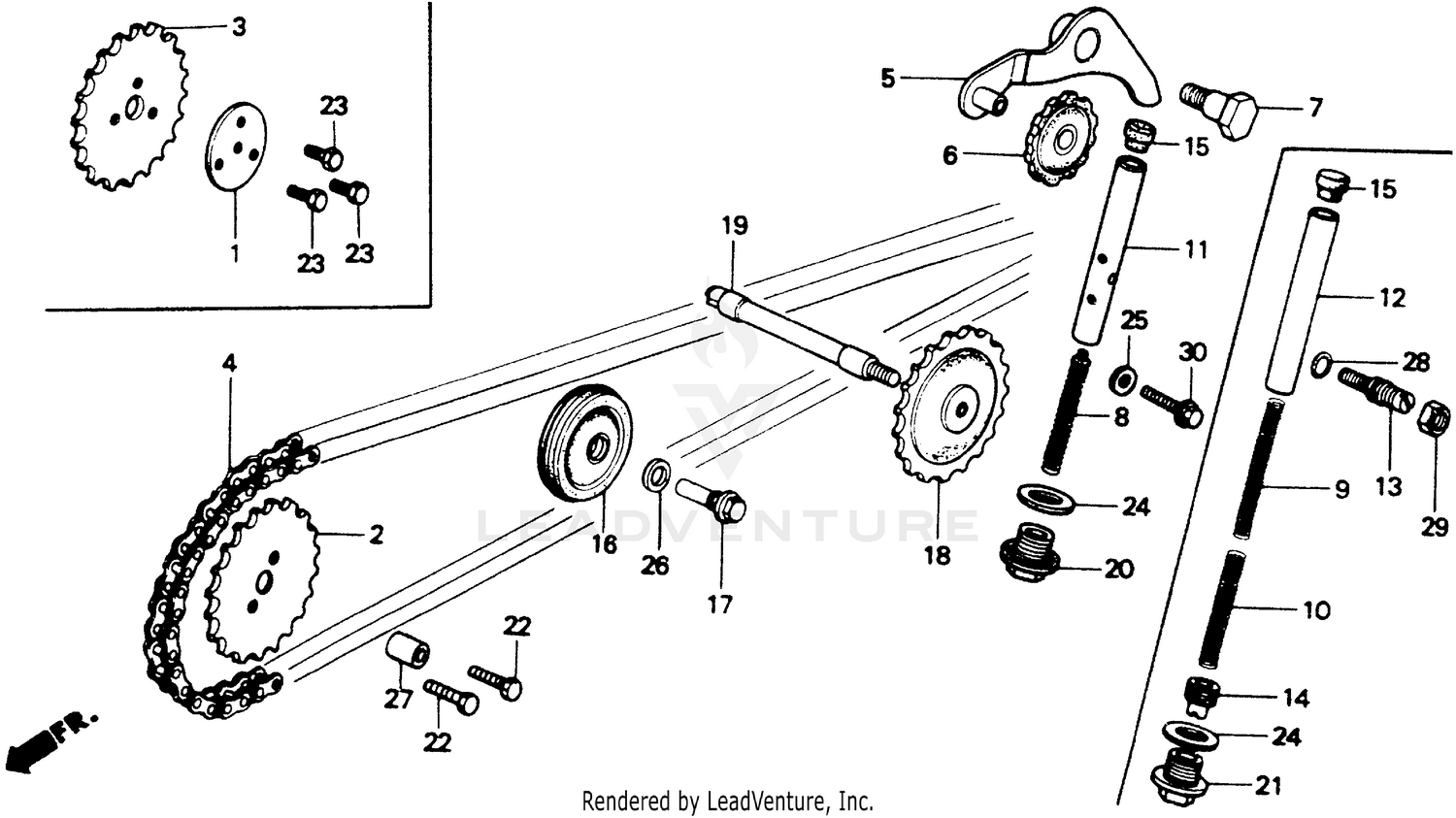

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WASHER, CAMSHAFT (NOT AVAILABLE)
14105-957-000
|
$2.99 | ||
|
Unavailable |
|||
|
#3
SPROCKET, CAM (28T)
14321-035-010
Superseded by 14321-035-700
|
$21.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
CHAIN, CAM (82L) (DAIDO)
14401-035-003
Superseded by 14401-115-010
|
$36.27 | ||
|
Available to order. Add to View Price |
|||
|
#4
CHAIN, CAM (82L) (DAIDO)
14401-115-010
|
$36.27 | ||
|
Unavailable |
|||
|
#5
ARM, CAM CHAIN TENSIONER
14500-035-020
|
$33.96 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROLLER, CAM CHAIN TENSIONER
14502-086-000
|
$19.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIVOT, CAM CHAIN TENSIONER
14531-035-000
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING A, CAM CHAIN TENSIONER (NOT AVAILABLE)
14541-086-010
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING B, CAM CHAIN TENSIONER
14542-086-000
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
ROD, CAM CHAIN TENSIONER PUSH (NOT AVAILABLE)
14550-086-010
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, CAM CHAIN TENSIONER ADJUSTING
14561-086-010
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT B, CAM CHAIN TENSIONER ADJUSTING (NOT AVAILABLE)
14562-086-000
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
HEAD, CAM CHAIN TENSIONER PUSH ROD
14566-086-030
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROLLER, CAM CHAIN GUIDE
14610-086-003
Superseded by 14610-086-010
|
$24.51 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROLLER, CAM CHAIN GUIDE
14610-086-010
|
$24.51 | ||
|
Unavailable |
|||
|
#16
ROLLER, CAM CHAIN GUIDE
14610-086-013
Superseded by 14610-086-010
|
$24.51 | ||
|
Unavailable |
|||
|
#17
PIN, CAM CHAIN GUIDE ROLLER
14615-035-000
Superseded by 14615-035-010
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, CAM CHAIN GUIDE ROLLER
14615-035-010
|
$3.24 | ||
|
Unavailable |
|||
|
#18
SPROCKET, CAM CHAIN GUIDE (25T)
14670-035-030
Superseded by 14670-GBJ-M30
|
$28.27 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPINDLE, CAM CHAIN GUIDE SPROCKET
14675-178-000
|
$33.07 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, SEALING (14MM)
90081-086-000
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, KNOCK (5MM)
90083-035-010
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SEALING (14MM)
90441-035-000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER (8MM)
90481-035-000
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING (5.5X1.5)
91301-216-000
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT,HEX 8MM
94002-080000S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
