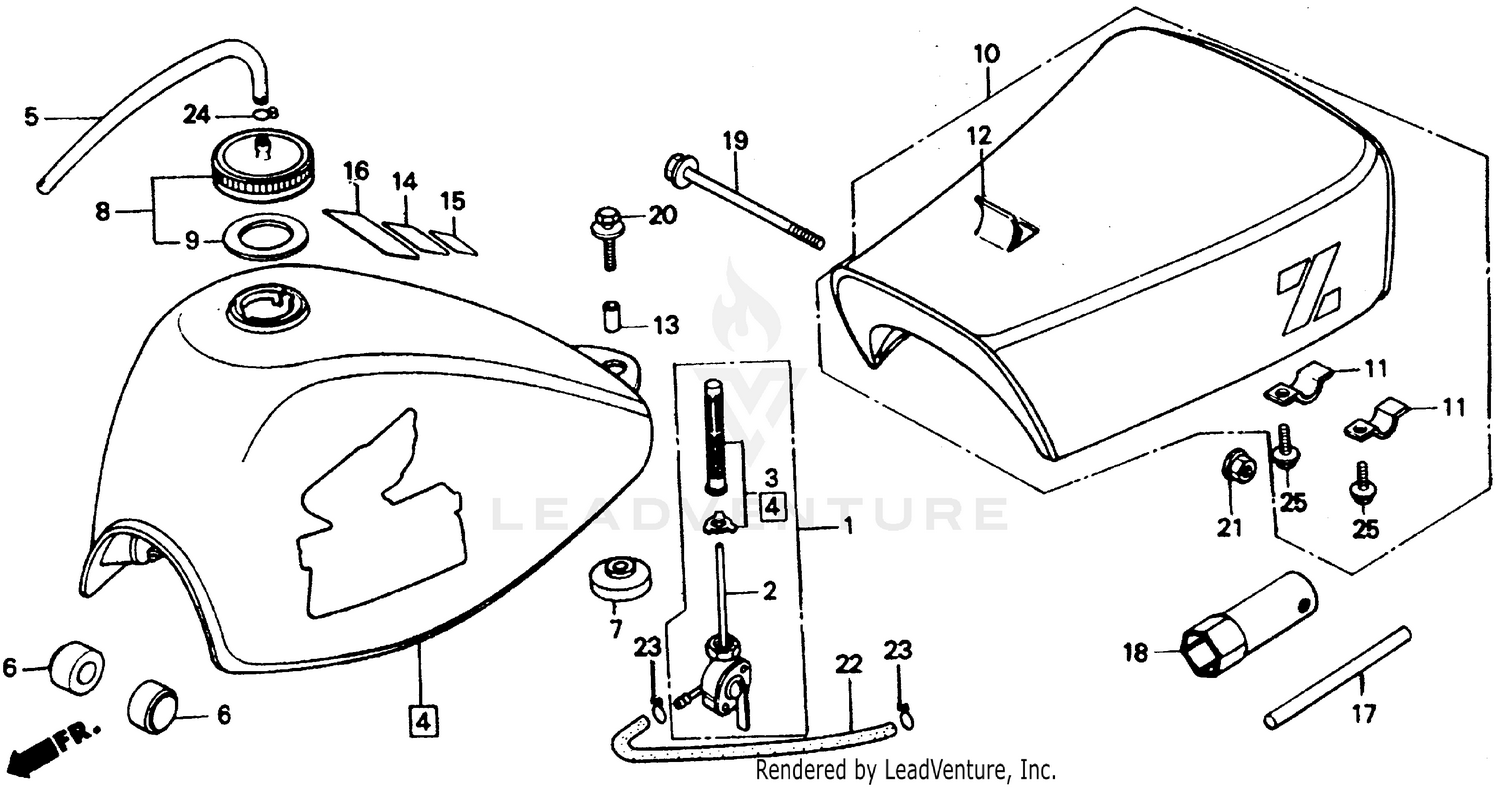

Fuel Tank + Seat 86-87 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PETCOCK ASSY.
16950-GW8-670
|
$83.67 | ||
|
Available to order. Add to View Price |
|||
|
#1
PETCOCK ASSY.
16950-166-015
Superseded by 16950-GW8-670
|
$83.67 | ||
|
Unavailable |
|||
|
#1
PETCOCK ASSY.
16950-166-025
Superseded by 16950-GW8-670
|
$83.67 | ||
|
Unavailable |
|||
|
#2
BODY, PETCOCK
16951-166-005
Superseded by 16951-166-025
|
$32.23 | ||
|
Unavailable |
|||
|
#3
SCREEN SET
16952-166-015
Superseded by 16952-166-305
|
$21.85 | ||
|
Unavailable |
|||
|
#4
TANK SET, FUEL *R120* (WL) (BLAZE RED) (NOT AVAILABLE)
175A1-181-830ZA
|
$205.52 | ||
|
Unavailable |
|||
|
#5
TUBE, FUEL CAP BREATHER
17530-437-000
|
$10.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, FR. FUEL TANK
17611-028-000
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER, FUEL TANK
17613-120-000
|
$6.51 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, FUEL FILLER
17620-181-711
Superseded by 17620-181-712
|
$33.13 | ||
|
Unavailable |
|||
|
#9
GASKET
17631-096-700
Superseded by 17631-096-702
|
$2.96 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
GASKET
17631-096-701
Superseded by 17631-096-702
|
$2.96 | ||
|
Unavailable |
|||
|
#10
SEAT (TYPE1) (NOT AVAILABLE)
77100-181-830ZA
|
$130.56 | ||
|
Unavailable |
|||
|
#11
PLATE, PLUG WRENCH SETTING (NOT AVAILABLE)
77136-170-000
|
$1.46 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEATHER (TYPE1) (NOT AVAILABLE)
77210-181-830ZA
|
$39.42 | ||
|
Unavailable |
|||
|
#13
COLLAR B, RR. FENDER
80109-061-010
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
LABEL, USE CAUTION *NH1* (BLACK) (NOT AVAILABLE)
87504-130-720ZA
|
$3.71 | ||
|
Unavailable |
|||
|
#15
LABEL, OPERATOR WARNING *NH1* (BLACK)
87510-147-670ZA
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
MARK, DRIVE CAUTION (TYPEB)
87560-181-760
Superseded by 87560-181-760ZE
|
$4.96 | ||
|
Available to order. Add to View Price |
|||
|
#16
MARK, DRIVE CAUTION (TYPEB)
87560-181-760ZE
|
$4.96 | ||
|
Unavailable |
|||
|
#17
BAR, PLUG WRENCH
89211-170-000
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#18
WRENCH, SPARK PLUG
89216-130-690
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X105) (NOT AVAILABLE)
90052-422-000
|
$5.37 | ||
|
Unavailable |
|||
|
#20
BOLT-WASHER (6X25)
93404-06025-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT-WASHER (6X25)
93494-06025-00
Superseded by 93404-06025-00
|
$1.25 | ||
|
Unavailable |
|||
|
#21
NUT-WASHER (8MM)
94070-08080
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#22
BULK HOSE, FUEL (4.5X3000) (4.5X130)
95001-45003-60M
|
$44.43 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP, TUBE (B8)
95002-02080
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
CLIP, TUBE (C9)
95002-50000
|
$1.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X10)
95700-06010-00
Superseded by 95701-06010-00
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X10)
95700-06010-10
Superseded by 95701-06010-00
|
$1.32 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE (6X10)
95701-06010-00
|
$1.32 | ||
|
Unavailable |
|||
