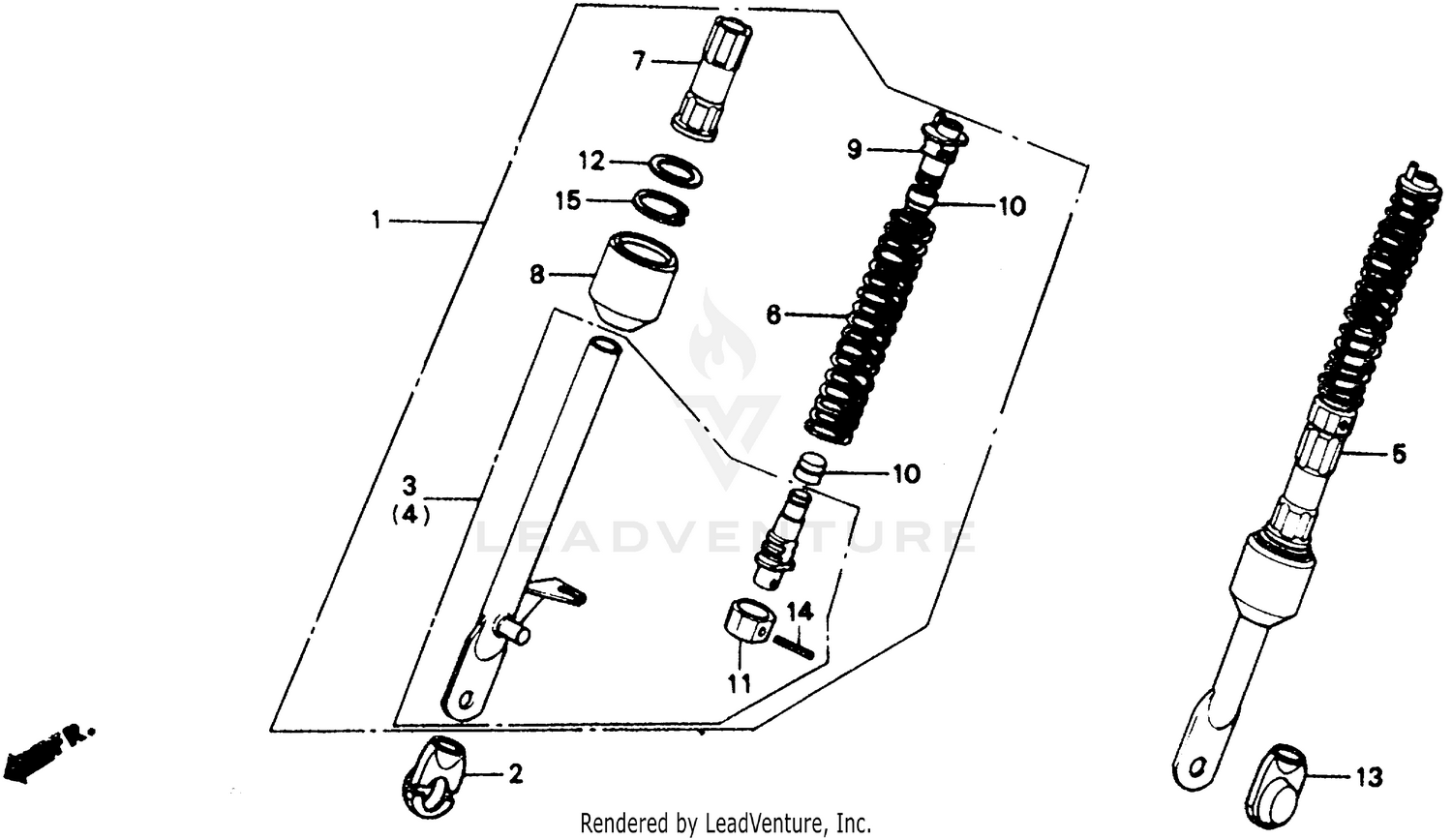

Front Cushion Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK ASSY., R. FR. (NOT AVAILABLE)
51400-165-600
|
$98.40 | ||
|
Unavailable |
|||
|
#3
PIPE, R. FR. FORK SLIDE (NOT AVAILABLE)
51450-165-600
|
$62.31 | ||
|
Unavailable |
|||
|
#4
PIPE, L. FR. FORK SLIDE HALF
51460-165-000
|
$138.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
FORK ASSY., L. FR.
51500-165-000
|
$152.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, FR. FORK
51501-120-000
|
$30.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUIDE, FR. FORK PIPE
51502-045-670
|
$20.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
DUST SEAL, FR. FORK
51503-165-003
|
$14.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
HOLDER, SPRING (UPPER)
51504-165-000
|
$28.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, FR. FORK STOPPER
51506-064-020
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
PISTON, SLIDE PIPE
51507-098-000
|
$13.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING, BACK-UP
51507-165-000
|
$4.96 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, SPRING
51526-098-000
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP (INNER) (34MM)
94520-34000
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
