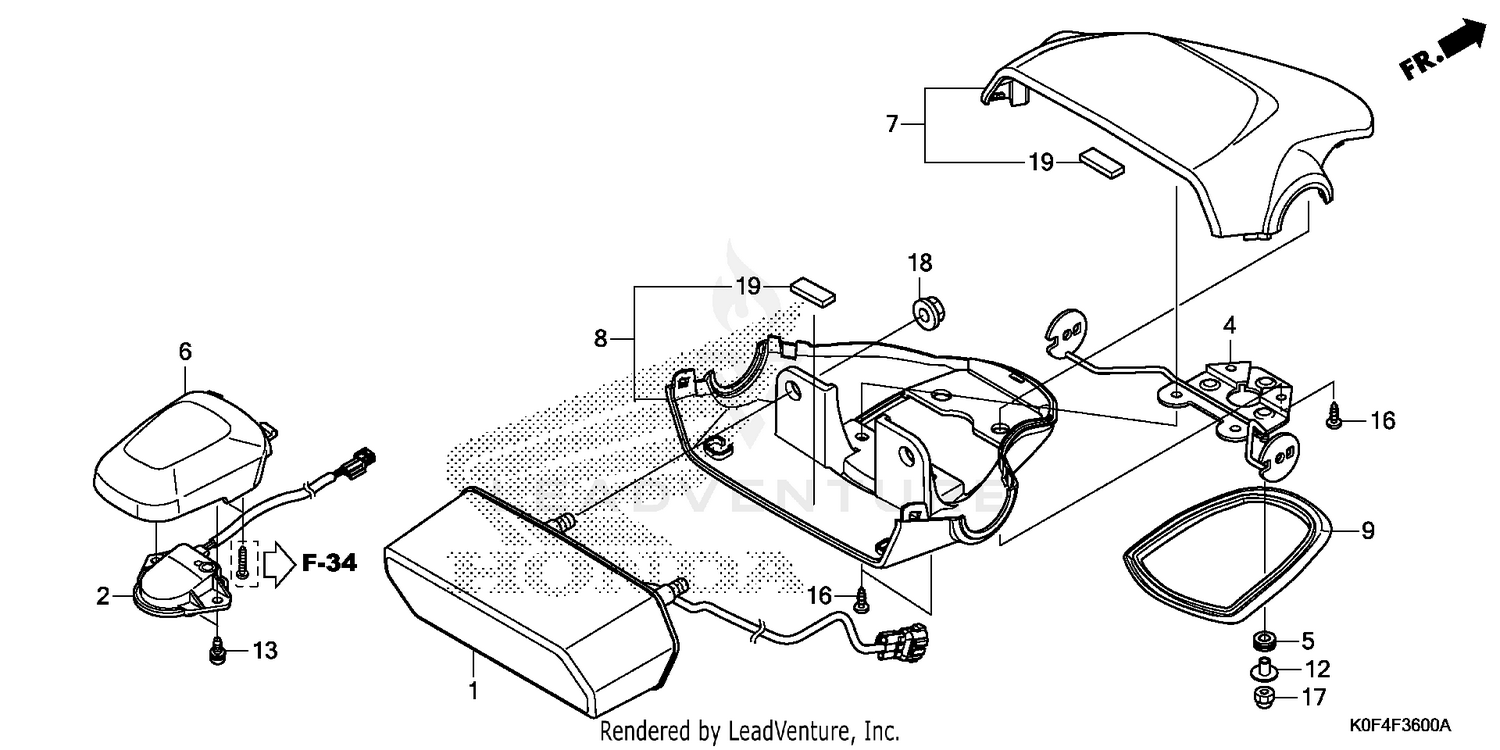

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT
33701-K0F-A01
|
$240.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
LIGHT ASSY., LICENSE
33720-K0F-T01
|
$185.42 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, TAILLIGHT
50316-K0F-A00
|
$129.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET, MAIN PIPE COVER
64312-KWW-640
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, LICENSE LIGHT
80103-K0F-T00
|
$13.69 | ||
|
Available to order. Add to View Price |
|||
|
#7
BASE, TAILLIGHT (UPPER)
80130-K0F-A01
|
$80.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
BASE, TAILLIGHT (LOWER)
80140-K0F-A01
|
$88.44 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, TAILLIGHT COVER
80150-K0F-T00
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, TAILLIGHT
90501-K0F-T00
|
$1.51 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW-WASHER (4X14)
90508-K0F-T00
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, TAPPING (4X16)
93903-34410
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, CAP (6MM)
94021-06000-0S
Superseded by 94021-06020
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, CAP (6MM)
94021-06020
|
$1.90 | ||
|
Unavailable |
|||
|
#17
NUT, CAP (6MM)
94021-06020-0S
Superseded by 94021-06020
|
$1.90 | ||
|
Unavailable |
|||
|
#17
NUT, CAP (6MM)
94022-06020
Superseded by 94021-06020
|
$1.90 | ||
|
Unavailable |
|||
|
#18
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
RUBBER, HANDLE COVER
53209-K0G-900
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
