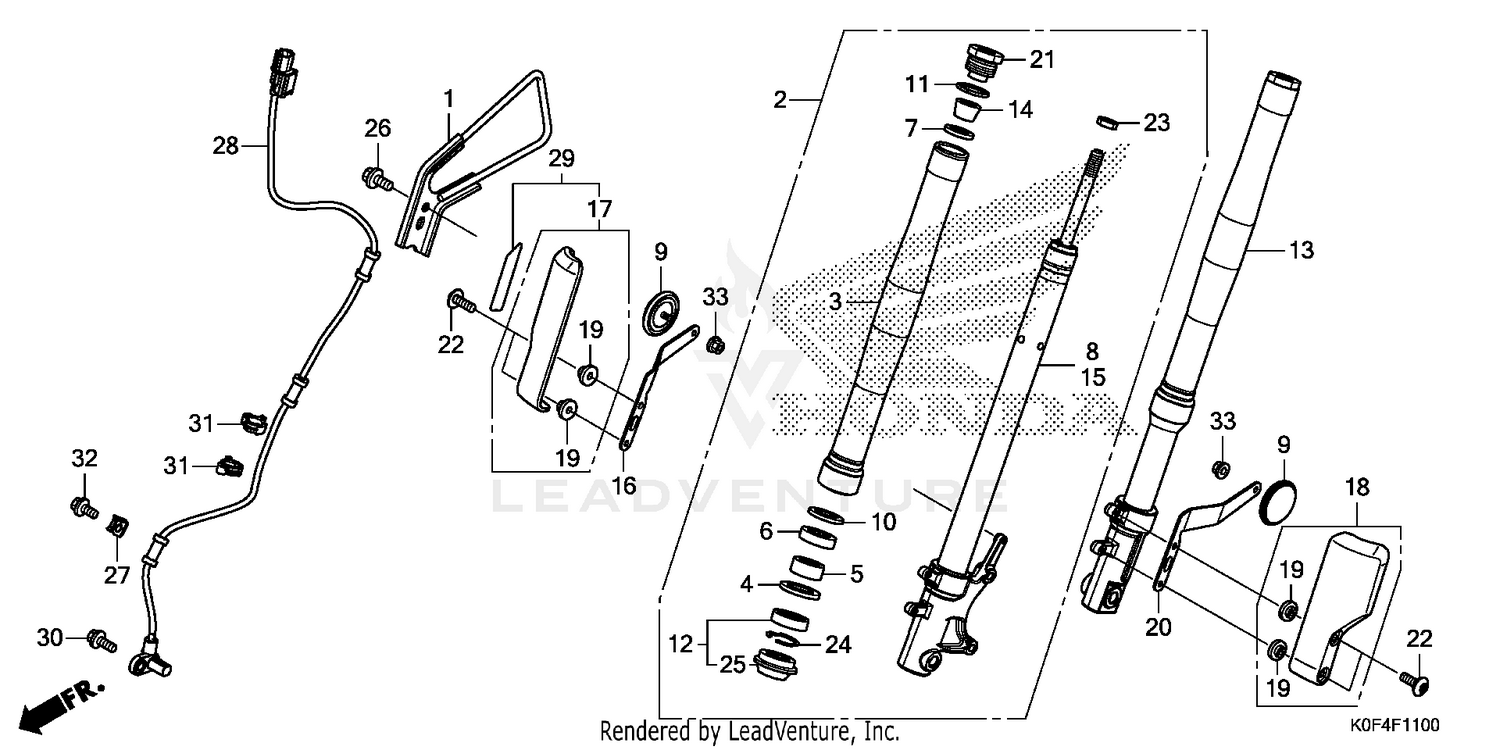

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUIDE, FR. BRAKE HOSE
45155-K0F-T00
|
$16.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK ASSY., R. FR. (TYPE1)
51400-K0F-J11ZA
|
$543.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE (OUTER) (RED)
51410-K0F-J01
|
$190.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING, BACK-UP (SHOWA)
51412-KK4-003
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH, GUIDE
51414-K0F-T01
|
$11.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH, SLIDER
51415-K20-901
|
$25.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAT
51419-K20-T21
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER, R. FR.
51425-K0F-D11
|
$329.53 | ||
|
Available to order. Add to View Price |
|||
|
#9
REFLECTOR, FR. REFLEX (AMBER)
33741-KTG-U01
|
$10.96 | ||
|
Available to order. Add to View Price |
|||
|
#10
RING B, PISTON
51438-K20-901
|
$18.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
51458-K20-901
|
$16.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL SET, FR. FORK (SHOWA)
51490-KRM-852
|
$25.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
FORK ASSY., L. FR. (TYPE1)
51500-K0F-J01ZA
|
$520.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER, STOPPER
51517-K20-T21
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER, L. FR.
51525-K0F-T01
|
$327.42 | ||
|
Available to order. Add to View Price |
|||
|
#16
STAY, R. FR. REFLECTOR
61102-K0F-A00
|
$23.38 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, L. FR. FORK
51620-K0F-T00
|
$24.22 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR, FR. FENDER
61101-KZZ-900
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#20
STAY, L. FR. REFLECTOR
61103-K0F-A00
|
$23.38 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FR. FORK
90123-K20-T21
|
$27.00 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN (6X18)
90130-K26-900
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, LOCK (12MM) (SOURCE: VINTAGE PARTS INC.)
90301-MB9-950
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#24
RING, OIL SEAL STOP (SHOWA)
90601-354-000
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#25
DUST SEAL (SHOWA)
91254-GAA-003
|
$20.60 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X12) (L. SIDE ONLY)
96001-06012-07
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#27
GUIDE, SENSOR WIRE
38515-K26-C10
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
SENSOR, FR. WHEEL SPEED
38520-K0F-J11
|
$42.18 | ||
|
Available to order. Add to View Price |
|||
|
#29
COVER, R. FR. FORK (TYPE1) (WL)
51650-K0F-D10ZA
|
$19.75 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X14) (NOT AVAILABLE)
90117-KZZ-J80
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLIP, CABLE (14MM)
90690-MCA-003
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X12) (L. SIDE ONLY)
96001-06012-07
|
$1.88 | ||
|
Unavailable |
|||
|
#33
NUT, U (6MM) (FUJI SEIMITSU)
90301-KGH-901
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
