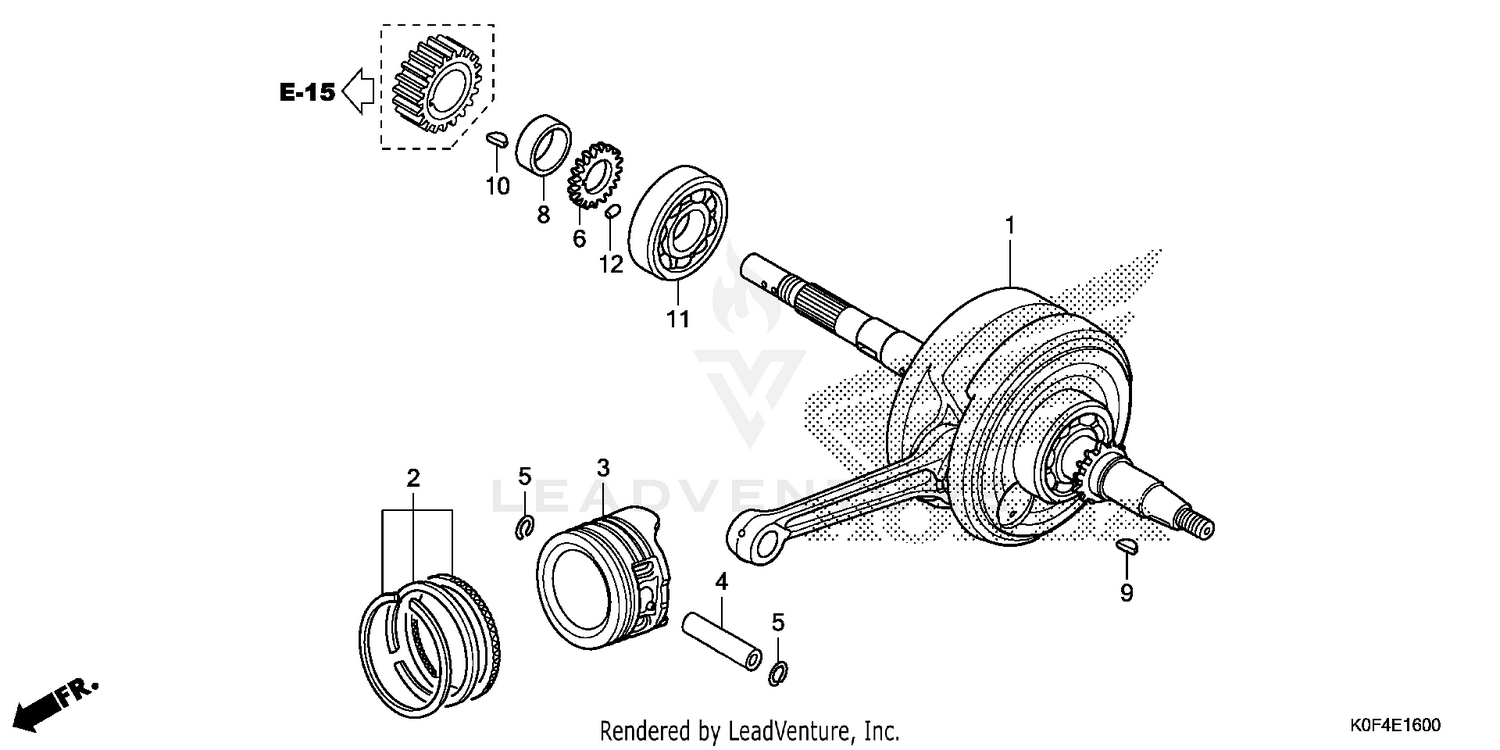

Crankshaft@piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT
13000-K26-B00
|
$157.51 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING SET, PISTON (STD) (RIKEN)
13012-KYZ-900
|
$15.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING SET, PISTON (0.25) (RIKEN)
13022-KYZ-900
|
$14.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING SET, PISTON (0.50) (RIKEN)
13032-KYZ-900
|
$15.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING SET, PISTON (0.75) (RIKEN)
13042-KYZ-900
|
$15.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING SET, PISTON (1.00) (RIKEN)
13052-KYZ-900
|
$14.82 | ||
|
Available to order. Add to View Price |
|||
|
#3
PISTON
13101-KYZ-900
|
$48.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PISTON (0.25)
13102-KYZ-901
|
$33.56 | ||
|
Available to order. Add to View Price |
|||
|
#3
PISTON (0.50)
13103-KYZ-901
|
$33.56 | ||
|
Available to order. Add to View Price |
|||
|
#3
PISTON (0.75)
13104-KYZ-901
|
$33.56 | ||
|
Available to order. Add to View Price |
|||
|
#3
PISTON (1.00)
13105-KYZ-901
|
$46.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, PISTON
13111-GB0-910
|
$14.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, PISTON
13111-087-000
Superseded by 13111-GB0-910
|
$14.15 | ||
|
Unavailable |
|||
|
#5
CLIP, PISTON PIN (13MM)
13115-GN5-910
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, OIL PUMP DRIVE (19T)
15341-KPH-900
|
$10.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, PRIMARY DRIVEN
23125-KPG-T00
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#9
KEY, WOODRUFF (25X14X4)
90701-HB6-000
Superseded by 90701-HB6-010
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#9
KEY, WOODRUFF (25X14X4)
90701-HB6-010
|
$4.76 | ||
|
Unavailable |
|||
|
#9
KEY, WOODRUFF (25X14X4)
90741-003-010
Superseded by 90701-HB6-010
|
$4.76 | ||
|
Unavailable |
|||
|
#10
KEY, WOODRUFF (4MM)
90741-KGH-900
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, RADIAL BALL (63/22) (NSK)
91001-KWS-901
|
$26.36 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
PIN, DOWEL (3X5)
94303-03050
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
