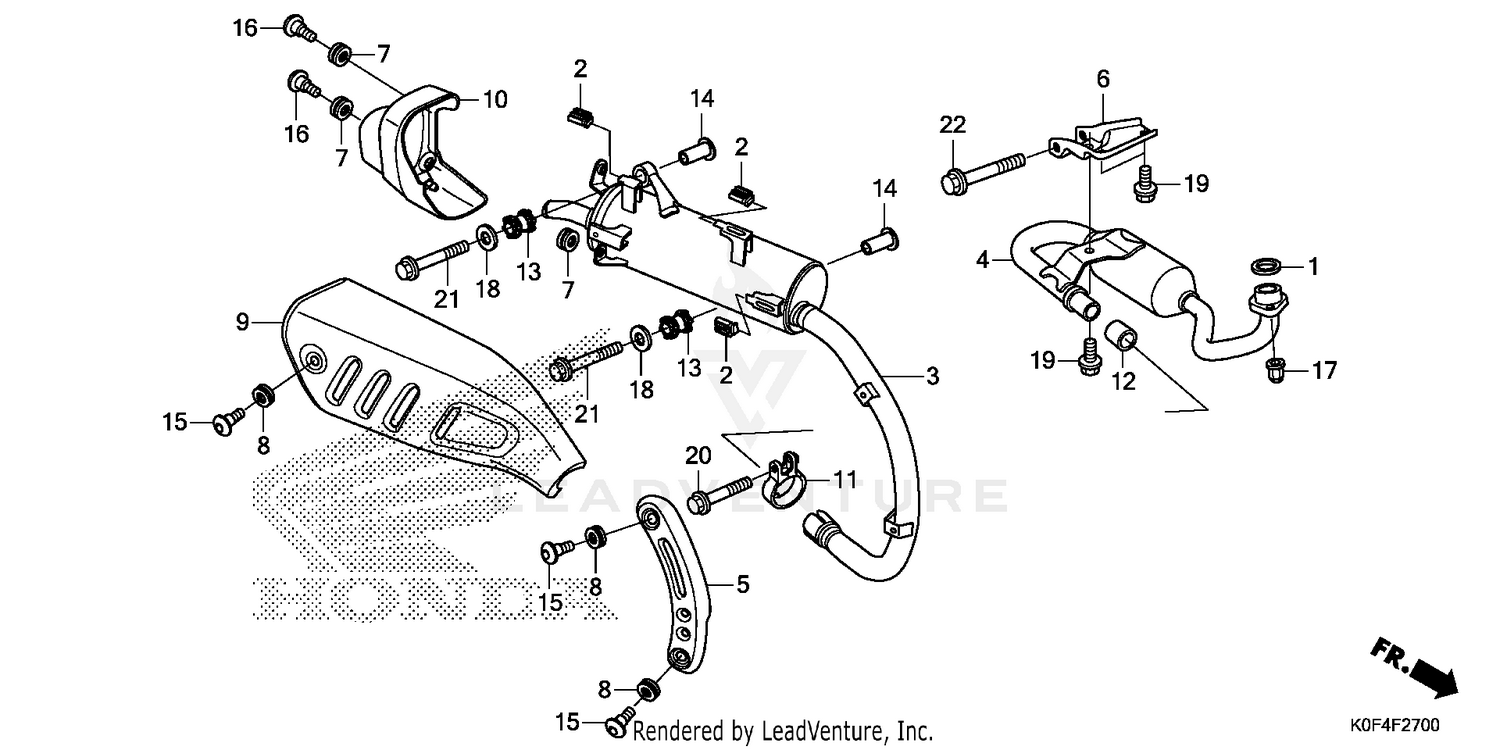

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, EX. PIPE
18291-GE2-920
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, PROTECTOR GASKET
18293-MCA-A20
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
MUFFLER, EX.
18310-K0F-T00
|
$362.82 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, EX.
18320-K0F-T00
|
$401.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
PROTECTOR, EX. PIPE
18325-K0F-T00
|
$35.16 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, EX. PIPE
18330-K0F-T00
|
$28.51 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER, MOUNT
18345-K15-920
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, PROTECTOR MOUNTING
18345-MBT-610
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PROTECTOR, MUFFLER
18356-K0F-T00
|
$123.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, TAIL CAP
18358-K0F-T00
|
$8.82 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND, MUFFLER
18371-K26-900
|
$42.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET, MUFFLER
18391-HB7-000
|
$14.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
RUBBER, MUFFLER MOUNTING
18421-K26-B00
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, MUFFLER MOUNTING
18422-K26-900
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN (6X12)
90113-GFP-B00
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN (6X14)
90113-K15-920
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, HEX. CAP (8MM)
90304-KPH-700
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLAIN (8MM)
94103-08700
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X18)
95701-08018-08
|
$1.68 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (8X32)
95701-08032-02
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT-WASHER (8X40)
95701-08040-07
Superseded by 90141-GGZ-J00
|
$2.76 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE (10X55)
95701-10055-08
|
$2.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
