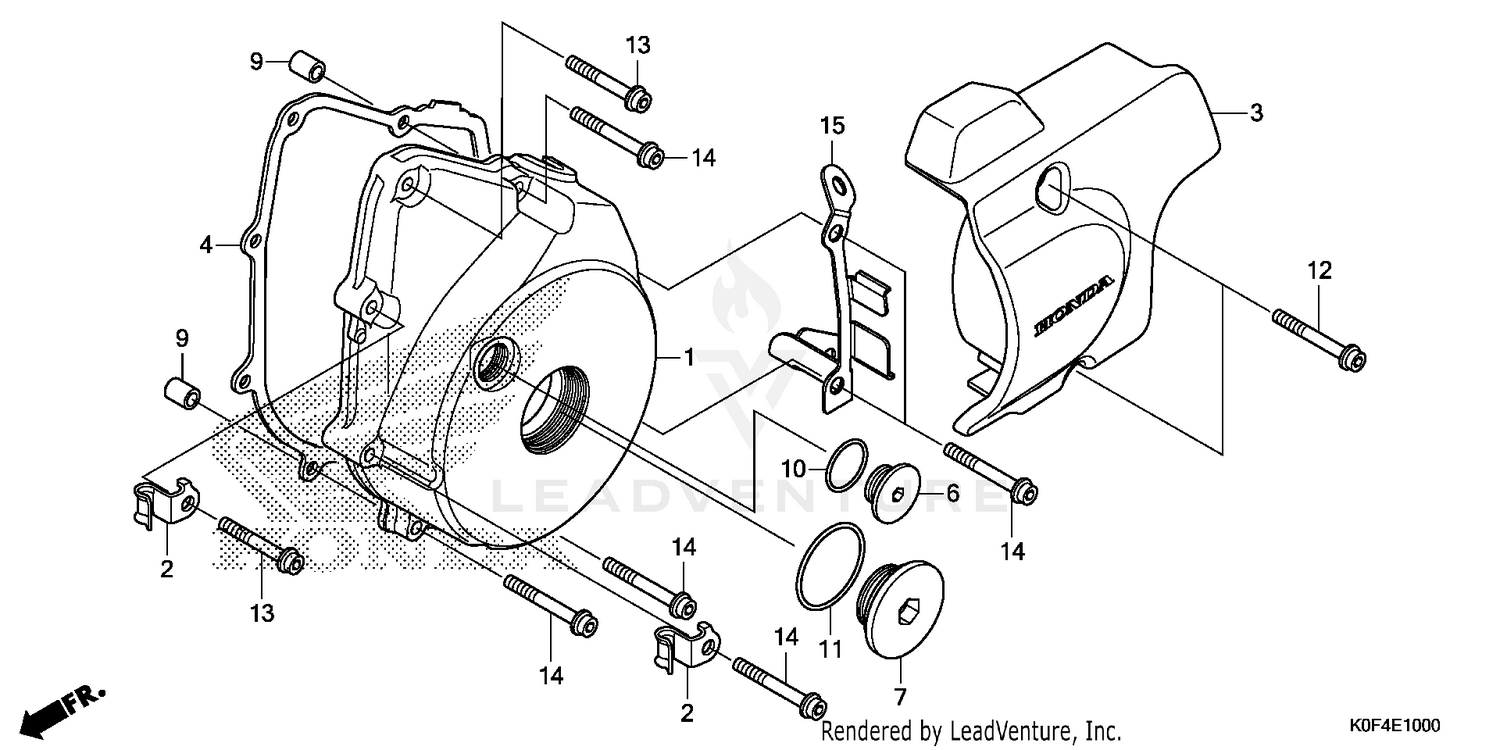

Left Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, L. CRANKCASE
11341-K0F-T00
|
$57.31 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP A, OIL TEMP SENSOR CORD
11346-K0F-T00
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER ASSY., L. RR.
11360-K0F-T00
|
$62.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, L. CRANKCASE COVER
11395-KPH-901
Superseded by 11395-K73-T60
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP (14MM)
90084-K0F-T00
|
$17.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP (30MM)
90087-K0F-T00
|
$22.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, DOWEL (8X12)
90702-KFM-900
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING (13.8X2.5)
91303-377-000
|
$4.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
O-RING (30MM)
91356-KWV-000
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE SOCKET (6X35)
90001-MJE-D00
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE SOCKET (6X28)
90003-MGZ-J00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE SOCKET (6X35)
90001-MJE-D00
|
$1.22 | ||
|
Unavailable |
|||
|
#15
STAY, SIDE STAND SWITCH
35711-K0F-T00
|
$10.40 | ||
|
Available to order. Add to View Price |
|||
