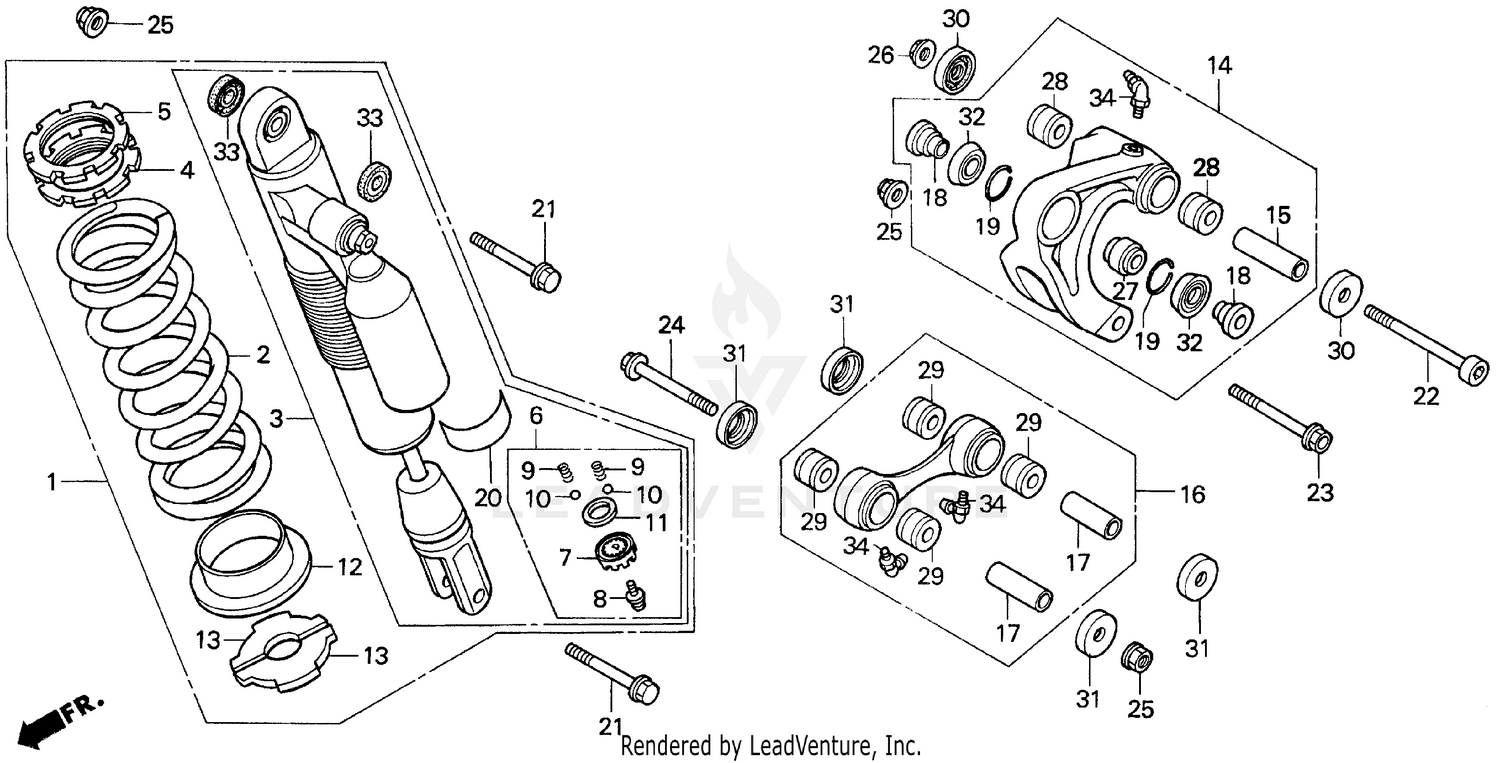

Rear Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABSORBER ASSY., RR.
52400-MY6-671
|
$1,243.73 | ||
|
Unavailable |
|||
|
#2
SPRING, RR. SHOCK ABSORBER
52401-MY6-671
|
$146.86 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER, RR.
52410-MY6-671
|
$955.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
ADJUSTER, SPRING
52422-KS7-701
|
$38.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, ADJUSTER
52423-KS7-701
|
$29.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE SET, TENSION ADJUSTING
52442-MN1-671
|
$31.56 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, TENSION ADJUSTING
52443-MN1-671
|
$12.91 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
52448-KF0-003
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, CLICK
52455-KF0-003
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
BALL
52456-KF0-003
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL, RING
52457-KN5-003
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAT C, SPRING
52458-MN1-681
|
$23.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
STOPPER, SPRING SEAT
52459-MN1-681
|
$25.64 | ||
|
Available to order. Add to View Price |
|||
|
#14
ARM ASSY., SHOCK ABSORBER
52460-KN5-000
|
$321.06 | ||
|
Unavailable |
|||
|
#15
COLLAR, CUSHION ARM PIVOT
52463-KN5-000
|
$23.18 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROD ASSY., SHOCK CONNECTING
52470-MN1-670
|
$235.69 | ||
|
Unavailable |
|||
|
#17
COLLAR, CUSHION CONNECTING ROD
52473-KN5-000
|
$14.75 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR, DAMPER
52486-KN5-000
|
$9.80 | ||
|
Available to order. Add to View Price |
|||
|
#19
RING, STOPPER
52487-KN5-000
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (10X46)
90103-KE8-003
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, SOCKET (12X102)
90128-MN1-670
|
$18.71 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (10X77)
90129-KF0-000
|
$18.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (10X65)
90151-MG3-000
|
$14.40 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, U (10MM)
90304-GE8-003
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
NUT, FLANGE (12MM)
90306-KF0-003
|
$4.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BEARING, SPHERICAL (14MM)
91077-KN5-004
|
$25.84 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING, CUSHION ARM (NTN)
91078-KN5-003
|
$34.45 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING, CONNECTING ROD
91079-KN5-003
|
$15.40 | ||
|
Available to order. Add to View Price |
|||
|
#30
SEAL, CUSHION ARM
91261-KN5-003
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#31
SEAL, CUSHION CONNECTING ROD PIVOT
91262-KN5-003
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#32
DUST SEAL B
91351-KN5-004
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#33
DUST SEAL, RR. CUSHION (UPPER)
91351-KS7-003
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#34
NIPPLE, GREASE (B.T6S)
96201-80000
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
