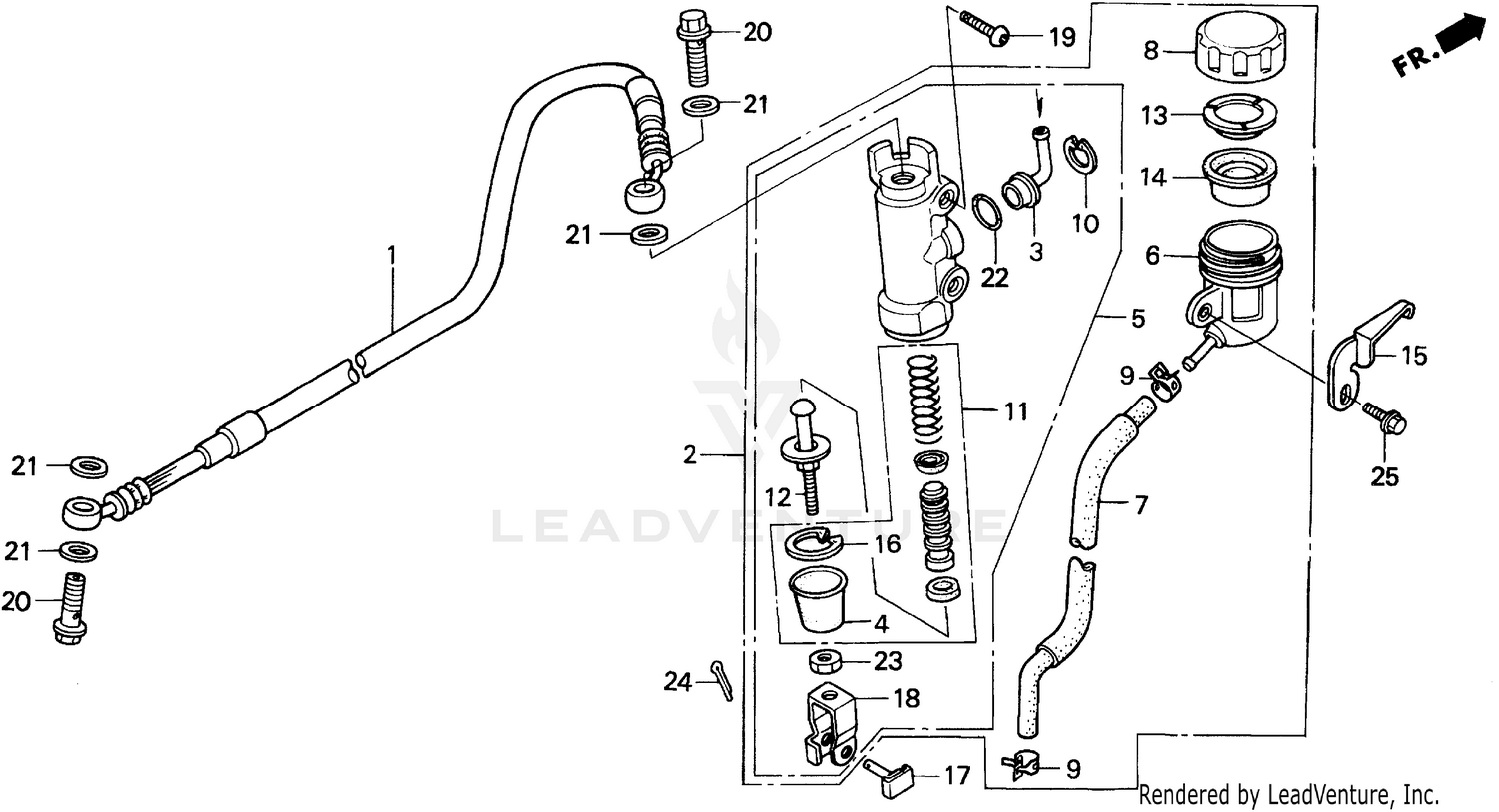

Rear Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, RR. BRAKE
43125-MY6-671
|
$85.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
MASTER CYLINDER ASSY., RR. BRAKE (NISSIN) (N/A - USE P/N 43510-KZ1-305) (ALT. PNO: 43510-KZ1-305)
43500-MY6-671
|
$206.31 | ||
|
Unavailable |
|||
|
#3
CONNECTOR, MASTER CYLINDER
43503-KS6-701
|
$12.07 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOOT
43504-MB2-006
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUP, MASTER CYLINDER OIL
43511-KS6-702
|
$31.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE, MASTER CYLINDER
43512-MY6-670
|
$21.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, MASTER CYLINDER
43513-KS6-701
|
$17.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP, MASTER CYLINDER OIL HOSE
43514-KS6-701
|
$15.89 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP, RR. MASTER CYLINDER
43517-KS6-701
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
PISTON SET, MASTER CYLINDER
43520-MJ6-305
Superseded by 43520-MJ6-315
|
$54.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
PISTON SET, MASTER CYLINDER
43520-MJ6-315
|
$54.98 | ||
|
Unavailable |
|||
|
#12
ROD, PUSH
43530-KAE-006
|
$32.98 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, DIAPHRAGM
45518-GM9-711
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
DIAPHRAGM
45520-GM9-711
|
$11.09 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER, MASTER CYLINDER CAP
45535-KW3-000
|
$16.82 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP
46182-500-013
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN D, JOINT
46503-KW3-000
Superseded by 95015-54000
|
$5.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
PIN D, JOINT
95015-54000
|
$5.33 | ||
|
Unavailable |
|||
|
#18
JOINT, BRAKE ROD
46504-KV6-702
|
$9.85 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, RR. MASTER CYLINDER
90109-KZ9-000
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, OIL (10X22)
90145-MS9-611
Superseded by 90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, OIL (10X22)
90145-MS9-612
|
$9.20 | ||
|
Unavailable |
|||
|
#21
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
O-RING (14.8X2.4)
91212-422-006
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT,HEX 8MM
94002-080000S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, SPLIT (2.0X12)
94201-20120
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X16)
96500-06016-00
Superseded by 96300-06016-00
|
$1.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X16)
96300-06016-00
|
$1.07 | ||
|
Unavailable |
|||
