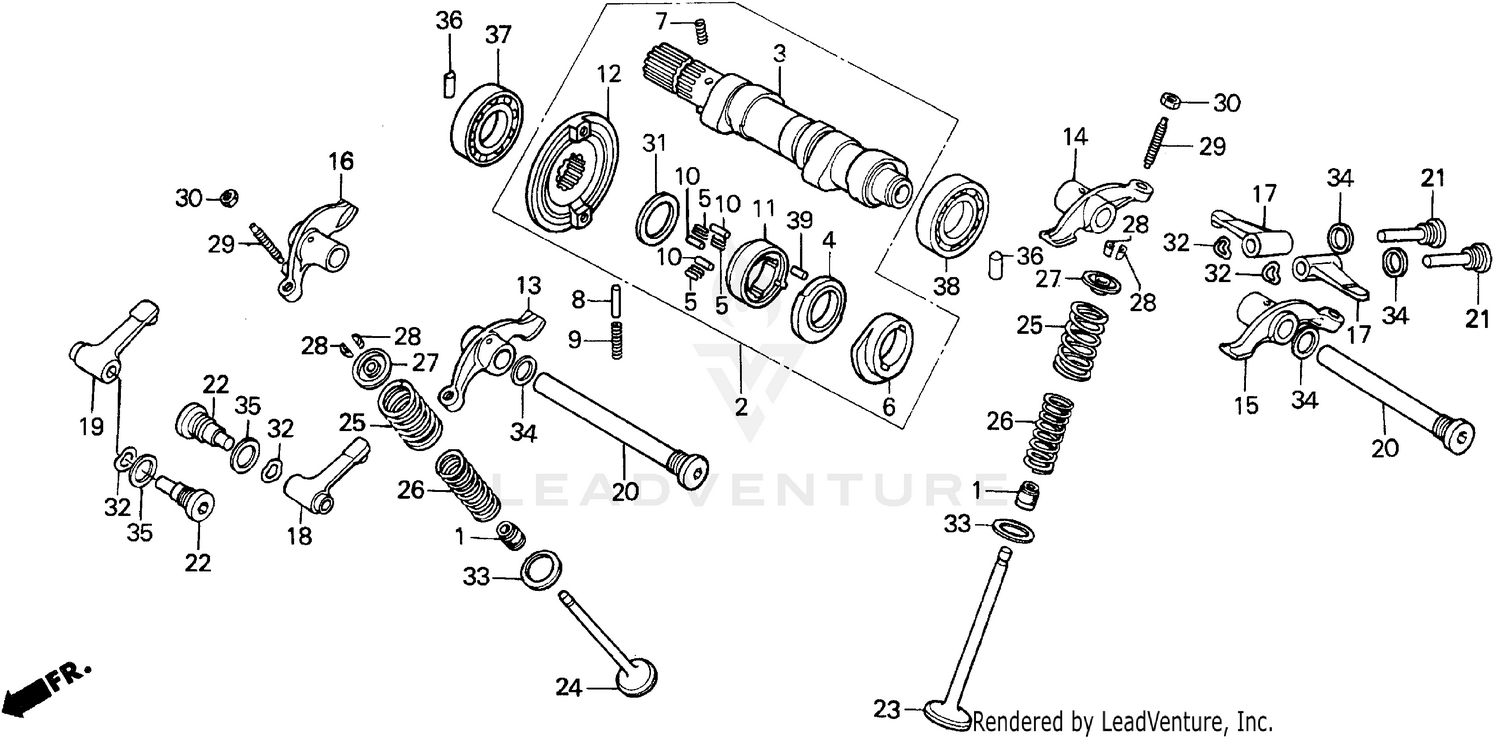

Camshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL, VALVE STEM (NOK)
12209-MN1-671
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAMSHAFT ASSY.
14000-MN9-872
Superseded by 14000-MAN-690
|
$317.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAMSHAFT ASSY.
14000-MAN-690
|
$317.18 | ||
|
Unavailable |
|||
|
#3
CAMSHAFT
14100-MN9-872
|
$292.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAM, REVERSE
14102-MN1-670
|
$75.76 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, ROLLER
14103-MN1-670
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, DECOMPRESSION CAM
14105-MK4-862
Superseded by 14105-MAN-690
|
$53.24 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, DECOMPRESSION
14106-MN1-670
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUNGER, CAM SETTING
14108-MN1-670
|
$19.22 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, PLUNGER
14109-MN1-670
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROLLER (4X10)
14115-MN1-670
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLUTCH OUTER, DECOMPRESSION
14121-MN1-670
|
$75.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, CAM SPROCKET
14325-MN1-670
|
$82.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
ARM A, VALVE ROCKER
14431-MG3-040
|
$71.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
ARM D, VALVE ROCKER
14431-MK4-861
|
$71.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
ARM B, VALVE ROCKER
14441-MG3-040
|
$71.29 | ||
|
Available to order. Add to View Price |
|||
|
#16
ARM C, VALVE ROCKER
14442-MN1-671
|
$71.31 | ||
|
Available to order. Add to View Price |
|||
|
#17
ARM, IN. VALVE SUB-ROCKER
14445-KF0-000
|
$38.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
ARM, L. EX. VALVE SUB-ROCKER
14446-MK5-000
|
$31.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
ARM, R. EX. VALVE SUB-ROCKER
14447-MK5-000
|
$31.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, ROCKER ARM SHAFT
14451-MK2-000
|
$47.47 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHAFT A, SUB-ROCKER ARM
14455-MN1-670
|
$25.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHAFT B, SUB-ROCKER ARM
14456-MN9-000
|
$38.13 | ||
|
Available to order. Add to View Price |
|||
|
#23
VALVE, IN.
14711-MG3-000
|
$63.44 | ||
|
Available to order. Add to View Price |
|||
|
#24
VALVE, EX.
14721-MG3-000
|
$95.22 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPRING, VALVE (OUTER) (NIPPON)
14751-MG3-003
|
$12.82 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING, VALVE (INNER) (NIPPON)
14761-MG3-003
|
$9.36 | ||
|
Available to order. Add to View Price |
|||
|
#27
RETAINER, VALVE SPRING
14771-MK4-860
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#28
COTTER, VALVE
14781-MB9-000
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, TAPPET ADJUSTING
90012-MK2-000
|
$9.96 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, TAPPET ADJUSTING
90206-657-000
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, THRUST (17X22X0.75)
90401-MN1-670
|
$4.36 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, WAVE
90406-KF0-003
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, THRUST (21MM)
90453-473-000
|
$5.51 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, SEALING (14MM)
90544-KF0-000
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER (12MM)
90545-KF0-000
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIN, DOWEL (10X20)
90702-MN1-670
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING, RADIAL BALL (18X37X9) (NTN)
91002-MN1-671
|
$48.55 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING, RADIAL BALL (6904)
91003-KF0-008
|
$17.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
ROLLER (4X10)
96220-40100
|
$0.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
