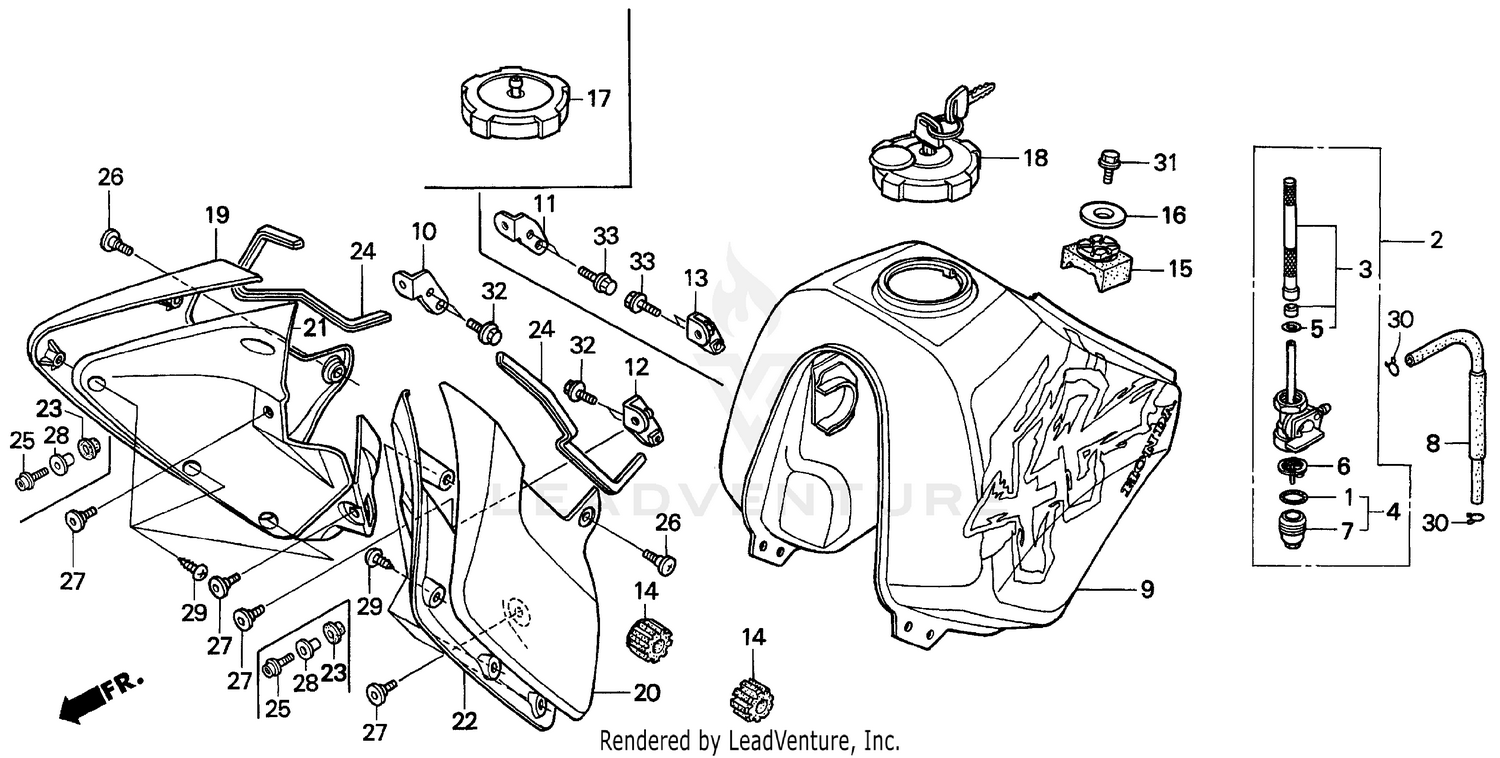

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, FUEL STRAINER CUP
16173-001-004
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
PETCOCK ASSY.
16950-MY6-670
Superseded by 16950-MY6-791
|
$109.51 | ||
|
Available to order. Add to View Price |
|||
|
#2
PETCOCK ASSY.
16950-MY6-791
|
$109.51 | ||
|
Unavailable |
|||
|
#3
SCREEN SET, FUEL STRAINER
16952-HA8-005
|
$55.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
16075-GHB-720
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
16195-657-300
Superseded by 16075-GHB-720
|
$3.67 | ||
|
Unavailable |
|||
|
#5
O-RING
16958-MA1-731
Superseded by 16075-GHB-720
|
$3.67 | ||
|
Unavailable |
|||
|
#6
FILTER, CUP
16959-471-831
|
$11.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUP, FUEL STRAINER
16967-GA6-671
|
$28.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
TUBE, FUEL
17515-MY6-670
|
$12.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
TANK SET, FUEL *NH138* (WL) (SHASTA WHITE) (NOT AVAILABLE)
17520-MY6-670ZA
|
$593.07 | ||
|
Unavailable |
|||
|
#10
STAY, R. SHROUD (INNER)
17523-MY6-670
|
$23.51 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAY, L. SHROUD (INNER)
17524-MY6-670
|
$22.93 | ||
|
Unavailable |
|||
|
#14
CUSHION, FR. FUEL TANK
17611-MG2-000
|
$13.85 | ||
|
Available to order. Add to View Price |
|||
|
#15
RUBBER, RR. FUEL TANK
17613-MY6-670
|
$11.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, TANK MOUNT SETTING
17614-MY6-670
|
$14.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP, FUEL FILLER
17620-MN9-013
|
$67.36 | ||
|
Unavailable |
|||
|
#19
SHROUD, R. *NH138* (SHASTA WHITE) SHROUD, R. *R134*
19030-MY6-670ZA
Superseded by 19030-MY6-700ZA
|
$94.97 | ||
|
Unavailable |
|||
|
#19
SHROUD, R. *NH138* (SHASTA WHITE) SHROUD, R. *R134*
19030-MY6-700ZA
|
$94.97 | ||
|
Unavailable |
|||
|
#20
SHROUD, L. *NH138* (SHASTA WHITE) SHROUD, L. *R134*
19040-MY6-670ZA
Superseded by 19040-MY6-700ZA
|
$94.97 | ||
|
Unavailable |
|||
|
#20
SHROUD, L. *NH138* (SHASTA WHITE) SHROUD, L. *R134*
19040-MY6-700ZA
|
$94.97 | ||
|
Unavailable |
|||
|
#21
PANEL, R. SHROUD (INNER) *NH157R* (HYPER GRAY)
19050-MY6-505ZA
|
$96.94 | ||
|
Unavailable |
|||
|
#21
PANEL, R. SHROUD (INNER) *NH157R* (HYPER GRAY)
19050-MY6-670ZA
Superseded by 19050-MY6-505ZA
|
$96.94 | ||
|
Unavailable |
|||
|
#22
PANEL, L. SHROUD (INNER) *NH157R* (HYPER GRAY)
19060-MY6-505ZA
|
$187.57 | ||
|
Available to order. Add to View Price |
|||
|
#22
PANEL, L. SHROUD (INNER) *NH157R* (HYPER GRAY)
19060-MY6-670ZA
Superseded by 19060-MY6-505ZA
|
$187.57 | ||
|
Unavailable |
|||
|
#26
SCREW, PAN (6X22)
90112-MS2-000
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN (6X13)
90124-MY6-670
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, TAPPING (4X12)
93903-24310
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP, TUBE (B12)
95002-02120
|
$2.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X10)
96300-06010-00
|
$1.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X10)
96500-06010-00
Superseded by 96300-06010-00
|
$1.07 | ||
|
Unavailable |
|||
