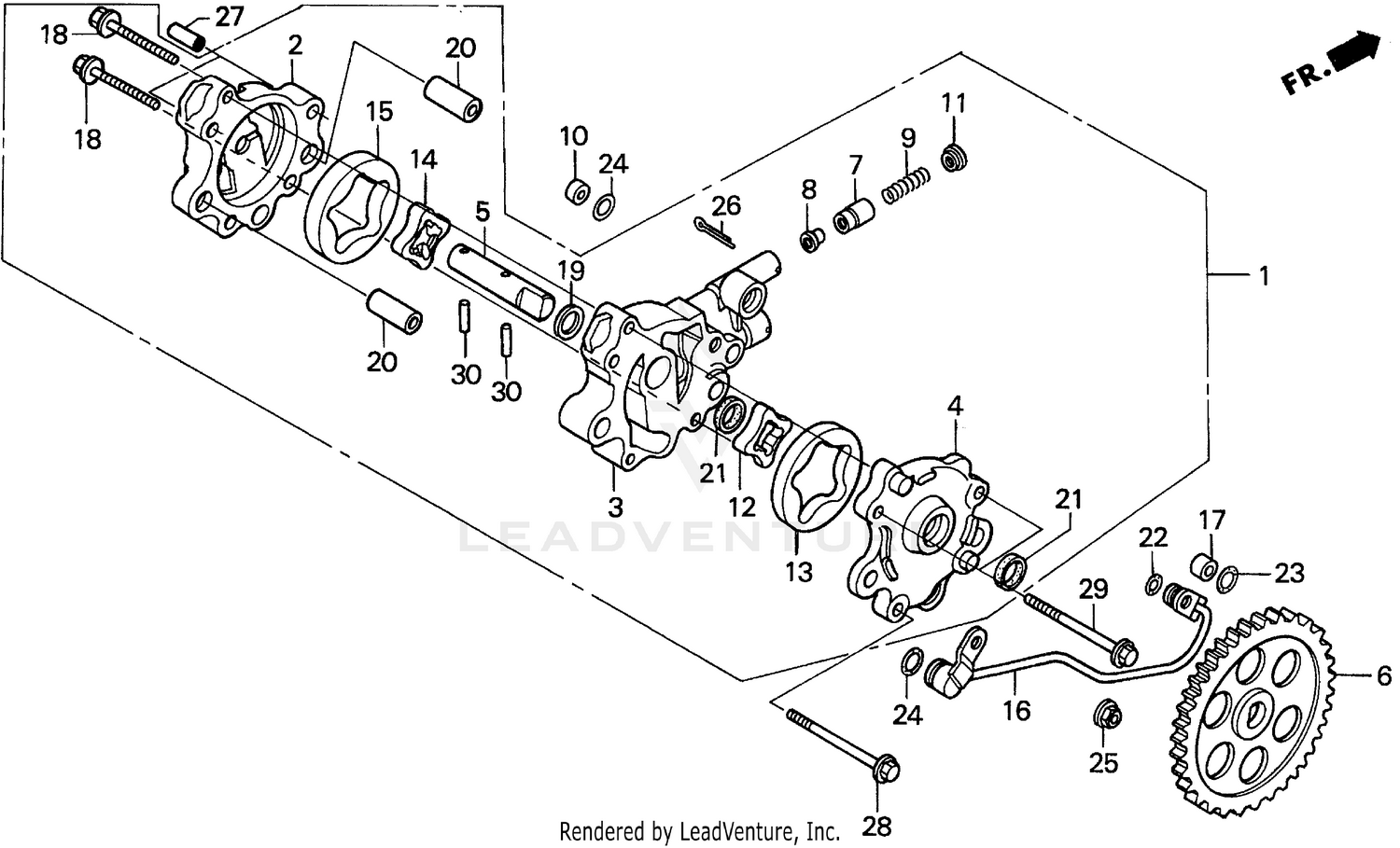

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY., OIL
15100-MY6-670
|
$208.27 | ||
|
Available to order. Add to View Price |
|||
|
#2
BASE, OIL PUMP
15101-MY6-670
|
$43.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER, OIL PUMP
15102-MY6-670
|
$43.58 | ||
|
Unavailable |
|||
|
#4
BODY, OIL PUMP
15103-MY6-670
|
$40.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, OIL PUMP
15104-MN1-770
|
$18.10 | ||
|
Unavailable |
|||
|
#6
GEAR, OIL PUMP DRIVEN (47T)
15105-MN1-670
Superseded by 15105-MN1-671
|
$87.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, OIL PUMP DRIVEN (47T)
15105-MN1-671
|
$87.73 | ||
|
Unavailable |
|||
|
#7
VALVE, OIL LEAK STOPPER
15106-MG3-000
|
$19.38 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL, LEAK STOPPER
15107-MG3-000
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, OIL LEAK STOPPER
15108-MG3-000
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
ORIFICE (5.5MM)
15109-MG3-000
|
$13.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAT B, SPRING
15111-MG3-000
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
ROTOR A, OIL PUMP (INNER)
15115-MG3-000
|
$19.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
ROTOR A, OIL PUMP (OUTER)
15116-MG3-000
|
$31.18 | ||
|
Available to order. Add to View Price |
|||
|
#14
ROTOR (INNER)
15121-MG3-000
|
$23.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
ROTOR (OUTER)
15122-MG3-000
|
$35.78 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIPE, OIL
15510-MK2-000
|
$58.62 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOLDER
17958-197-300
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X35) (CT200)
90014-ZE6-000
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, THRUST (11MM)
90456-333-000
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, DOWEL (8X24)
90701-MG3-000
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL (11X15X3) (KOYO)
91208-MN1-771
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING (7X1.7)
91301-473-003
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING (6.8X1.9)
91302-HA0-004
Superseded by 91306-PJ4-000
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING (6.8X1.9)
91306-PJ4-000
|
$3.78 | ||
|
Unavailable |
|||
|
#23
O-RING (9.8X1.9)
91302-PJ4-000
Superseded by 91305-PE2-003
|
$2.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
O-RING (9.8X1.9)
91302-PJ4-004
Superseded by 91305-PE2-003
|
$2.77 | ||
|
Unavailable |
|||
|
#23
O-RING (9.8X1.9)
91305-PE2-003
|
$2.77 | ||
|
Unavailable |
|||
|
#24
O-RING (1.5X9.5)
91306-MG3-000
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, FLANGE (6MM)
94050-06080
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
PIN, COTTER (3.0X45)
94201-03200
Superseded by 94201-30450
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, COTTER (3.0X45)
94201-30200
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#26
PIN, COTTER (3.0X45)
94201-30250
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#26
PIN, COTTER (3.0X45)
94201-30280
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#26
PIN, COTTER (3.0X45)
94201-30300
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#26
PIN, COTTER (3.0X45)
94201-30400
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#26
PIN, SPLIT (3.0X45)
94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#27
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X55)
96001-06055-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X60)
96001-06060-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#30
ROLLER (4X15.8)
96220-40158
|
$0.51 | ||
|
Available to order. Add to View Price |
|||
