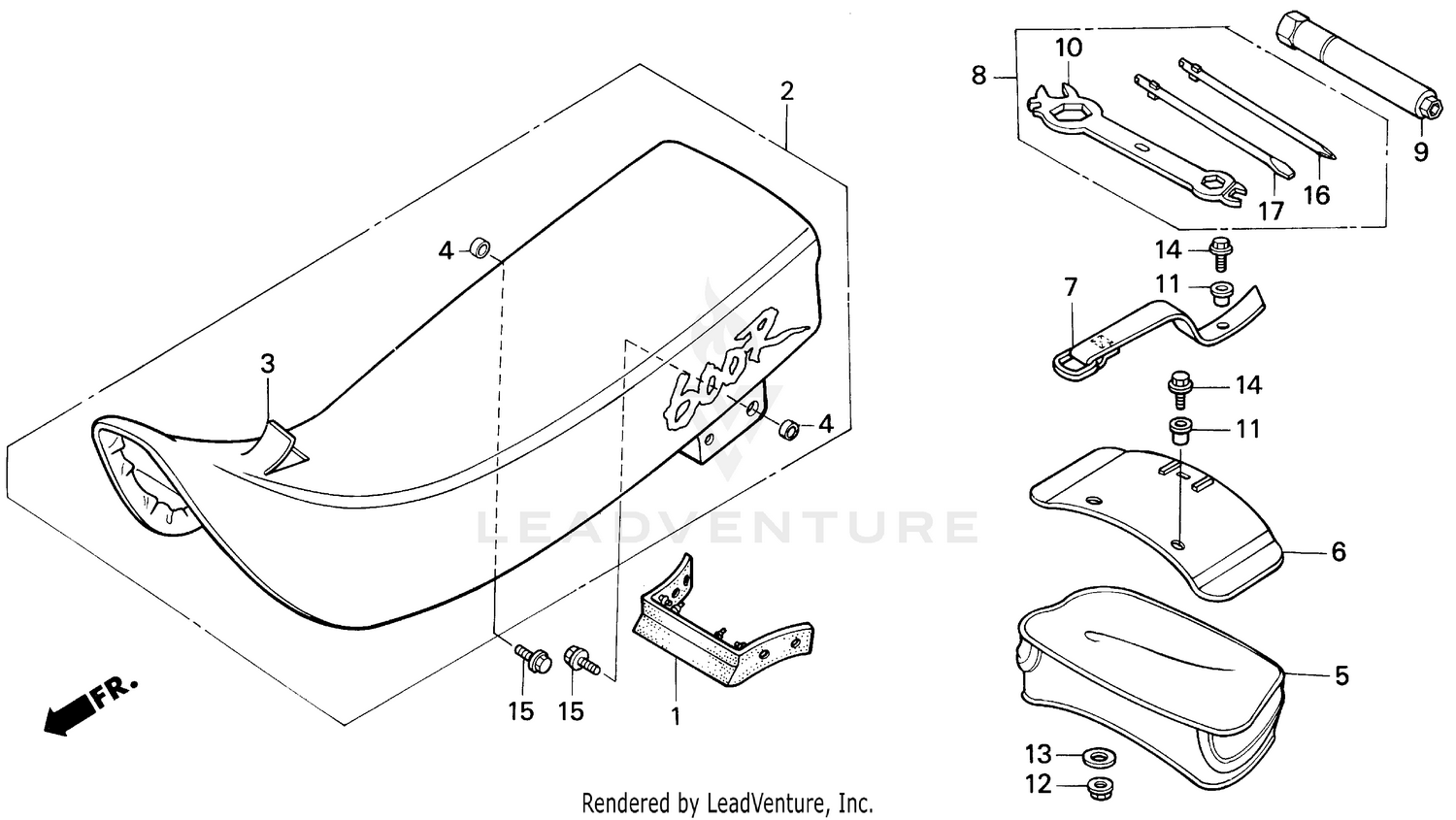

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER, SEAT (LOWER)
77120-MK2-670
|
$26.31 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAT (TYPE1)
77200-MAG-770
Superseded by 77200-MAG-A00ZA
|
$282.67 | ||
|
Unavailable |
|||
|
#2
SEAT (TYPE1)
77200-MAG-A00ZA
|
$282.67 | ||
|
Unavailable |
|||
|
#2
SEAT (TYPE1)
77200-MAG-A20ZA
Superseded by 77200-MAG-A00ZA
|
$282.67 | ||
|
Unavailable |
|||
|
#3
LEATHER, SEAT (TYPE1) (NO LETTERS PRINTED)
77201-MAG-305
Superseded by 77201-MAG-860ZA
|
$102.15 | ||
|
Unavailable |
|||
|
#4
COLLAR, RR. FENDER
80108-ME4-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAG, TAIL
83501-MAG-770
Superseded by 83501-MY6-A90
|
$135.13 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAG, TAIL
83501-MY6-A90
|
$135.13 | ||
|
Unavailable |
|||
|
#6
PLATE, TAIL BAG (LOWER)
83502-KN5-670
|
$21.07 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND, TAIL BAG
83506-KZ1-600
|
$18.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
TOOL SET
89010-KF0-000
|
$27.00 | ||
|
Unavailable |
|||
|
#9
WRENCH, PLUG
89216-MB0-000
|
$32.07 | ||
|
Available to order. Add to View Price |
|||
|
#10
WRENCH, EYE (24MM)
89225-KF0-000
|
$55.01 | ||
|
Unavailable |
|||
|
#11
COLLAR C
90003-438-850
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
WASHER, PLAIN (6MM)
94103-06000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X20)
96300-06020-00
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (8X14)
96300-08014-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
DRIVER 1, PLUS SCREW (NO.2)
99003-10000
|
$4.12 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
DRIVER 3, MINUS SCREW (NO.2)
99003-30000
|
$4.12 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
