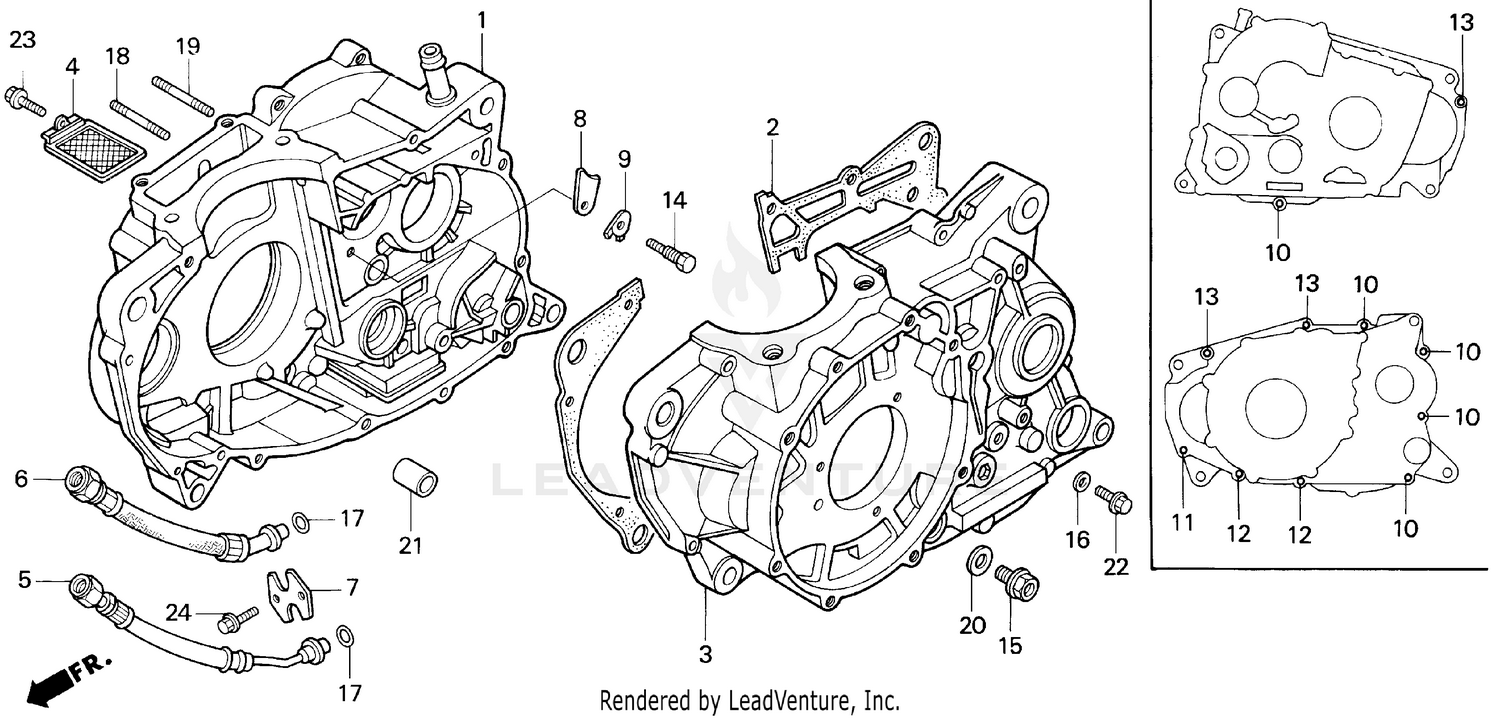

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE, R.
11100-MN1-670
|
$429.05 | ||
|
Unavailable |
|||
|
#2
GASKET, CRANKCASE
11191-MN1-700
Superseded by 11191-MN1-702
|
$29.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANKCASE, L.
11200-MN1-670
|
$516.92 | ||
|
Unavailable |
|||
|
#4
SCREEN, OIL FILTER (KOYO)
15421-MN1-671
|
$13.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE A, OIL
15610-MN1-702
|
$137.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE B, OIL
15620-MN1-670
|
$135.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE
15630-MG3-010
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, BEARING SETTING
23521-MG3-000
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, LOCK (8MM)
23523-MG2-790
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, SOCKET (6X32)
90006-KN8-730
|
$3.43 | ||
|
Unavailable |
|||
|
#11
BOLT, SOCKET (6X40)
90007-KN8-730
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, SOCKET (6X45)
90008-KN8-730
|
$3.63 | ||
|
Unavailable |
|||
|
#13
BOLT, SOCKET (6X50)
90009-KN8-730
|
$3.72 | ||
|
Unavailable |
|||
|
#14
BOLT, SPECIAL (8MM)
90088-MG3-000
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, DRAIN PLUG (12X15)
90131-883-000
Superseded by 90131-896-650
|
$2.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, DRAIN PLUG (12X15)
90131-896-650
|
$2.76 | ||
|
Unavailable |
|||
|
#16
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
GASKET, RUBBER (10.5MM)
91302-MG2-792
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, STUD (6X22)
92900-06022-0E
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, STUD (6X35)
92900-06035-0E
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PIN, DOWEL (14X20)
94301-14200
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (10X16)
95701-10016-07
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X16)
96001-06016-07
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
