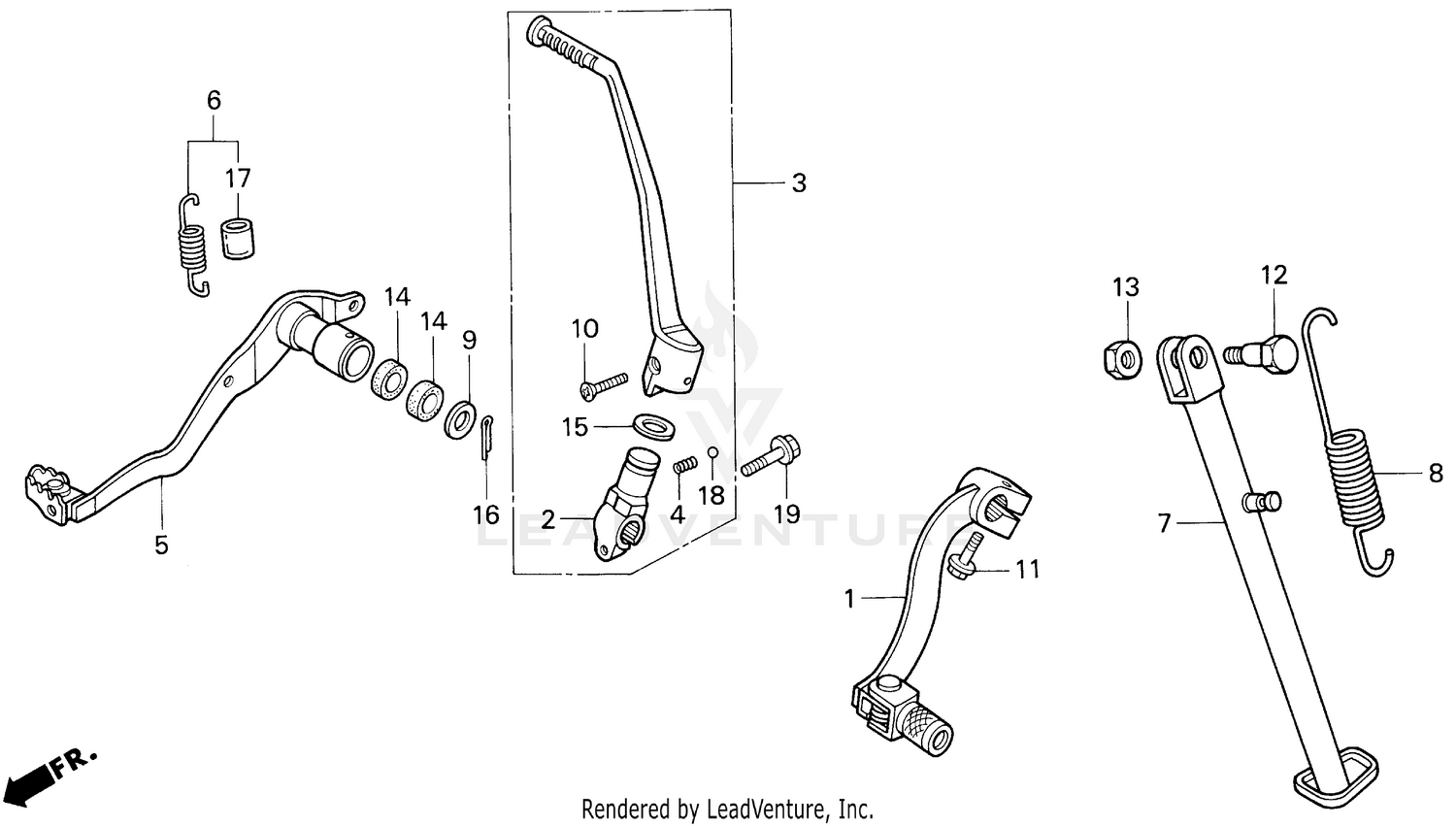

Brake Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL ASSY., CHANGE
24700-MN1-000
|
$71.08 | ||
|
Unavailable |
|||
|
#2
JOINT, KICK ARM
28241-MN1-671
|
$59.04 | ||
|
Unavailable |
|||
|
#3
ARM ASSY., KICK STARTER
28300-MN1-671
|
$192.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, KICK STARTER STOPPER
28333-124-000
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
PEDAL, BRAKE
46500-MN1-680
Superseded by 46500-MN1-710
|
$80.82 | ||
|
Unavailable |
|||
|
#5
PEDAL, BRAKE
46500-MN1-710
|
$80.82 | ||
|
Unavailable |
|||
|
#6
SPRING ASSY., BRAKE PEDAL
46515-MN1-680
|
$10.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAR, SIDE STAND
50530-MN1-670
|
$63.62 | ||
|
Unavailable |
|||
|
#8
SPRING, SIDE STAND
50535-KN5-670
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, BUSH
53312-657-000
|
$8.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, KICK ARM
90101-KN5-670
|
$3.72 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE (6X20)
90102-MN1-670
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, SIDE STAND PIVOT
90108-KG0-000
|
$10.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, U (10MM) (FUSE RASHI)
90304-GE8-003
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
DUST SEAL (15X20X3)
91251-MT4-000
Superseded by 91251-MT4-003
|
$4.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
DUST SEAL (15X20X3)
91251-MT4-003
|
$4.78 | ||
|
Unavailable |
|||
|
#15
DUST SEAL (19X25X4.1) (ARAI)
91303-KA3-731
Superseded by 91303-KA3-732
|
$6.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
DUST SEAL (19X25X4.1) (ARAI)
91303-KA3-732
|
$6.95 | ||
|
Unavailable |
|||
|
#16
PIN, SPLIT (2.5X30)
94201-25300
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#17
TUBE, VINYL (16X19X20) (95003-50001-10M) (NOT AVAILABLE)
95003-50002-20
|
$0.58 | ||
|
Unavailable |
|||
|
#18
BALL, STEEL (#8) (1/4)
96211-08000
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X28)
96300-08028-00
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
