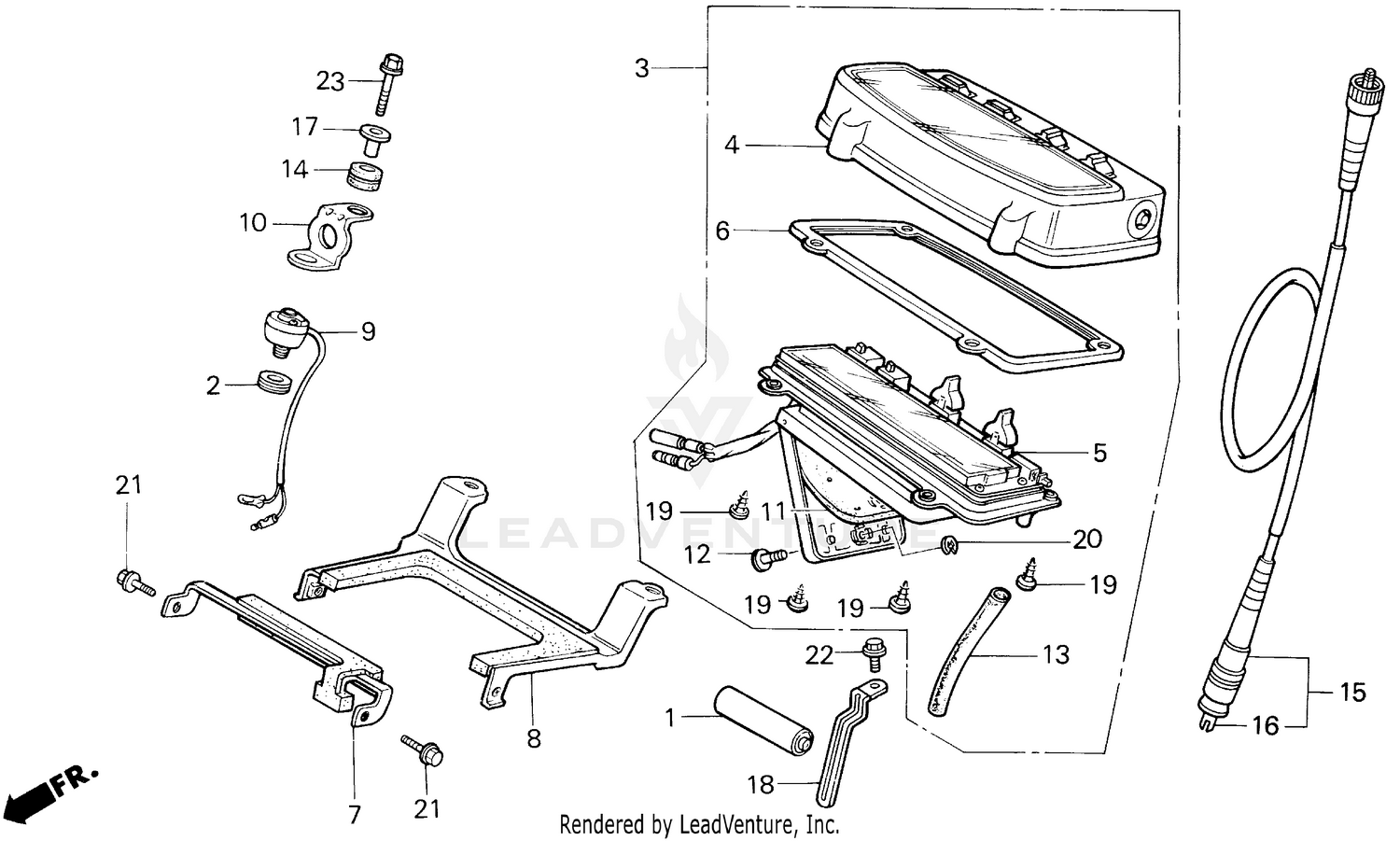

Meter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BATTERY, DRY (SUM-3) (YUASA) (NOT AVAILABLE)
31500-KN5-671
|
$1.65 | ||
|
Unavailable |
|||
|
#2
GROMMET B, TUBE
36038-657-000
|
$6.97 | ||
|
Available to order. Add to View Price |
|||
|
#3
METER ASSY., ENDURANCE
37200-KN5-671
|
$657.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CASE (UPPER) (NOT AVAILABLE)
37202-KN5-671
|
$38.82 | ||
|
Unavailable |
|||
|
#5
METER, ENDURANCE
37203-KN5-671
|
$540.10 | ||
|
Unavailable |
|||
|
#6
RUBBER B
37204-KN5-671
|
$11.88 | ||
|
Available to order. Add to View Price |
|||
|
#7
SUB-STAY, METER SETTING (NOT AVAILABLE)
37205-KN5-670
|
$11.49 | ||
|
Unavailable |
|||
|
#8
STAY, METER SETTING (NOT AVAILABLE)
37207-KN5-670
|
$18.03 | ||
|
Unavailable |
|||
|
#9
SENSOR ASSY.
37210-KN5-671
|
$81.28 | ||
|
Unavailable |
|||
|
#10
HOLDER, SENSOR
37211-KN5-670
|
$6.96 | ||
|
Unavailable |
|||
|
#11
RUBBER A
37212-KN5-671
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, SPECIAL
37213-KN5-671
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
TUBE B
37214-KN5-671
|
$4.37 | ||
|
Unavailable |
|||
|
#14
RUBBER, SPEEDOMETER MOUNTING
37242-435-700
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#15
CABLE ASSY., SPEEDOMETER
44830-KF0-000
Superseded by 44830-MG7-000
|
$22.89 | ||
|
Available to order. Add to View Price |
|||
|
#15
CABLE ASSY., SPEEDOMETER
44830-MG7-000
|
$22.89 | ||
|
Unavailable |
|||
|
#16
CABLE (INNER)
44831-KF0-000
|
$7.06 | ||
|
Unavailable |
|||
|
#17
COLLAR, PILLION SEAT
77302-473-000
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP, WIRE HARNESS
91403-KN5-670
|
$1.90 | ||
|
Unavailable |
|||
|
#19
SCREW, TAPPING (4X12)
93903-34380
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#20
E-RING (3MM)
94540-03018
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X12)
96001-06012-07
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X28)
96001-06028-00
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
