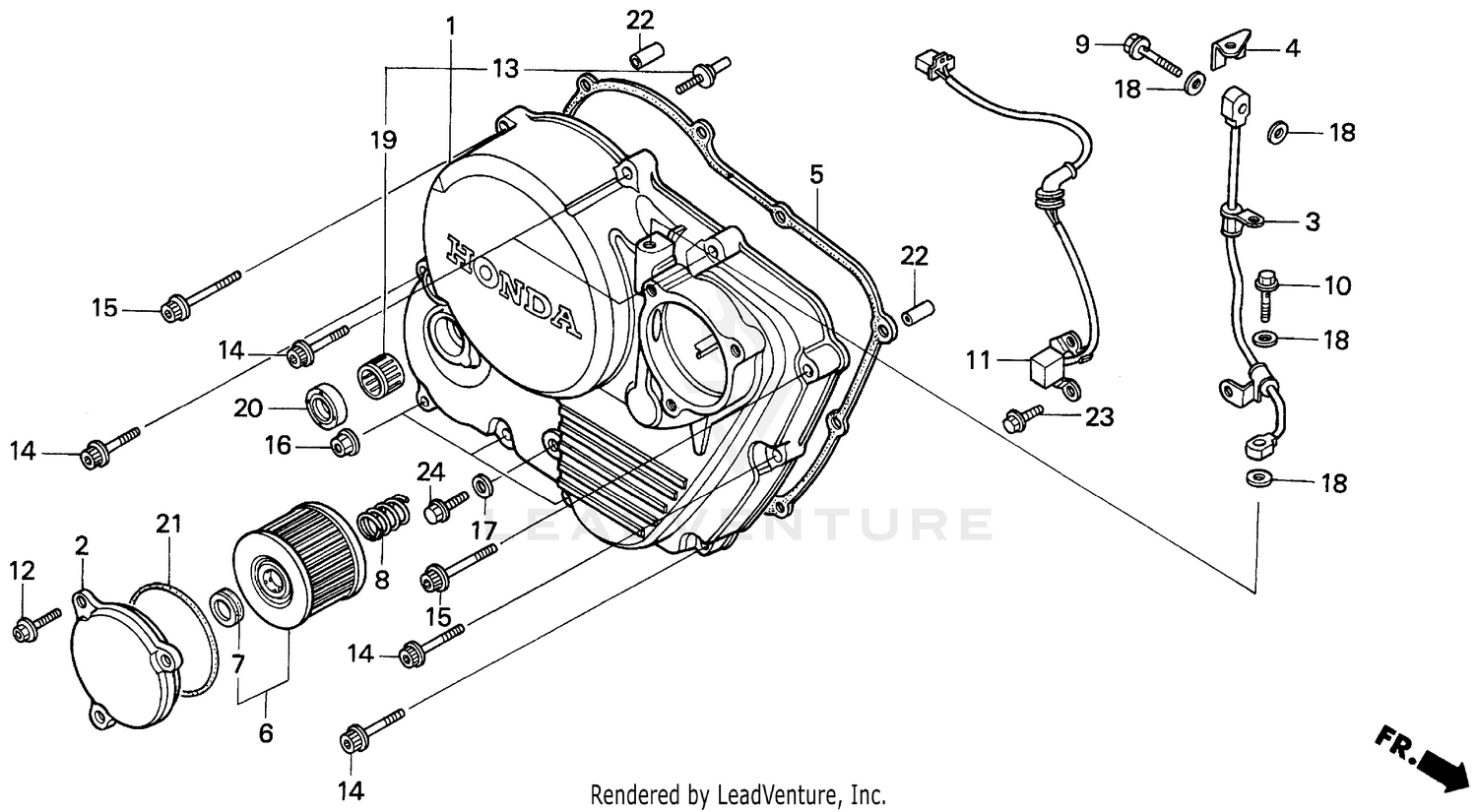

Right Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, R. CRANKCASE
11330-MN1-680
|
$244.02 | ||
|
Unavailable |
|||
|
#2
COVER, OIL FILTER
11333-MN1-870
|
$56.36 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE, OIL PASSAGE
11335-MN9-000
|
$75.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
STOPPER, OIL PIPE
11336-MN1-670
|
$14.24 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, R. CRANKCASE COVER
11394-MN1-700
|
$24.56 | ||
|
Available to order. Add to View Price |
|||
|
#6
ELEMENT, OIL FILTER
15410-KF0-305
Superseded by 15410-KF0-315
|
$7.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
ELEMENT, OIL FILTER
15410-KF0-315
|
$7.35 | ||
|
Unavailable |
|||
|
#6
ELEMENT, OIL FILTER
15412-KF0-010
Superseded by 15410-KF0-315
|
$7.35 | ||
|
Unavailable |
|||
|
#7
RUBBER, FILTER
15413-MC8-000
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SPRING, OIL FILTER ELEMENT SETTING
15414-KF0-000
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (8X30)
15531-KN8-730
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (8X30)
15532-MA6-000
|
$11.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
GENERATOR ASSY., PULSE
30300-MN1-680
|
$95.38 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE SOCKET (6X18)
90004-ML4-610
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SPECIAL (6MM)
90041-MG3-000
|
$3.81 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE SOCKET (6X25)
90091-KF0-000
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE SOCKET (6X40)
90093-KF0-000
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, U (6MM)
90301-MG3-000
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER (11MM)
90425-300-000
|
$3.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
GASKET
90544-439-930
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, NEEDLE (20X26X12) (NTN)
91106-KF0-008
Superseded by 91051-V19-003
|
$24.91 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL (20X32X6)
91201-444-005
Superseded by 91202-KJ9-003
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL (20X32X6)
91202-KJ9-000
Superseded by 91202-KJ9-003
|
$5.98 | ||
|
Unavailable |
|||
|
#20
OIL SEAL (20X32X6)
91202-KJ9-003
|
$5.98 | ||
|
Unavailable |
|||
|
#21
O-RING (54X2.4) (ARAI)
91302-KF0-003
|
$4.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
PIN, DOWEL (8X20)
94301-08200
|
$2.35 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X16)
95701-06016-07
|
$1.70 | ||
|
Unavailable |
|||
