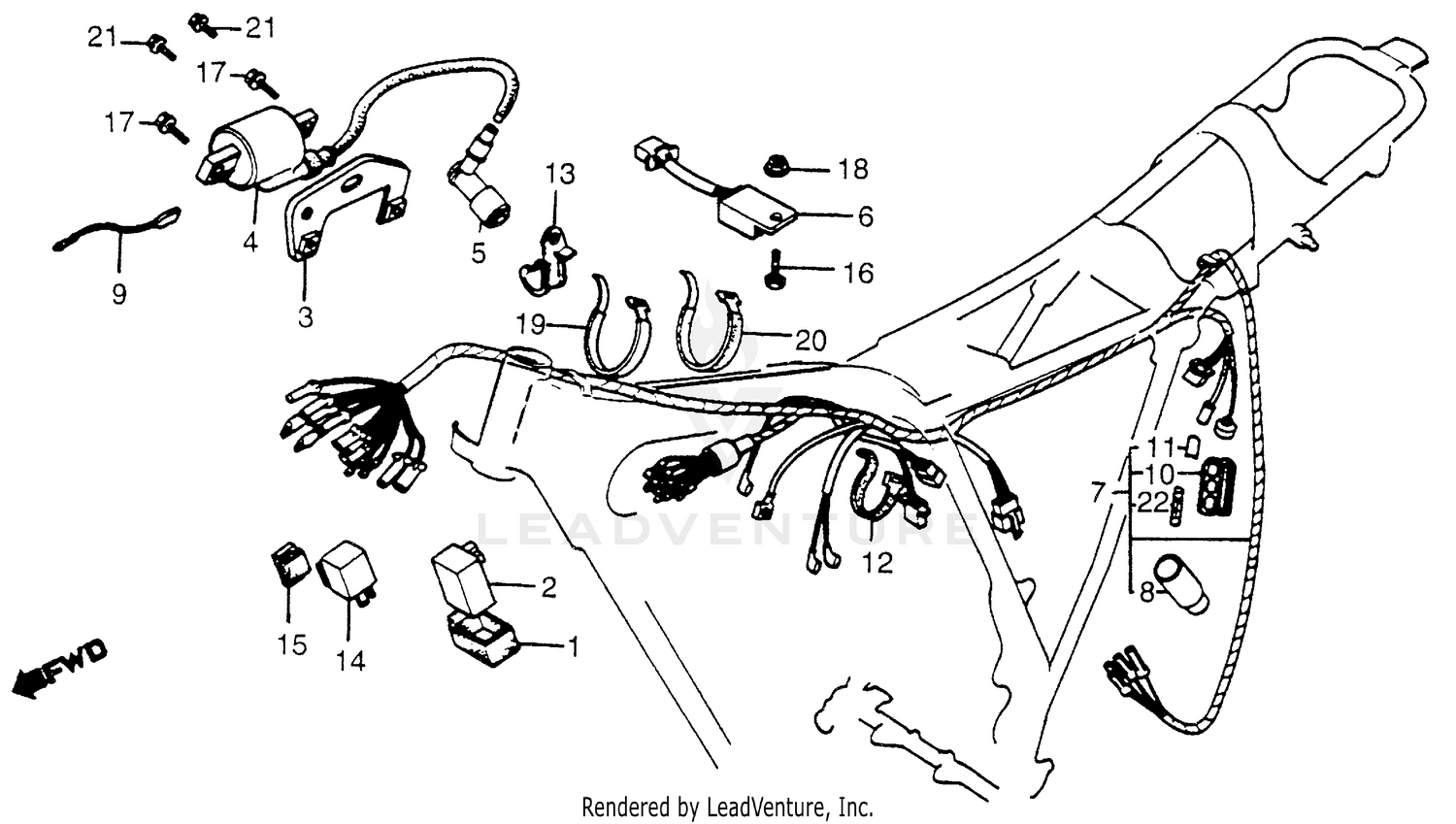

Wire Harness + Ignition Coil Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION, IGNITION CONTROL MODULE (CDI)
30401-KB4-000
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#2
MODULE, IGNITION CONTROL (CDI)
30410-KB1-930
|
$163.63 | ||
|
Unavailable |
|||
|
#3
STAY, IGNITION COIL
30501-437-970
|
$10.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
COIL, C.D.I. IGNITION
30510-437-970
|
$70.57 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP ASSY., NOISE SUPPRESSOR
30700-152-153
Superseded by 30700-KE2-942
|
$21.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP ASSY., NOISE SUPPRESSOR
30700-152-163
Superseded by 30700-KE2-942
|
$21.65 | ||
|
Unavailable |
|||
|
#6
RECTIFIER, REGULATOR
31600-437-971
|
$174.53 | ||
|
Unavailable |
|||
|
#7
WIRE HARNESS
32100-KB1-930
|
$102.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, WIRE HARNESS CONNECTOR
32108-046-000
|
$4.27 | ||
|
Unavailable |
|||
|
#9
SUB-WIRE A (NOT AVAILABLE)
32111-437-970
|
$4.20 | ||
|
Unavailable |
|||
|
#10
CASE, FUSE (10A)
32120-383-830
|
$4.83 | ||
|
Unavailable |
|||
|
#11
MARK (10A)
32122-383-830
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND, WIRE
32161-399-000
|
$3.25 | ||
|
Unavailable |
|||
|
#13
CLIP, IGNITION CABLE (NOT AVAILABLE)
32906-107-000
|
$2.78 | ||
|
Unavailable |
|||
|
#14
RELAY, TURN SIGNAL (DENSO)
38301-MG2-008
|
$52.83 | ||
|
Available to order. Add to View Price |
|||
|
#15
SUSPENSION, TURN SIGNAL RELAY
38306-GE7-000
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX. (6X12)
92000-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, HEX. (6X12)
92101-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#16
BOLT, HEX. (6X12)
92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#17
SCREW-WASHER (5X20)
93891-05020-08
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
NUT, FLANGE (6MM)
94050-06080
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BAND B1, WIRE
32161-404-000
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAND B1, CABLE
95014-61100
Superseded by 32161-404-000
|
$2.67 | ||
|
Unavailable |
|||
|
#20
BAND A3, WIRE
95014-61300
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X12)
95700-06012-08
Superseded by 95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Unavailable |
|||
|
#22
FUSE A (10A)
98200-11000
|
$2.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
