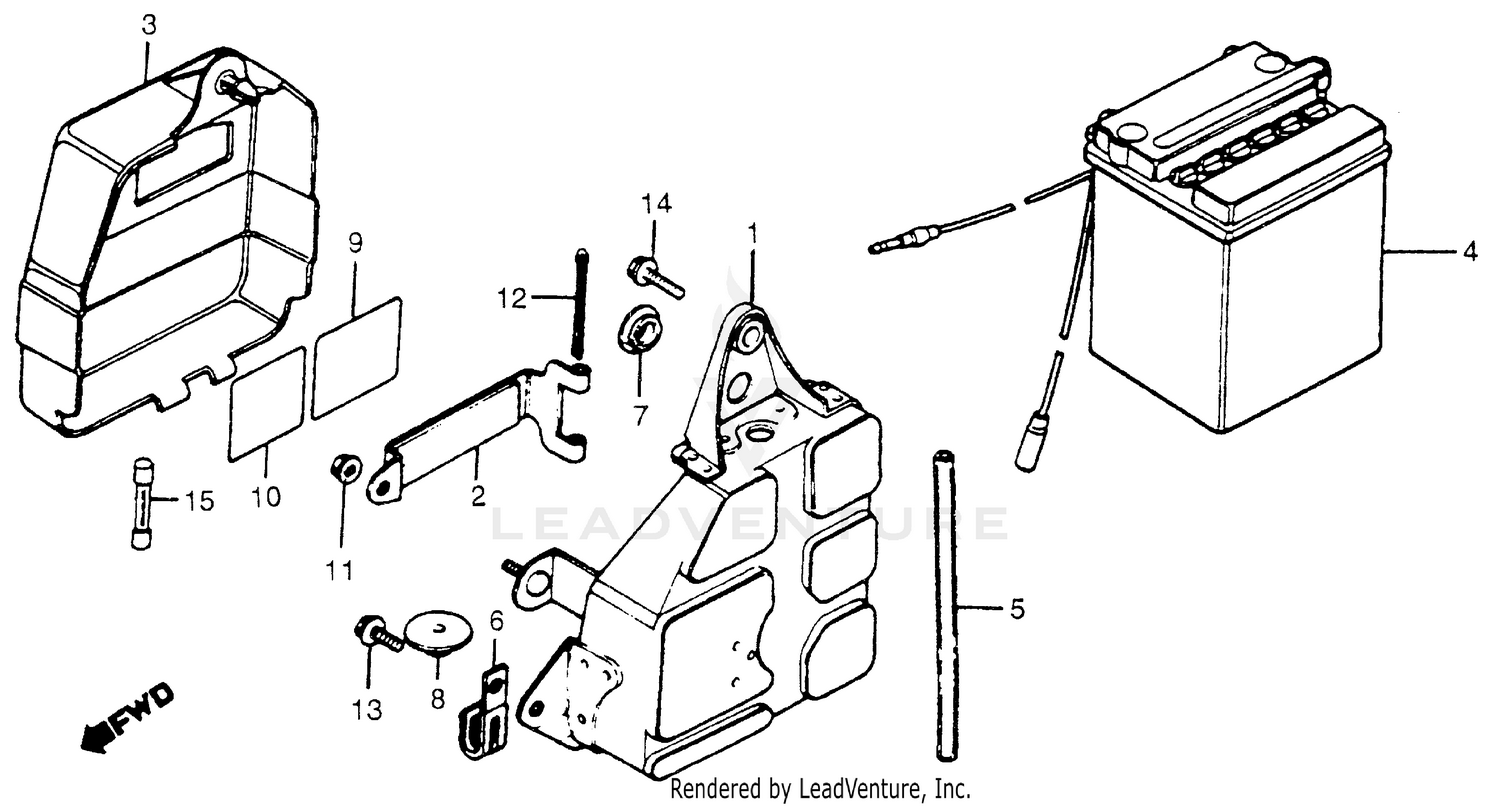

Battery Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TRAY, BATTERY (NOT AVAILABLE)
17232-KB1-930
|
$50.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
HINGE, BATTERY BOX
17233-437-970
|
$8.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, BATTERY
17234-437-970
|
$14.96 | ||
|
Unavailable |
|||
|
#4
BATTERY (YB2.5L-C) (YUASA)
31500-166-506
Superseded by 31500-166-506AH
|
$33.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
BATTERY (YB2.5L-C) (YUASA)
31500-166-506AH
|
$33.58 | ||
|
Unavailable |
|||
|
#4
BATTERY (YB2.5L-C) (YUASA)
31500-166-671
Superseded by 31500-166-506AH
|
$33.58 | ||
|
Unavailable |
|||
|
#4
BATTERY (YB2.5L-C) (YUASA)
31500-166-672
Superseded by 31500-166-506AH
|
$33.58 | ||
|
Unavailable |
|||
|
#4
BATTERY (YB2.5L-C) (YUASA)
31500-441-970
Superseded by 31500-166-506AH
|
$33.58 | ||
|
Unavailable |
|||
|
#5
TUBE, BATTERY BREATHER
31502-437-970
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP, WIRE HARNESS
32116-437-000
|
$3.55 | ||
|
Unavailable |
|||
|
#7
GROMMET, SIDE COVER
83551-376-000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, BATTERY BOX
83618-323-000
|
$2.96 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
MARK, BATTERY CAUTION (NOT AVAILABLE)
87506-KB1-930
|
$3.81 | ||
|
Unavailable |
|||
|
#10
MARK, WIRING CAUTION (NOT AVAILABLE)
87508-KB1-930
|
$5.20 | ||
|
Unavailable |
|||
|
#11
NUT, FLANGE (6MM)
94050-06080
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
PIN, COTTER (4X55) (NOT AVAILABLE)
94201-40550
|
$0.64 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE (6X12)
95700-06012-08
Superseded by 95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE (6X20)
95700-06020-00
Superseded by 95701-06020-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X20)
95701-06020-00
|
$1.85 | ||
|
Unavailable |
|||
|
#15
FUSE A (10A)
98200-11000
|
$2.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
