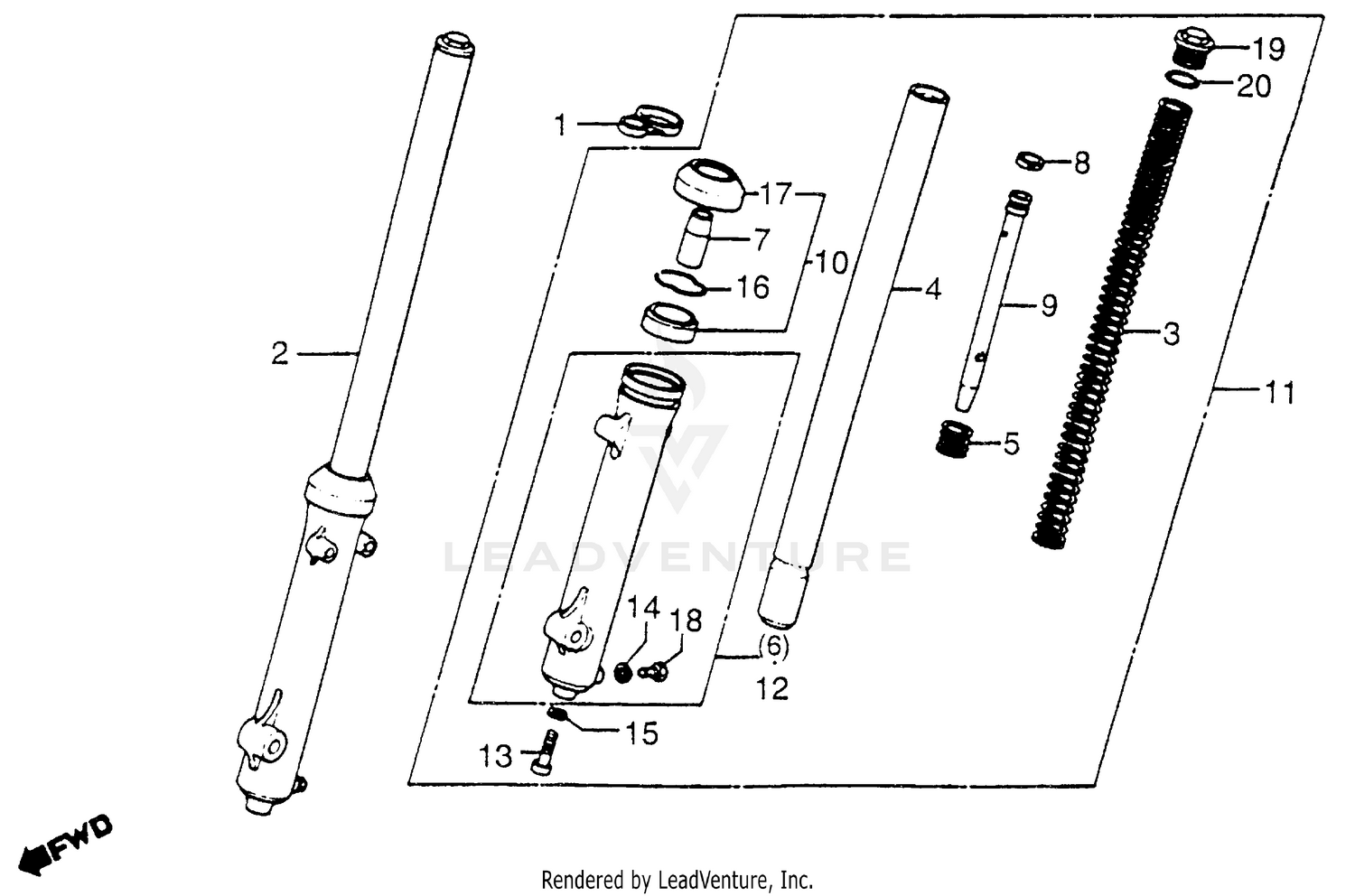

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUIDE, BRAKE CABLE (NOT AVAILABLE)
45468-399-620
|
$7.44 | ||
|
Unavailable |
|||
|
#2
FORK ASSY., R. FR.
51400-KB1-930
|
$368.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, FR. FORK (NOT AVAILABLE)
51401-437-003
|
$33.06 | ||
|
Unavailable |
|||
|
#4
PIPE, FR. FORK
51410-437-003
|
$240.16 | ||
|
Unavailable |
|||
|
#5
SPRING, FR. FORK REBOUND
51412-331-770
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
CASE, R. (LOWER)
51421-KB1-930
|
$142.93 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIECE, OIL LOCKING
51432-388-003
Superseded by 51432-447-731
|
$33.22 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIECE, OIL LOCK
51432-447-731
|
$33.22 | ||
|
Unavailable |
|||
|
#8
RING, PISTON
51437-373-781
|
$4.11 | ||
|
Unavailable |
|||
|
#9
PIPE, SEAT
51440-437-003
|
$48.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL SET, FR. FORK
51490-437-305
|
$29.33 | ||
|
Unavailable |
|||
|
#11
FORK ASSY., L. FR.
51500-KB1-930
|
$368.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
CASE, L. (LOWER)
51521-KB1-930
|
$142.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SOCKET (8X27)
90116-383-721
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, FR. FORK DRAIN PETCOCK
90543-273-000
|
$2.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER, SPECIAL (8MM)
90544-283-000
|
$3.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
RING, OIL SEAL STOP
90601-354-000
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#17
DUST SEAL (SHOWA)
91254-437-003
|
$17.33 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEX. (6X8)
92000-06008
Superseded by 92101-06008-0A
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEX. (6X8)
92000-06008-0A
Superseded by 92101-06008-0A
|
$1.43 | ||
|
Unavailable |
|||
|
#18
BOLT, HEX. (6X8)
92101-06008-0A
|
$1.43 | ||
|
Unavailable |
|||
|
#19
BOLT D1, FORK
94605-27101
|
$10.05 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING (23X2.4)
94608-30000
|
$1.36 | ||
|
Unavailable |
|||
