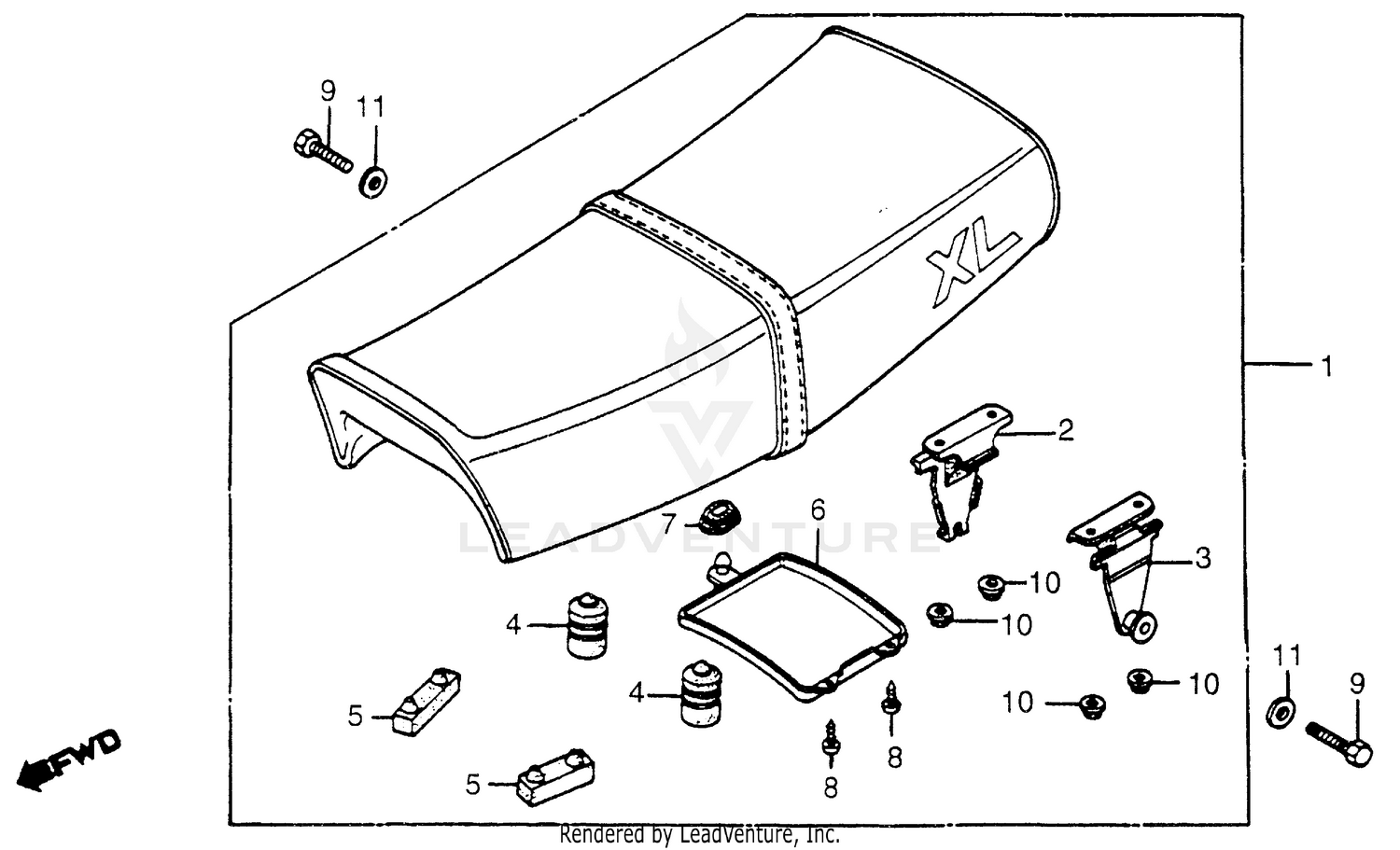

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT (NOT AVAILABLE)
77200-KB1-930
|
$153.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
STAY, R. RR. SEAT (NOT AVAILABLE)
77201-437-970
|
$15.93 | ||
|
Unavailable |
|||
|
#3
STAY, L. RR. SEAT
77202-437-970
|
$15.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER B, SEAT SETTING
77204-437-000
|
$7.12 | ||
|
Unavailable |
|||
|
#5
RUBBER, SEAT SETTING
77205-437-970
|
$9.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
LID, SEAT (LOWER)
77250-340-000
|
$14.43 | ||
|
Unavailable |
|||
|
#7
GROMMET, AIR CLEANER HOUSING
83551-300-000
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SCREW, TAPPING (5X9.5)
90132-KB1-930
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEX. (8X20)
92000-08020-0A
Superseded by 92101-08020-0A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEX. (8X20)
92101-08020-0A
|
$1.70 | ||
|
Unavailable |
|||
|
#10
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
WASHER, PLAIN (8MM)
94103-08000
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
