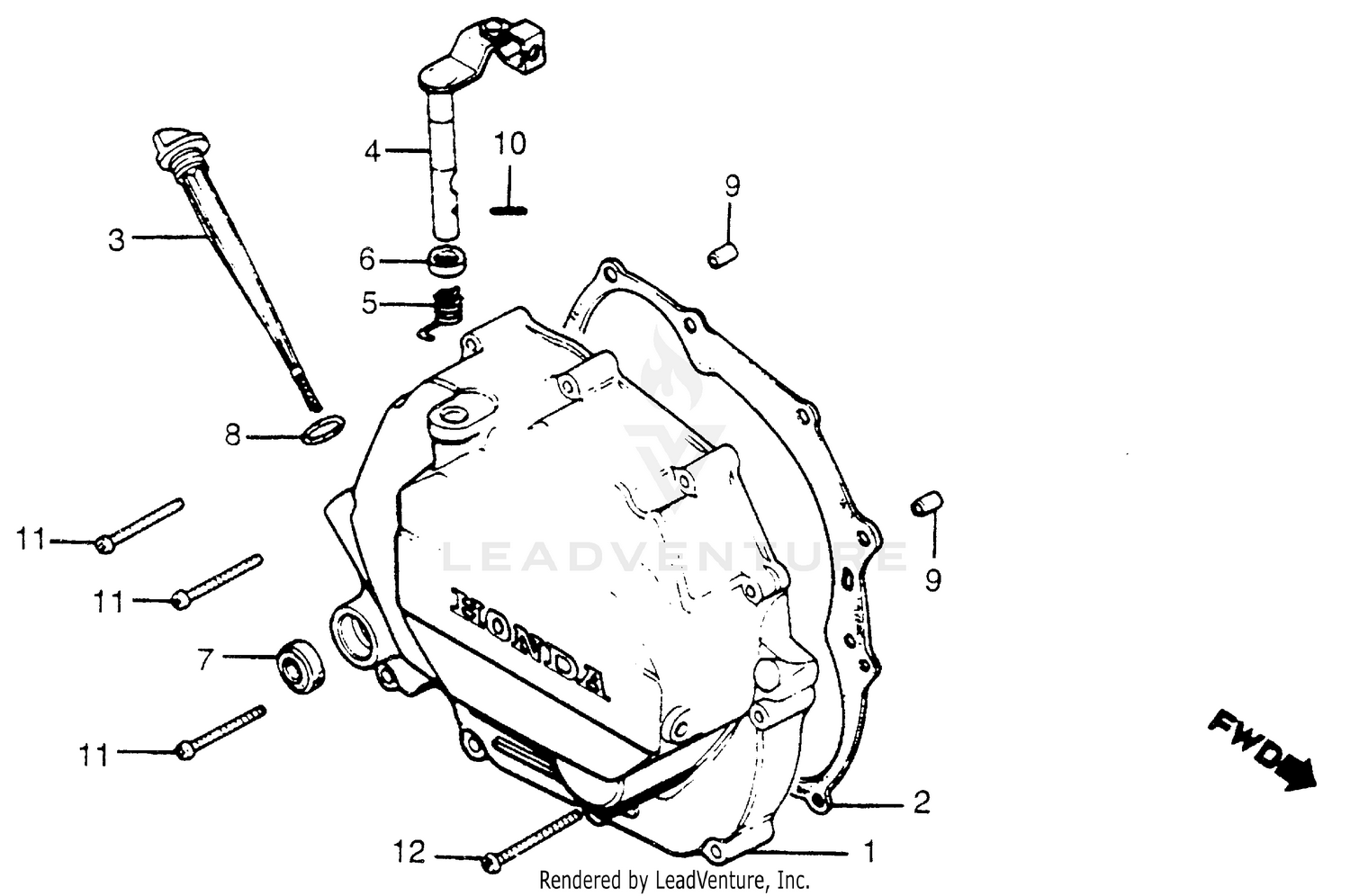

Right Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, R. CRANKCASE (NOT AVAILABLE)
11330-397-630
|
$56.95 | ||
|
Unavailable |
|||
|
#2
GASKET, R.
11393-KY0-600
Superseded by 11393-K0K-A00
|
$11.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, R.
11393-107-010
Superseded by 11393-K0K-A00
|
$11.20 | ||
|
Unavailable |
|||
|
#2
GASKET, R.
11393-107-020
Superseded by 11393-K0K-A00
|
$11.20 | ||
|
Unavailable |
|||
|
#2
GASKET, R.
11393-107-306
Superseded by 11393-K0K-A00
|
$11.20 | ||
|
Unavailable |
|||
|
#3
DIPSTICK, OIL
15650-MC8-000
|
$9.55 | ||
|
Unavailable |
|||
|
#3
DIPSTICK, OIL
15650-383-000
Superseded by 15650-MC8-000
|
$9.55 | ||
|
Unavailable |
|||
|
#4
LEVER, CLUTCH
22810-437-000
|
$42.83 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, CLUTCH LEVER
22815-428-000
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL (12X22X5)
91201-148-003
Superseded by 91201-965-000
|
$5.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
OIL SEAL (12X22X5)
91201-965-000
|
$5.09 | ||
|
Unavailable |
|||
|
#7
OIL SEAL (16X28X7)
91204-MC7-003
Superseded by 91204-259-003
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL (16X28X7) (ARAI)
91204-259-003
|
$7.04 | ||
|
Unavailable |
|||
|
#7
OIL SEAL (16X28X7)
91204-259-005
Superseded by 91204-259-003
|
$7.04 | ||
|
Unavailable |
|||
|
#7
OIL SEAL (16X28X7)
91205-360-000
Superseded by 91204-259-003
|
$7.04 | ||
|
Unavailable |
|||
|
#8
O-RING (18X3) (ARAI)
91307-KF0-003
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING (18X3)
91307-035-000
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SCREW, PAN (6X40)
93500-06040
Superseded by 93500-06040-0A
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN (6X40)
93500-06040-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#10
SCREW, PAN (6X50)
93500-06050
Superseded by 93500-06050-0A
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN (6X50)
93500-06050-0A
|
$1.08 | ||
|
Unavailable |
|||
|
#11
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
PIN, SPRING (3X10)
94305-30102
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
