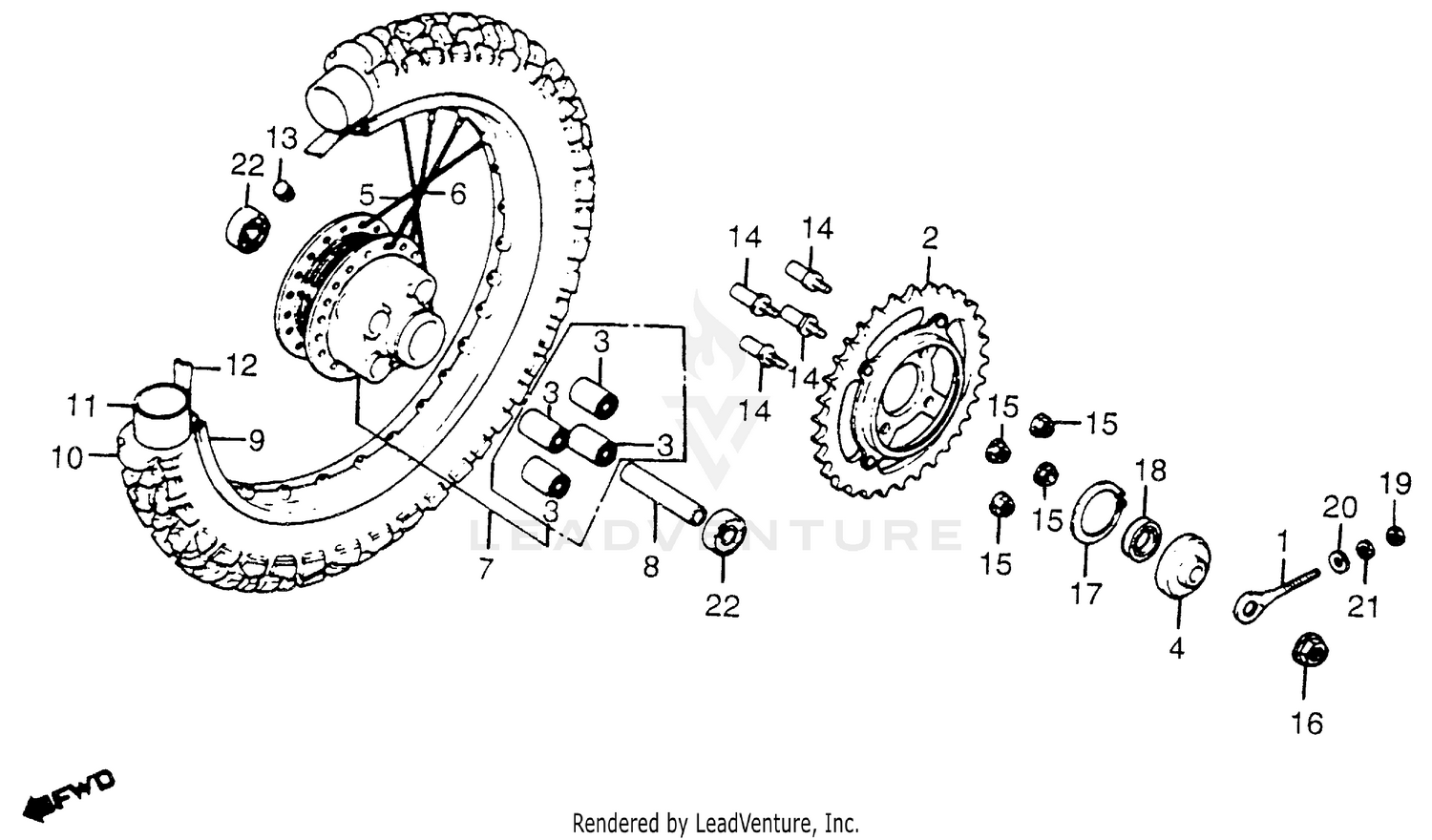

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ADJUSTER C, R. CHAIN
40543-437-000
Superseded by 95014-12100
|
$6.95 | ||
|
Available to order. Add to View Price |
|||
|
#1
ADJUSTER C, R. CHAIN
95014-12100
|
$6.95 | ||
|
Unavailable |
|||
|
#2
SPROCKET, FINAL DRIVEN (56T)
41200-KB1-930
|
$71.71 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH, RR. WHEEL DAMPER
41241-307-010
|
$18.24 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, RR. WHEEL SIDE
42304-437-000
|
$29.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPOKE BS (8X170.0)
42605-437-970
Superseded by 97506-69180-Q0
|
$4.11 | ||
|
Unavailable |
|||
|
#5
SPOKE BS (8X170.0)
97506-69180-Q0
|
$4.11 | ||
|
Unavailable |
|||
|
#6
SPOKE BS (8X168.5)
42606-437-970
Superseded by 97716-69179-10
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPOKE BS (8X169.5)
97716-69179-Q0
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPOKE BS (8X168.5)
97716-69179-10
|
$6.33 | ||
|
Unavailable |
|||
|
#7
HUB, RR. WHEEL *NH105* (MAT BLACK)
42610-437-000ZA
|
$320.34 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, RR. AXLE DISTANCE
42620-437-000
|
$18.24 | ||
|
Unavailable |
|||
|
#9
RIM, RR. WHEEL
42701-KB1-930
|
$72.98 | ||
|
Available to order. Add to View Price |
|||
|
#10
TIRE, RR. (4.10-18) (4PR) (DUNLOP) (NOT AVAILABLE)
42711-437-971
|
$78.33 | ||
|
Unavailable |
|||
|
#11
TUBE, TIRE (3.50-18)
08400-44600
Superseded by 42712-446-631
|
$12.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
TUBE, TIRE (3.50-18)
42712-287-003
Superseded by 42712-446-631
|
$12.45 | ||
|
Unavailable |
|||
|
#11
TUBE, TIRE (3.50-18)
42712-437-971
Superseded by 42712-446-631
|
$12.45 | ||
|
Unavailable |
|||
|
#11
TUBE, TIRE (3.50-18)
42712-446-631
|
$12.45 | ||
|
Unavailable |
|||
|
#12
FLAP, TIRE (17)
42713-MAN-622
Superseded by 42713-371-000
|
$33.87 | ||
|
Available to order. Add to View Price |
|||
|
#12
FLAP, TIRE (17)
42713-437-971
Superseded by 42713-371-000
|
$33.87 | ||
|
Unavailable |
|||
|
#13
CAP, RIM HOLE (NOT AVAILABLE)
42717-310-000
|
$2.61 | ||
|
Unavailable |
|||
|
#14
BOLT, DRIVEN SPROCKET FIXING
90128-KB1-930
Superseded by 90128-KE2-940
|
$8.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, DRIVEN SPROCKET FIXING
90128-KE2-940
|
$8.60 | ||
|
Unavailable |
|||
|
#15
NUT, U (10MM)
90304-GE8-003
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
NUT, U (14MM)
90305-GE8-003
|
$4.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CIRCLIP (58MM)
90664-216-000
|
$6.98 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL (28X42X7) (ARAI)
91257-230-000
Superseded by 91257-230-003
|
$13.31 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
OIL SEAL (28X42X7) (ARAI)
91257-230-003
|
$13.31 | ||
|
Unavailable |
|||
|
#18
OIL SEAL (28X42X7) (ARAI)
91257-230-005
Superseded by 91257-230-003
|
$13.31 | ||
|
Unavailable |
|||
|
#19
NUT, HEX. (6MM)
90310-KA3-711
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
NUT, HEX. (6MM)
94000-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#19
NUT, HEX. (6MM)
94001-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#19
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#19
NUT, HEX. (6MM)
94001-06008-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#19
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#19
NUT, HEX. (6MM)
94030-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#20
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#20
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#21
WASHER, SPRING (6MM)
94111-06000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BEARING, RADIAL BALL (6302UU)
96140-63020-10
Superseded by 96150-63020-10
|
$18.62 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, RADIAL BALL (6302UU)
96150-63020-10
|
$18.62 | ||
|
Unavailable |
|||
