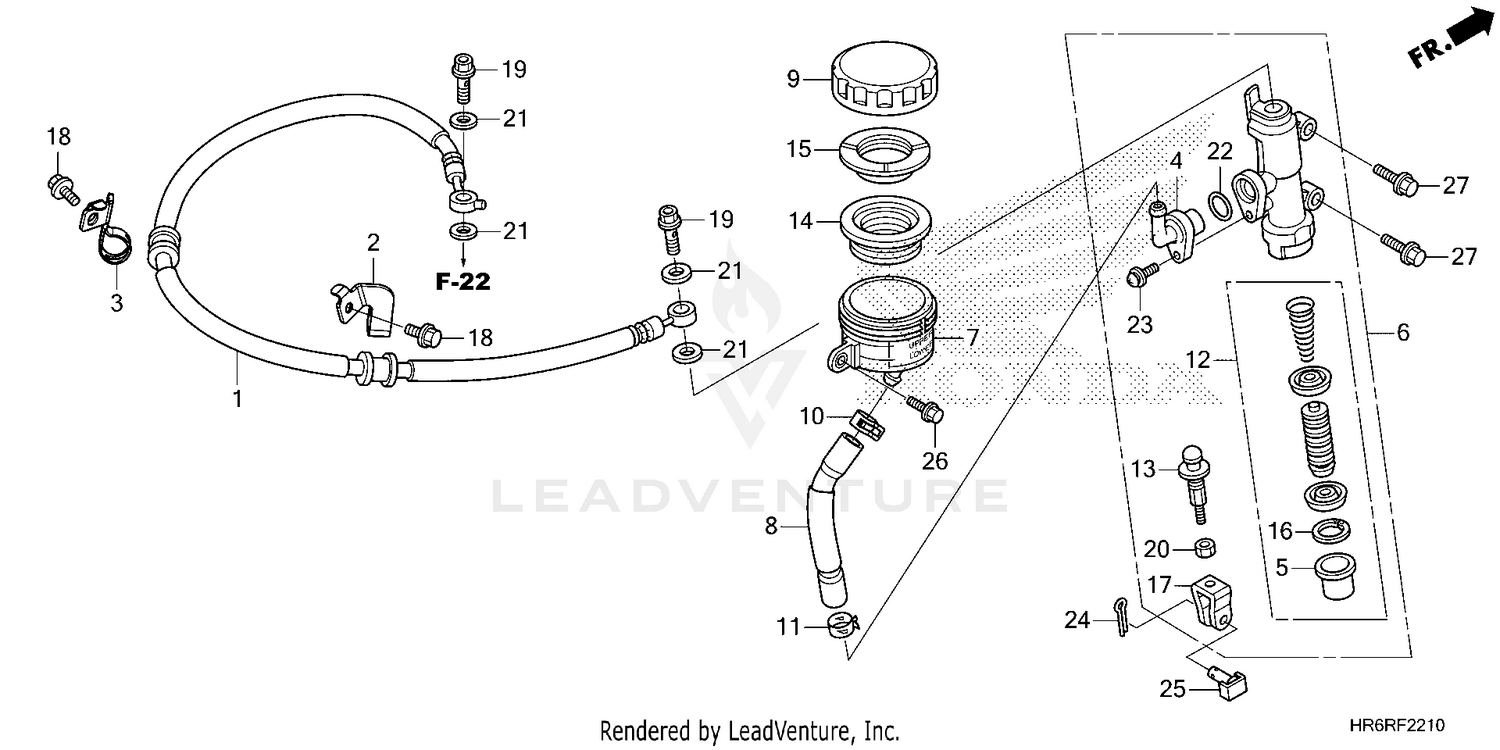

Rear Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, RR. BRAKE
43310-HR6-A61
|
$27.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP, R. BRAKE HOSE
43462-HR6-A60
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP, L. BRAKE HOSE
43464-HR6-A60
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#4
CONNECTOR, MASTER CYLINDER
43503-MB2-006
|
$13.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOOT
43504-MB2-006
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#6
MASTER CYLINDER SUB-ASSY., RR. BRAKE (COO)
43510-HN8-016
Superseded by 43510-HN8-305
|
$131.56 | ||
|
Available to order. Add to View Price |
|||
|
#6
MASTER CYLINDER SUB-ASSY., RR. BRAKE (COO)
43510-HN8-305
|
$131.56 | ||
|
Unavailable |
|||
|
#7
CUP, OIL
43511-HR6-B01
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE, RR. BRAKE MASTER CYLINDER
43512-HR6-A61
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, OIL CUP
43513-MY1-006
|
$35.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP, MASTER CYLINDER OIL HOSE
43514-KS6-701
|
$15.89 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP, MASTER CYLINDER OIL HOSE
43514-MN9-006
|
$17.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
PISTON SET, MASTER CYLINDER (NISSIN)
43520-MG9-315
|
$68.67 | ||
|
Available to order. Add to View Price |
|||
|
#13
ROD, PUSH
43530-MM5-006
|
$31.64 | ||
|
Available to order. Add to View Price |
|||
|
#14
DIAPHRAGM
45520-300-000
|
$10.98 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, DIAPHRAGM
45521-MJ6-006
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP
46182-MEL-D21
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#17
JOINT, BRAKE ROD
46504-HN8-006
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X12)
90103-MCS-G00
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, SPECIAL (8MM)
90315-MAT-006
|
$0.51 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
O-RING (14.8X2.4)
91212-422-006
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
|
#24
PIN, COTTER (2.0X22) PIN, COTTER (2.0X25)
94201-20220
|
$1.08 | ||
|
Unavailable |
|||
|
#24
PIN, COTTER (2.0X35)
94201-20250
Superseded by 94201-20350
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
PIN, COTTER (2.0X35)
94201-20280
Superseded by 94201-20350
|
$1.08 | ||
|
Unavailable |
|||
|
#24
PIN, COTTER (2.0X35)
94201-20320
Superseded by 94201-20350
|
$1.08 | ||
|
Unavailable |
|||
|
#24
PIN, COTTER (2.0X35) PIN, COTTER (2.0X22)
94201-20350
|
$1.08 | ||
|
Unavailable |
|||
|
#25
PIN D, JOINT
95015-54000
|
$5.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X20)
95701-06020-08
|
$0.40 | ||
|
Unavailable |
|||
