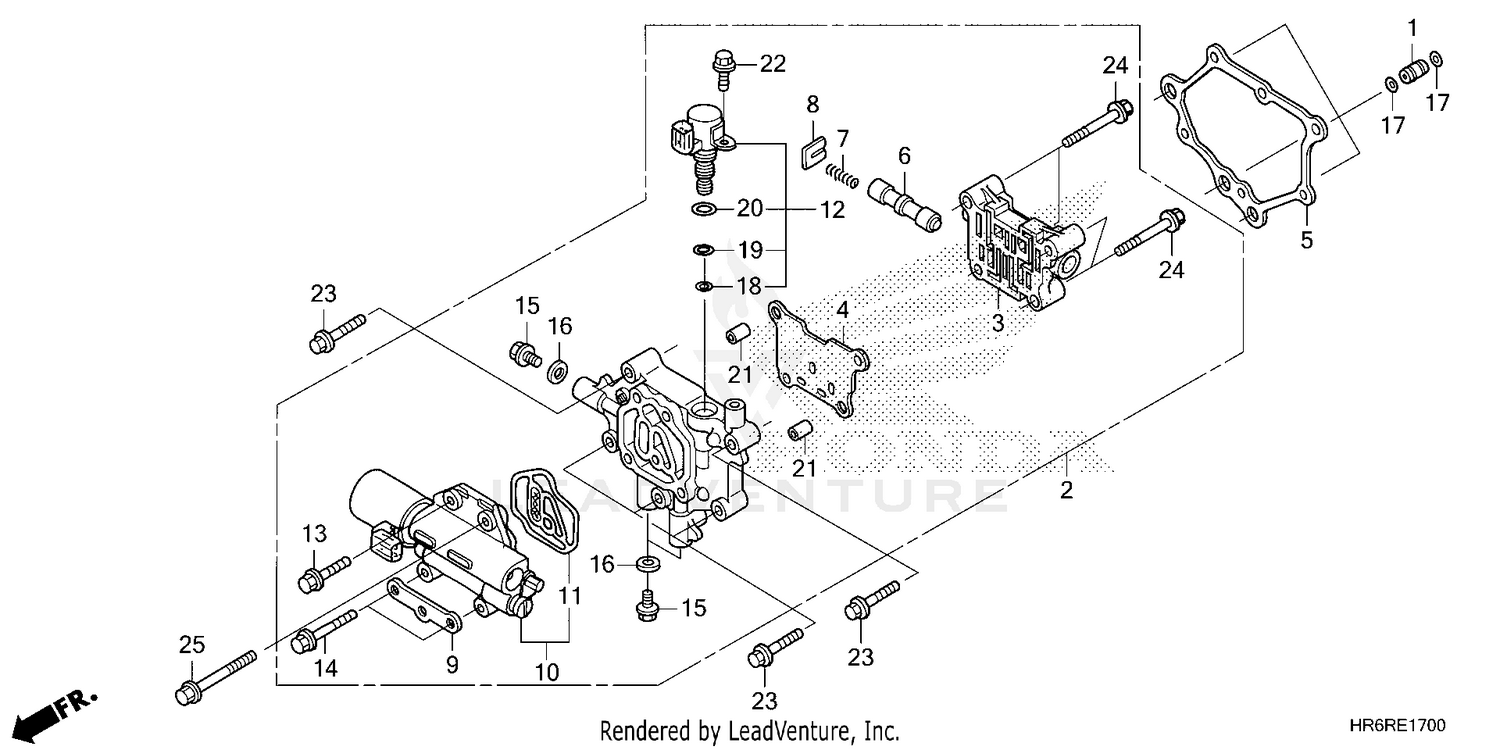

Main Valve Body Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIN, OIL GUIDE (10MM)
11334-HN8-010
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
BODY ASSY., VALVE
27100-HR6-B00
|
$676.96 | ||
|
Available to order. Add to View Price |
|||
|
#3
BODY, CONTROL MAIN
27102-HP7-A00
|
$68.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, VALVE BODY
27121-HR3-A60
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, OIL CONTROL COVER
27135-HP7-A01
|
$14.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
VALVE, SHIFT
27211-HP7-A00
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, VALVE
27231-HP7-A00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAT, VALVE SPG
27263-HL4-BA0
|
$0.78 | ||
|
Unavailable |
|||
|
#9
STAY A, CLIP
32150-HP7-A00
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
SOLENOID ASSY., LINEAR
38610-HR6-B01
|
$363.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, BASE
38615-HN8-003
|
$26.89 | ||
|
Available to order. Add to View Price |
|||
|
#12
SOLENOID ASSY. B
38630-HN8-003
|
$114.96 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X35)
95701-06035-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, SEALING (8MM)
90024-HL4-BA0
|
$1.65 | ||
|
Unavailable |
|||
|
#16
GASKET (8MM)
90471-HL4-BA0
|
$0.85 | ||
|
Unavailable |
|||
|
#17
O-RING (7X1.7)
91301-473-003
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (7.6X1.9) (KEIHIN)
91301-P6H-003
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING (9.6X1.9)
91302-P6H-003
Superseded by 91302-P7W-A00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING (9.6X1.9)
91302-P7W-A00
|
$3.05 | ||
|
Unavailable |
|||
|
#20
O-RING (11.7X1.9) (KEIHIN)
91303-P6H-003
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN A, DOWEL (8X10)
94301-08100
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X32) (Honda Code 2105856)
95701-06032-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X35)
95701-06035-00
|
$1.97 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE (6X55)
95701-06055-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
