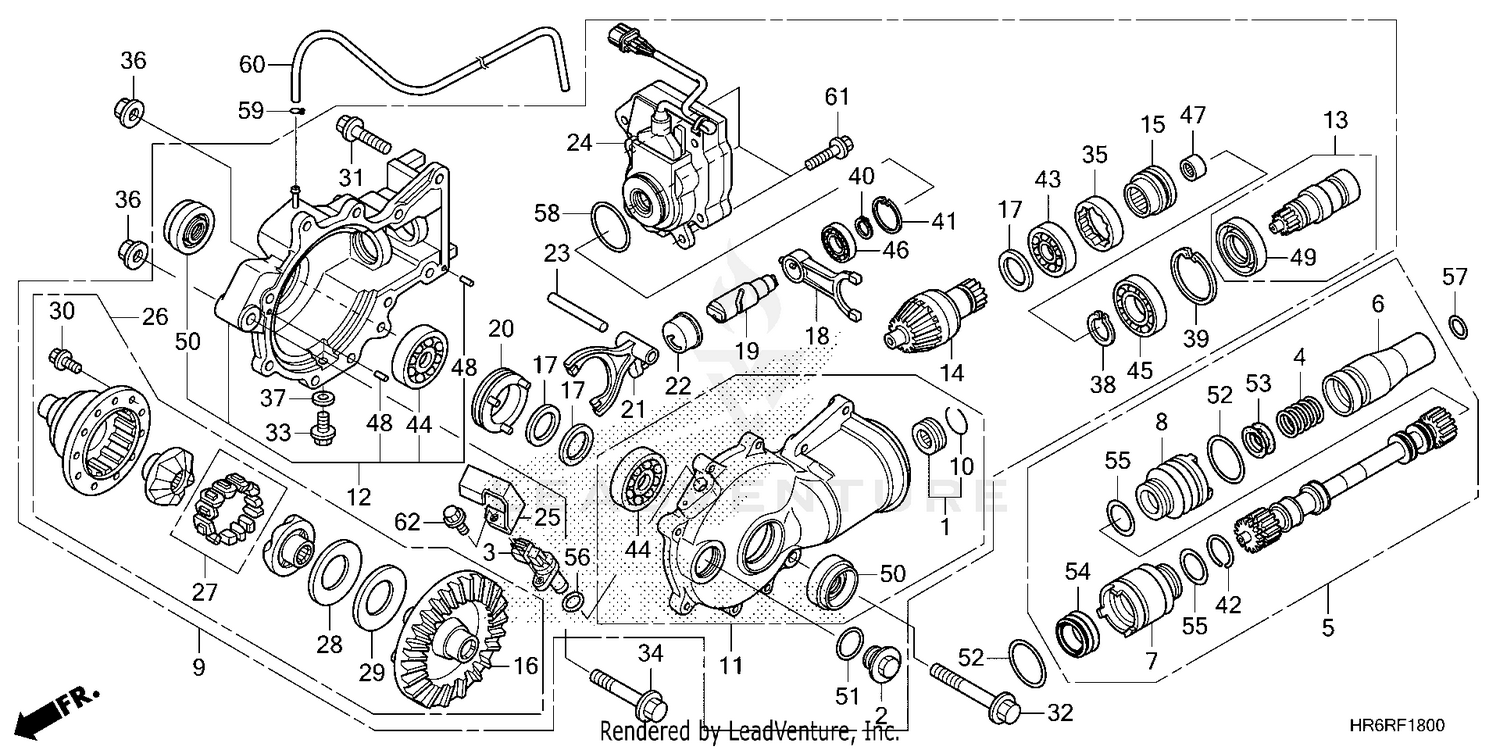

Front Final Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BEARING SET, NEEDLE
06910-HR4-A21
|
$33.40 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, VALVE ADJ.
12361-035-000
Superseded by 12361-300-000
|
$12.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
SENSOR ASSY., SPEED (TDK-EPC)
37700-KZR-601
|
$53.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, SHAFT
40215-HM7-000
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT ASSY., FR. PROPELLER
40400-HR6-A61
|
$110.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT, FR. PROPELLER SHAFT
40402-HR3-A20
|
$59.47 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOOT A, PROPELLER
40410-HR6-A60
|
$9.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT B, PROPELLER
40420-HM7-A00
|
$16.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
GEAR, FR. FINAL
41400-HR6-MF1
|
$1,148.71 | ||
|
Unavailable |
|||
|
#10
RING, STOPPER
41405-HA7-670
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
CASE SUB-ASSY., FR.
41411-HR6-MF1
|
$115.74 | ||
|
Unavailable |
|||
|
#12
COVER SUB-ASSY., FR. FINAL GEAR
41412-HR4-A21
|
$277.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
JOINT SUB-ASSY., FR.
41500-HR6-MF1
|
$83.55 | ||
|
Unavailable |
|||
|
#14
GEAR, FR. PINION (13T)
41521-HR4-A21
|
$120.44 | ||
|
Available to order. Add to View Price |
|||
|
#15
SLEEVE, FR. FINAL CLUTCH
41527-HR4-A21
|
$24.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, FR. RING (42T)
41531-HR4-A21
|
$145.78 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM A, DIFFERENTIAL CASE (0.60)
41540-HR4-A21
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM B, DIFFERENTIAL CASE (0.65)
41541-HR4-A21
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM C, DIFFERENTIAL CASE (0.70)
41542-HR4-A21
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM D, DIFFERENTIAL CASE (0.75)
41543-HR4-A21
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM E, DIFFERENTIAL CASE (0.80)
41544-HR4-A21
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM F, DIFFERENTIAL CASE (0.85)
41545-HR4-A21
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM G, DIFFERENTIAL CASE (0.90)
41546-HR4-A21
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM H, DIFFERENTIAL CASE (0.95)
41547-HR4-A21
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM I, DIFFERENTIAL CASE (1.00)
41548-HR4-A21
|
$3.07 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM J, DIFFERENTIAL CASE (1.05)
41549-HR4-A21
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM K, DIFFERENTIAL CASE (1.10)
41550-HR4-A21
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM L, DIFFERENTIAL CASE (1.15)
41551-HR4-A21
|
$3.16 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM M, DIFFERENTIAL CASE (1.20)
41552-HR4-A21
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM N, DIFFERENTIAL CASE (1.25)
41553-HR4-A21
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM O, DIFFERENTIAL CASE (1.30)
41554-HR4-A21
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM P, DIFFERENTIAL CASE (1.35)
41555-HR4-A21
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM Q, DIFFERENTIAL CASE (1.40)
41556-HR4-A21
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM R, DIFFERENTIAL CASE (1.45)
41557-HR4-A21
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#18
FORK, FR. FINAL CLUTCH
41560-HR4-A21
|
$45.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHAFT, SCREW
41565-HR4-A21
|
$23.89 | ||
|
Available to order. Add to View Price |
|||
|
#20
SLEEVE, DIFFERENTIAL LOCK
41627-HR4-A21
|
$43.31 | ||
|
Available to order. Add to View Price |
|||
|
#21
FORK, DIFFERENTIAL LOCK
41661-HR4-A21
|
$88.33 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAM, DIFFERENTIAL LOCK
41665-HR4-A21
|
$39.76 | ||
|
Available to order. Add to View Price |
|||
|
#23
SHAFT, DIFFERENTIAL LOCK FORK
41666-HR4-A21
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
ACTUATOR ASSY.
41700-HR4-A21
|
$473.24 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER, FR. SPEED SENSOR
41713-HR3-A60
|
$13.00 | ||
|
Available to order. Add to View Price |
|||
|
#26
DIFFERENTIAL (42T)
42400-HR6-MF1
|
$304.11 | ||
|
Unavailable |
|||
|
#27
FOLLOWER SET, CAM
42440-HN5-671
|
$65.55 | ||
|
Available to order. Add to View Price |
|||
|
#28
SHIM A (1.3)
42451-HN7-003
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#28
SHIM B (1.4)
42452-HN7-003
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#28
SHIM C (1.5)
42453-HN7-003
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#28
SHIM D (1.6)
42454-HN7-003
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#28
SHIM E (1.7)
42455-HN7-003
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#28
SHIM F (1.8)
42456-HN7-003
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#28
SHIM G (1.9)
42457-HN7-003
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPRING, DIFFERENTIAL SIDE CONED
42461-HN5-671
|
$19.29 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT (8X17)
90101-HN8-000
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (8X25)
90102-HR4-A21
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (10X96)
90102-HR6-B00
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, SEALING (8MM)
90109-371-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (10X66)
90182-MB2-003
|
$11.16 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, LOCK (60MM)
90244-HA0-000
|
$43.25 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER (8MM)
90471-580-000
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
CIRCLIP (OUTER) (45MM)
90651-HR4-A21
|
$1.24 | ||
|
Available to order. Add to View Price |
|||
|
#39
CIRCLIP (INNER) (68MM)
90652-HR4-A21
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#40
CIRCLIP (OUTER) (17MM)
90653-HR4-A21
|
$0.22 | ||
|
Available to order. Add to View Price |
|||
|
#41
CIRCLIP (INNER) (35MM)
90654-HR4-A21
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#42
CLIP, NEEDLE THRUST BEARING (12MM)
91012-KF0-000
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#43
BEARING, RADIAL BALL (32X58X13)
91051-HR4-A21
|
$13.75 | ||
|
Available to order. Add to View Price |
|||
|
#44
BEARING, RADIAL BALL (32X28X13)
91052-HR4-A21
|
$13.75 | ||
|
Available to order. Add to View Price |
|||
|
#45
BEARING, RADIAL BALL (45X68X12)
91053-HR4-A21
|
$24.69 | ||
|
Available to order. Add to View Price |
|||
|
#46
BEARING, RADIAL BALL (17X35X10)
91054-HR4-A21
|
$6.40 | ||
|
Available to order. Add to View Price |
|||
|
#47
BEARING, NEEDLE (12X18X12)
91055-HR4-A21
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#48
PIN, DOWEL (5MM)
91151-HR4-A21
|
$0.36 | ||
|
Available to order. Add to View Price |
|||
|
#49
DUST SEAL
91251-HR6-MF1
|
$6.36 | ||
|
Unavailable |
|||
|
#50
OIL SEAL (22X48X7) (ARAI)
91252-HC5-003
|
$11.36 | ||
|
Available to order. Add to View Price |
|||
|
#51
O-RING (30.8MM) (Honda Code 0001065)
91302-001-020
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#52
BAND, BOOT (D27)
91302-HM7-A00
|
$9.96 | ||
|
Available to order. Add to View Price |
|||
|
#53
SEAL, PROPELLER
91302-HN5-671
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#54
SEAL B, RUBBER
91303-HM7-003
|
$11.09 | ||
|
Available to order. Add to View Price |
|||
|
#55
BAND, BOOT (D20)
91303-HM7-A00
|
$9.96 | ||
|
Available to order. Add to View Price |
|||
|
#56
O-RING (14.8X2.4) (ARAI)
91303-KF0-003
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#57
O-RING (18.5X2.4) (ARAI)
91311-MB0-003
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#58
O-RING (38MM)
91351-HR4-A21
|
$8.04 | ||
|
Available to order. Add to View Price |
|||
|
#59
CLIP, TUBE (C6.5)
95002-35000
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#60
BULK HOSE, VACUUM (3.5X1000) (3.5X860) (BULK HOSE: 95005-35001-30M)
95005-35001-30M
|
$10.45 | ||
|
Available to order. Add to View Price |
|||
|
#61
BOLT, FLANGE (6X20)
95701-06020-08
|
$0.40 | ||
|
Unavailable |
|||
|
#62
BOLT, FLANGE (6X16)
96001-06016-07
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
