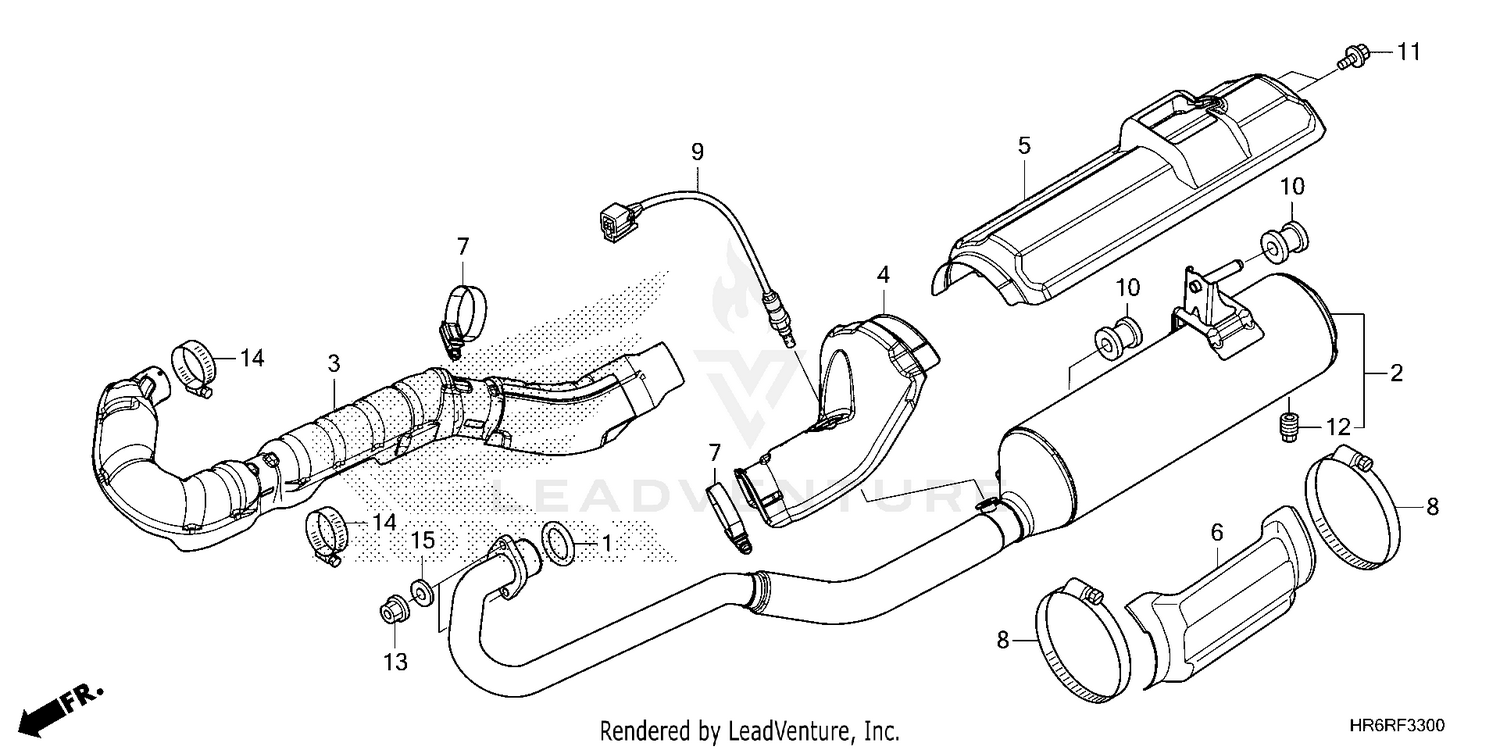

Exhaust Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, EX. PIPE
18291-MV9-000
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
MUFFLER
18300-HR6-MP0
|
$458.31 | ||
|
Unavailable |
|||
|
#3
COVER, EX. PIPE
18321-HR6-A60
|
$61.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, FR. MUFFLER
18322-HR6-A60
|
$33.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, MUFFLER
18323-HR6-A60
|
$37.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, MUFFLER (LOWER)
18324-HR3-A20
|
$28.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND, HEAT PROTECTOR (57)
18329-HP0-A00
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, MUFFLER COVER (89-140MM)
19084-HR6-B00
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
SENSOR, OXYGEN (NGK)
36531-HR3-A22
|
$78.27 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, MUFFLER MOUNTING
50608-HR0-F00
|
$13.87 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X10)
90101-KCE-000
Superseded by 96001-06010-07
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X10)
96001-06010-07
|
$1.70 | ||
|
Unavailable |
|||
|
#12
BOLT, ARRESTER
90183-HM5-850
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, FLANGE (8MM)
90301-HM8-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND, AIR CLEANER CONNECTING TUBE (38)
90638-HN7-000
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN (8MM)
94101-08800
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
